AD125S

A small, and fast sheet-fed scanner ideal for front office document scanning

The Avision AD125S is a small, fast, and color sheet-fed scanner designed for desktop use that scans single-sided documents at speeds up to 50 images per minute. With its high performance and small footprint, the Avision AD125S is an ideal choice for your front office document scanning

Product Details






▍Advanced imaging

Despite its compact size, the Avision AD125S is ready to scan full-color single-sided originals at a high speed of up to 25 ppm thanks to the advanced 50-sheet auto document feeder. Every AD125S model is equipped with a CCD sensor for high quality scans, and a 50-sheet capacity of the ADF for efficient batch scans.

▍Easy to scan with a push of a button

With Avision’s newly developed software application- Button Manager V2, the scanner allows you to complete your scan with a push of the Scan button and send the scanned image to a specified destination including e-mail, printer, image editing software application, or even a cloud server such as Google Drive or Microsoft SharePoint.

▍Scan rate up to 25 ppm

The AD125S delivers fast scan rates of 25 pages per minutes in simplex mode at 200 dpi in color mode, providing a truly breathtaking digitalizing experience.

▍Reliable paper handling

A robust 50 page Automatic Document Feeder with a 4,000 pages per day duty enable the Avision AD125S to be used in any application requiring frequent document scanning.




▎Certification mark

Learn more

Specification

General Specification
Technology

Charged-Coupled Device ( CCD )

Light Source

LED

Document feeding mode

ADF

Optical Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

308 x 446 x 329 mm ( 12.1 x 17.6 x 13 in. )

Weight

2.34 kg

Interface

USB 2.0, ( USB 3.0 compatible )

Power Consumption

Operation : < 11.8 W;Ready : < 7.3 W;Sleep : < 2.1 W

Acoustical Noise

Operation < 55 dB;Ready < 45 dB

Recommended Daily Volume

Up to 4,000 pages

OS Support

Win 7, Win 8, Win 10

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan

Features
Long Paper Mode

up to 300 dpi Color simplex / Duplex ( 118 in. )

Scan Size
ADF Minimum

50 x 63.5 mm ( 2 x 2.5 in. )

ADF Maximum

216 x 356 mm ( Legal )( 8.5 x 14 in. )

ADF Capacity

50 sheets

Paper Weight (Thickness )

34 ~ 127 g/m² ( 9 to 34 lb. )

Scanning Speed
B/W @ 200dpi, A4

Simplex / Duplex : 25 ppm

B/W @ 300dpi, A4

Simplex / Duplex : 20 ppm

Color @ 200dpi, A4

Simplex / Duplex : 25 ppm

Color @ 300dpi, A4

Simplex / Duplex : 20 ppm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

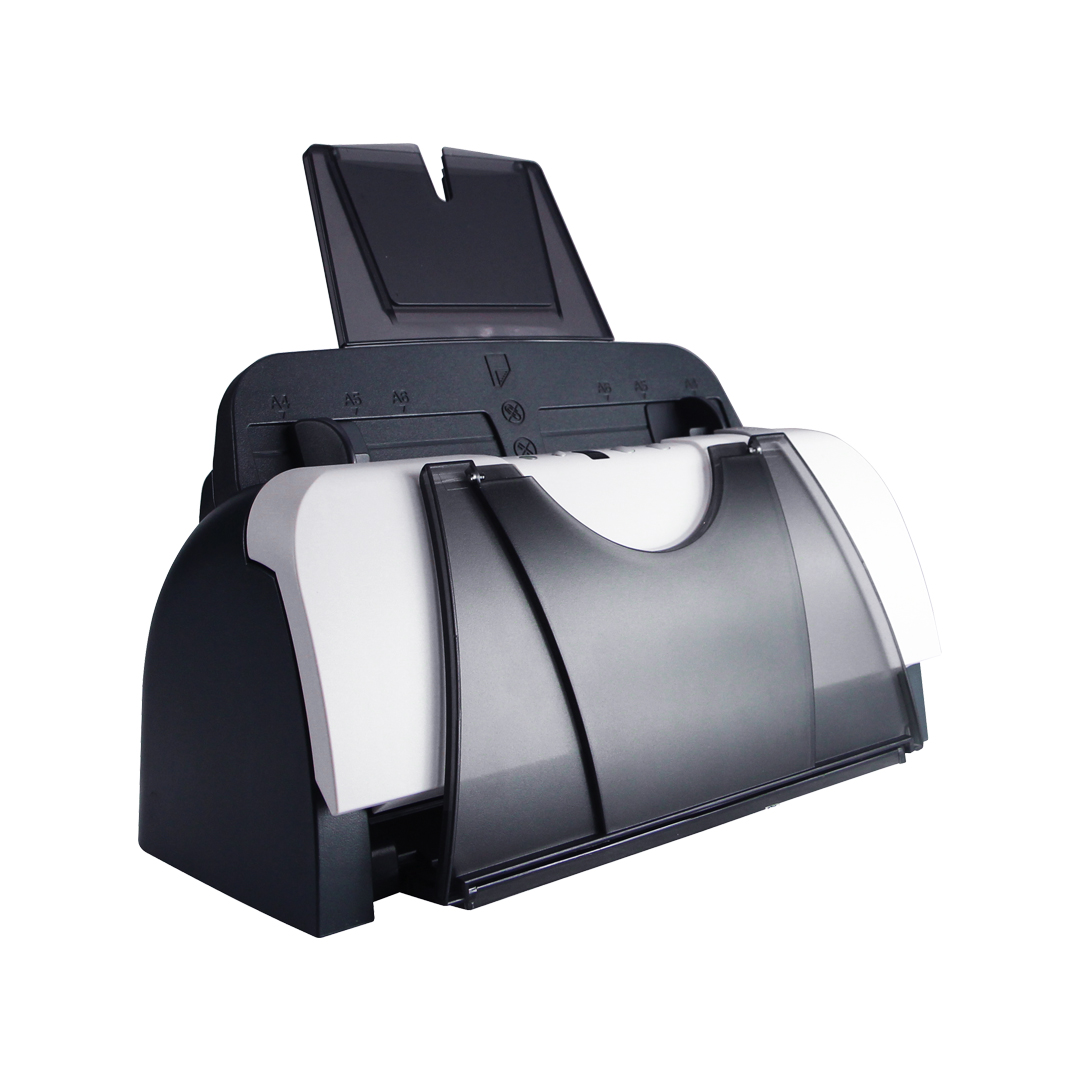

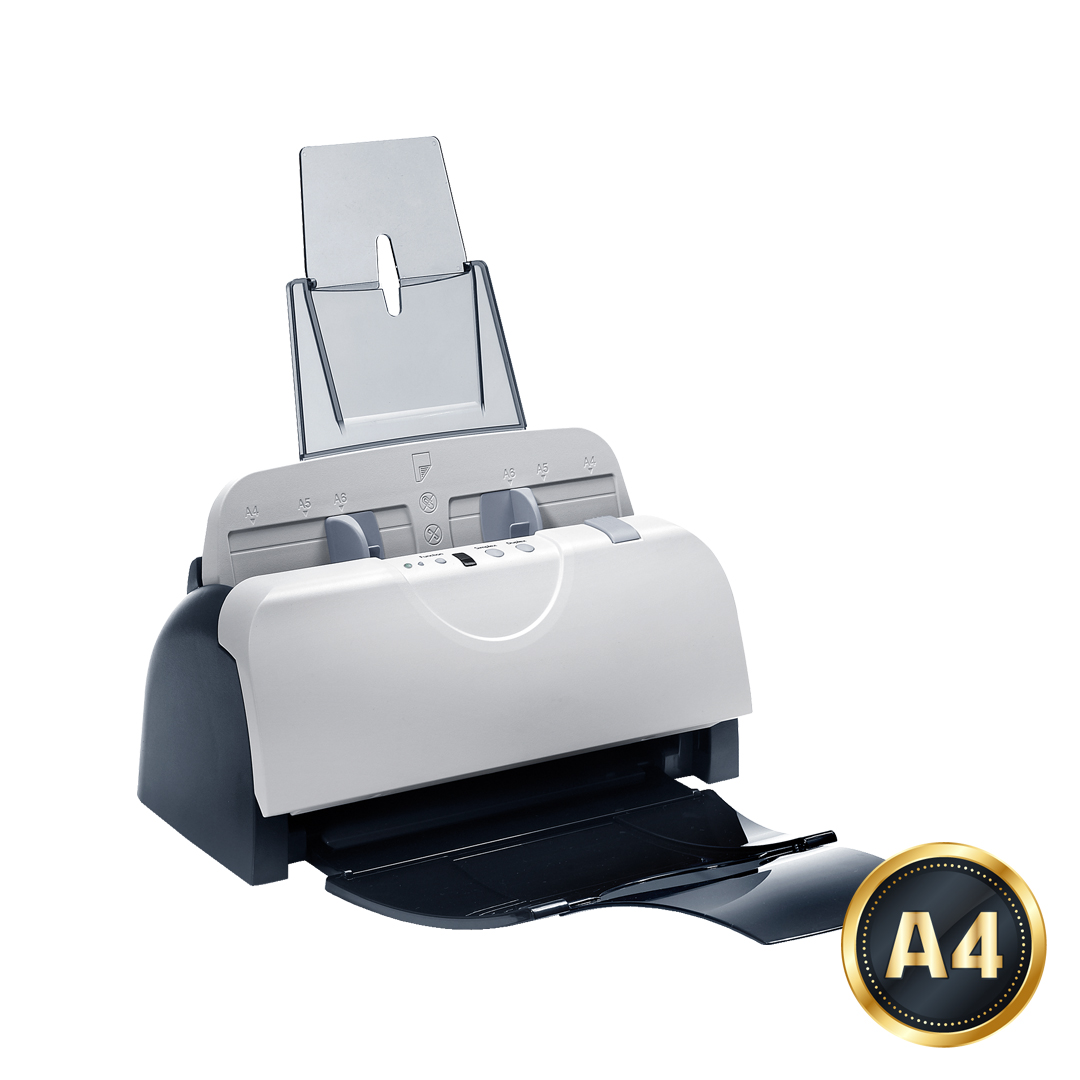

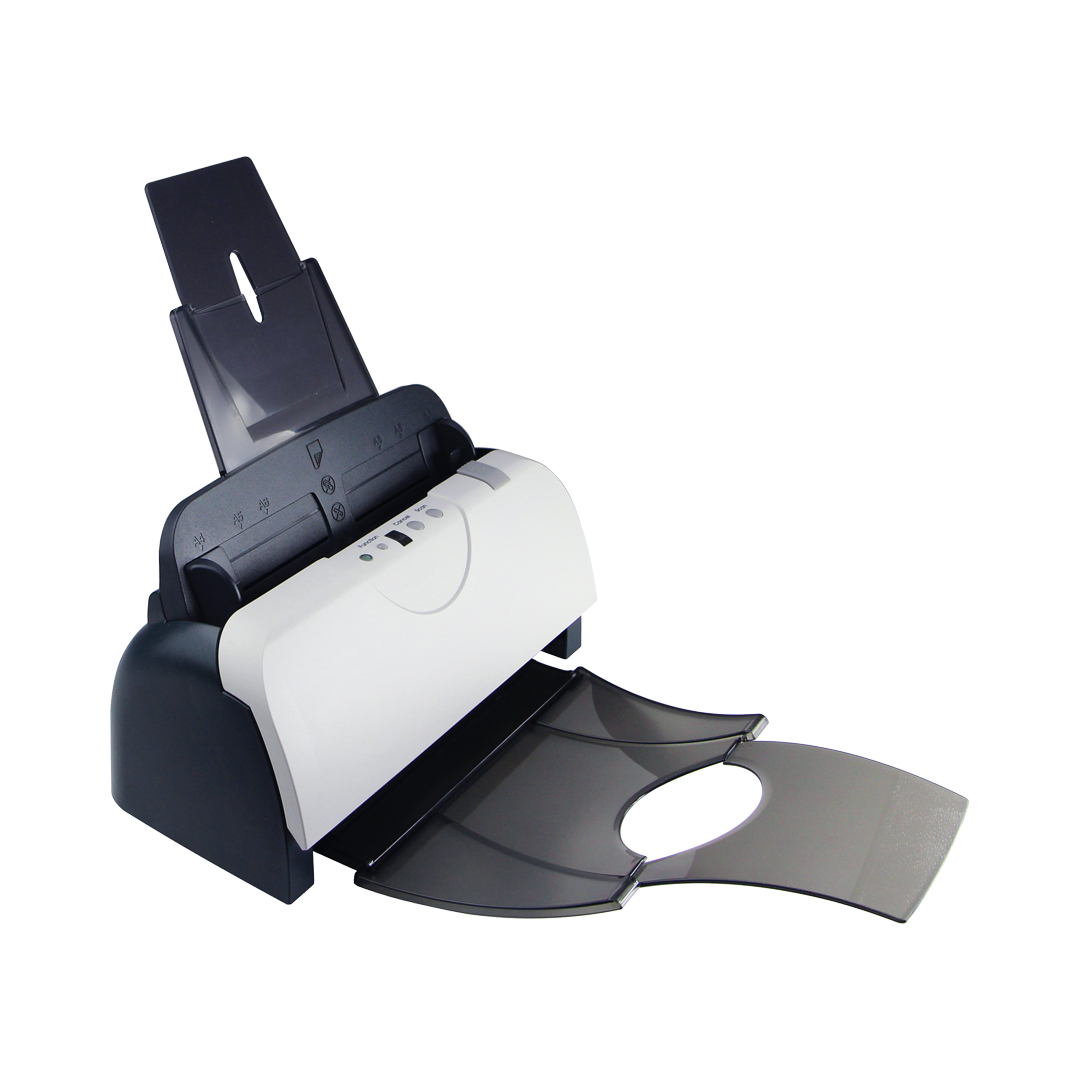

▎Product Photos

200
High resolution Medium resolution Low resolution
13.07 MB 431.00 KB 136.19 KB
DownloadDownloadDownload

▎Brochure

NameVersionSizeLink
AD125SEnglish282.14 KBDownload
AD125S繁體中文352.14 KBDownload
AD125S简体中文336.80 KBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10Download
World Card TeamV3.0.0.0(WCT)235 MBWin XP / 7 / 8 / 10Download
ButtonManager V2V3.0.0.0595 MBWin XP / Vista / 7 / 8 / 10Download
AVScan XV1.2.0.0549.39 MBwin XP / Vista / 7 / 8 / 10Download

▎Drivers

NameVersionSizeOS SupportLink
AD125SVB.2027.38 MBWin XP, Win Vista, Win 7, Win Download

▎Software

  • When I choose optical resolution to be 600 dpi, the “auto crop” and “deskew” functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform “auto crop” and “deskew” functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • ▎Instruction

  • Paper becomes skewed in the scanner.

    1. Align the document guides to fit the documents as closely as possibly and place the documents so that they feed in straight.

    2. Check the condition of the feeding roller. If necessary, follow the cleaning directions and perform the cleaning.

  • ▎Hardware Related

  • Paper becomes jammed during scanning.

    1. Open the front door.

    2. Pull out the jammed paper carefully.

    3. Close the front door.
