AD215L

Your portable solution for batches scanning

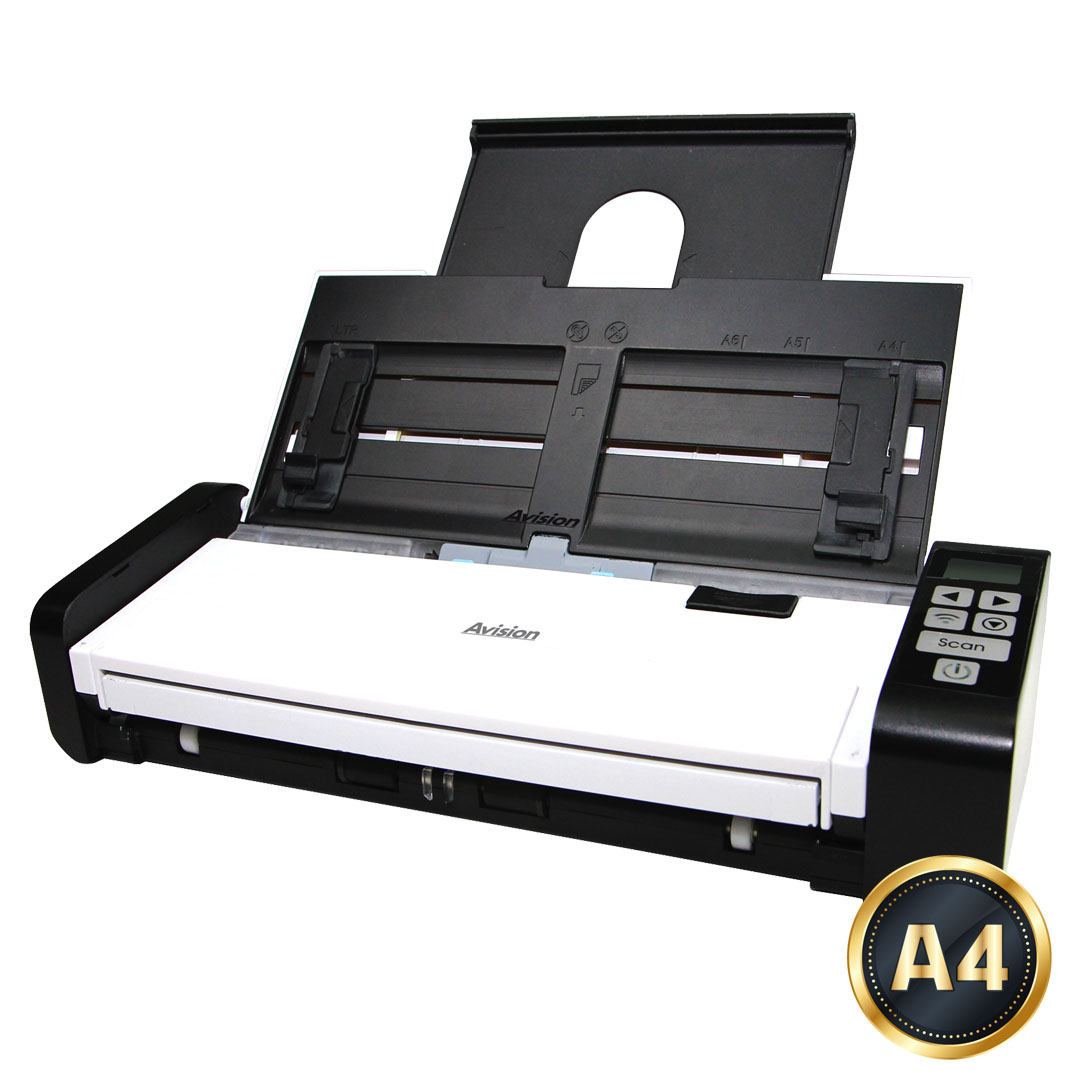

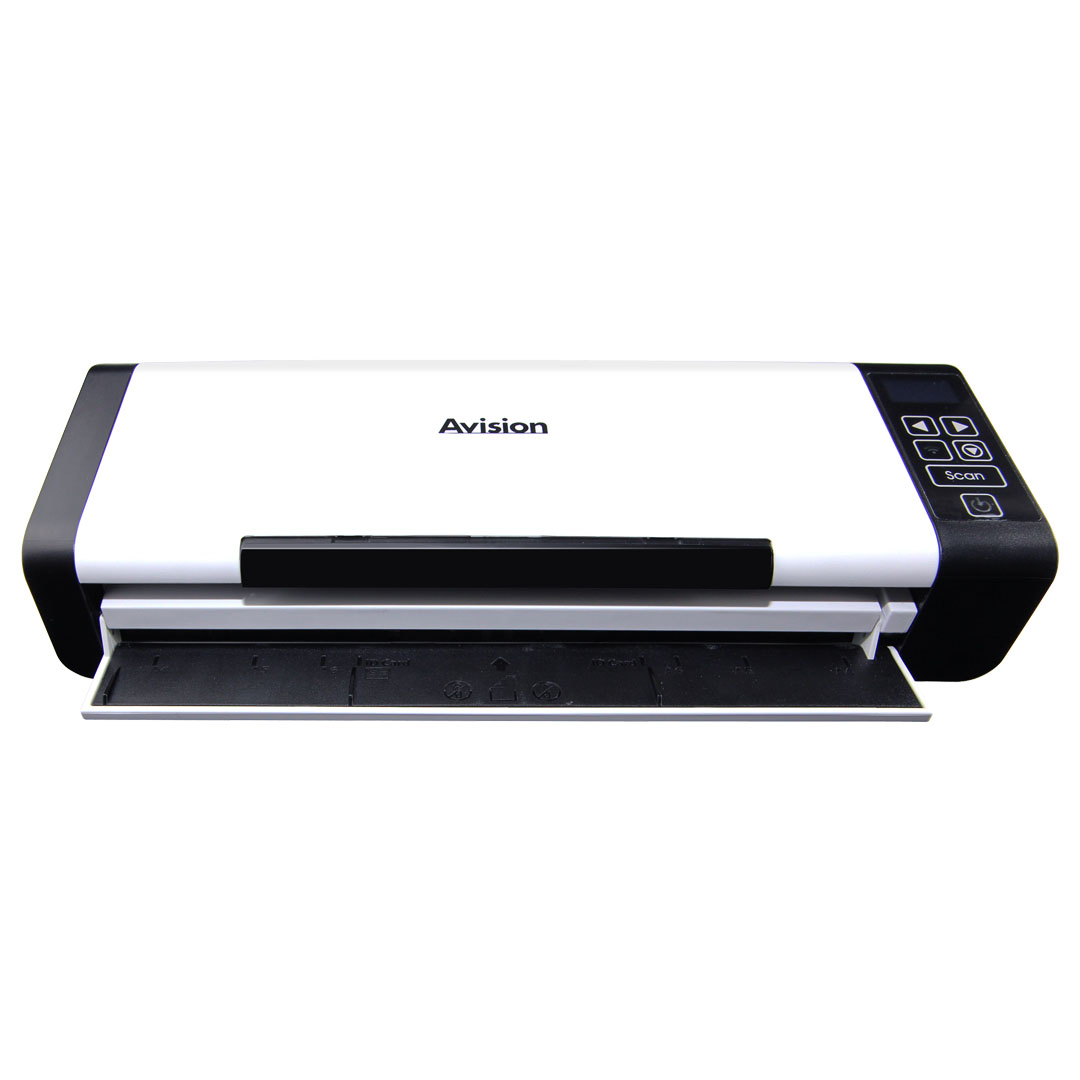

At 11.8 inches long and weighting only 1400 grams, the Avision AD215L incorporate a built-in automatic document feeder ( ADF ) and card scanner in a compact unit. With the innovative design of fordable ADF and front tray, the AD215L is easy to travel with and lets you bring productivity of batches scanning to any workplace.

Product Details






▍Productive and Flexible

The AD215L is productive at scan rate of up to 20 ppm and 40 ipm through the built-in 20-page auto document feeder and accommodate document up 14”. To capture high quality card image, the AD215L also include special front tray to handle plastic ID cards, driver licenses, and even embossed cards up to 1.25 mm or paper up to legal size (8.5 x 14 in.) and weight between 27 and 120 g/m2. To make flexible use of your working space, your single-page document or cards can be loaded either in the front tray and they can also be ejected either in the same or the opposite side of the feeder.

▍Easy to scan with a press of a button

With Avision’s newly developed software application – Button Manager V2, the AD215L scans both sides of a page directly to PDF, searchable PDF, JPEG, or to office applications like Word or Excel® with a press of a button. The AD215L automatically recognizes the size of each document, detects and straightens for skew, and shows images in their proper orientation. Plus, the scanned image can be sent directly to your specified destination including e-mail, printer, image editing software application, or even a cloud server such as Google Drive or Microsoft SharePoint.

▍What we have bundled

The Avision AD215L comes with TWAIN and ISIS drivers, and is bundled with a suite of powerful software applications that include Avision Button Manager V2, AVScan X, and Nuance PaperPort SE 14. With Button Manager V2, you can create searchable PDFs, scan and send images to e-mail, printer, or other destinations with a simple press of the Scan button. The AVScan X and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.



▍Features

  • Fast scan rate up to 20 pages per minute and 40 images per minute
  • 20-page Auto Document Feeder (27 and 120 g/m2)
  • Front and Rear Feeder to accept embossed card up to 1.25 mm and paper up to legal size and weight between 27 and 413 g/m2
  • Auto crop and straighten a skew document
  • Press and scan to cloud servers via the bundled software Button Manager V2
  • Press and paste your scanned image directly to your text editor via the bundled software Button Manager V2
  • Earth-friendly LED technology
  • Long page scanning: 118” ( <300 dpi,  color )
  • Auto power off setting




▎Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Document feeding mode

ADF

Optical Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

299 x 104 x 74 mm

Weight

1.4 kg (3 lb.)

Interface

USB 2.0, ( USB 3.0 compatible )

Wi-Fi standard

No

Power Consumption

Operation : < 9.12 W;Ready : < 5.88 W;Sleep : < 2.51 W;Off : < 0.42 W

Acoustical Noise

Operation < 55 dB;Ready < 45 dB

Recommended Daily Volume

Up to1,000 pages

OS Support

WIN XP, Vista, Win 7, Win 8, Win 10

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan

Features
Ultrasonic paper jam detection

No

Long Paper Mode

Up to 300 dpi Color Duplex 118 inch ( 3000 mm )

Card Scan

Embossed card ( Thickness 1.25 mm )

Scan Size
ADF Minimum

70 x 70 mm

ADF Maximum

216 x 356 mm ( Legal )( 8.5 x 14 in. )

ADF Capacity

20 sheets

Paper Weight (Thickness )

ADF:27 ~ 120 g/m²;Front :27 ~ 413 g/m² ( 7 to 110 lb. )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 20 ppm;Duplex : 40 ipm

B/W @ 300dpi, A4

Simplex : 15 ppm;Duplex : 30 ipm

Color @ 200dpi, A4

Simplex : 20 ppm;Duplex : 40 ipm

Color @ 300dpi, A4

Simplex : 15 ppm;Duplex : 30 ipm, Simplex : 8 ppm ; Duplex : 16 ipm ( USB Bus Power )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Product Photos

200
High resolution Medium resolution Low resolution
17.85 MB 487.18 KB 180.95 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AD215LРусский4.40 MBDownload
AD215LPortuguês3.88 MBDownload
AD215LPolski4.26 MBDownload
AD215L한국어4.01 MBDownload
AD215L日本語4.26 MBDownload
AD215LItaliano4.03 MBDownload
AD215Lעברית5.10 MBDownload
AD215LFrançais3.83 MBDownload
AD215LEspañol4.01 MBDownload
AD215LEnglish3.97 MBDownload
AD215LDeutsch3.70 MBDownload
AD215L繁體中文4.10 MBDownload
AD215L简体中文4.09 MBDownload

▎Brochure

NameVersionSizeLink
AD215L繁體中文528.16 KBDownload
AD215LEspañol329.41 KBDownload
AD215L簡体中文616.38 KBDownload
AD215LPortuguese408.47 KBDownload
AD215LEnglish361.54 KBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10Download
World Card TeamV3.0.0.0(WCT)235 MBWin XP / 7 / 8 / 10Download
ButtonManager V2V3.0.0.0595 MBWin XP / Vista / 7 / 8 / 10Download
AVScan XV1.2.0.0549.39 MBwin XP / Vista / 7 / 8 / 10Download

▎Drivers

NameVersionSizeOS SupportLink
AD215LVB.22139.55 MBWin XP, Win Vista, Win 7, Win Download

▎Software

  • When I choose optical resolution to be 600 dpi, the "auto crop" and "deskew" functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform "auto crop" and "deskew" functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • ▎Instruction

  • Paper becomes skewed in the scanner.

    1. Align the document guides to fit the documents as closely as possibly and place the documents so that they feed in straight.

    2. Check the condition of the feeding roller. If necessary, follow the cleaning directions and perform the cleaning.

  • ▎Hardware Related

  • Paper becomes jammed or multi-fed.

    1. Flatten the corners and edges of your documents.

    2. Thoroughly fan your documents before loading them into the scanner. Document might stick together because of static electricity.

    3. Reduce the number of pages that you load into the scanner at one time.
