AD8100

AD8100 A Duplex High-Volume Production Scanner

Avision is pleased to announce its release of the high-volume production scanner with a robust 500-page auto document feeder and a blazing scanning speed of up to 100 ppm/200 ipm in Color, Grayscale, and Monochrome. Combining paper protection technology and triple ultrasonic double-feed detection capability, the AD8100 delivers exceptional feeding reliability to maximize your scanning productivity in a small unit.

Product Details






▍High-Volume Daily Duty Cycle

The scanner can be used to scan up to 60,000 pages per day through the 500-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

▍Dual CIS Design to Handle Wrinkled Documents

Designed to handle even extreme applications, the AD8100 scanner is built-in with two long-lasting lamps. These mercury-free lamps give you maximum illumination to help eliminate shadows from wrinkled documents.

▍Triple Ultrasonic Sensors to Detect Overlapped Paper

Three ultrasonic sensors provide protection against double feeds by detecting and preventing overlapping pages from being fed into the scanner at the same time. Each sensor can be set to ignore or detect specified areas of a document to accommodate pages with labels or attachments.

▍Staple Detection Technology

Avision’s Staple Detection feature automatically stops the scanning process when an unremoved staple is detected. If left undetected, staples could cause errors that compromise the document, cause jams, or damage the device.

▍Plastic card or ID card uses the straight paper path

To provide scanner users with the most versatile scanning environments, the user has the choice to utilize a “Curved or Straight Paper Path”.  By opening the rear cover, users can use the straight path to transport paper to the rear of the unit. To utilize the straight paper path ensures high reliability with plastic card, ID card, thick, long paper, or more fragile documents.

▍A Document Scanner with an Imprinter (Optional)

The AD8100 scanner can be integrated with an imprinter.  The innovative combination allows users to print a sequence number or characters physically on the front side of each page that is being scanned. By printing serial numbers, the scanned data can be tracked, matched and/or indexed with the original document.

▍A Large LCD Display

The AD8100 is easy to use through the clear 1.8” LCD display. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

▍Scan to Cloud with Button Manager

The AD8100 come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager , AVScan , and PaperPort . With Button Manager , you can complete a scan and send the image directly to cloud servers such as Google Drive, Dropbox, Evernote, FaceBook, or Microsoft SharePoint with a press of a button. You can also save the image to searchable PDF, JPEG, BMP, or GIF file format, and scan to e-mail, or image editing application. In addition, the bundled software applications also include AVScan  and PaperPort which are are highly effective document management software to streamline your task more efficiently.

▍Features

  • Fast, 100 ppm / 200 ipm scanning in color, grayscale and monochrome  ( 200 dpi )
  • Support form document up to 297 x 432 mm (A3)
  • Robust 500-page automatic document feeder
  • Daily duty cycle of up to 60,000 sheets
  • Three Ultrasonic sensors to enable or disable detection in different areas of  document
  • Staple detection feature
  • Curved or Straight Paper Path
  • Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
  • Latest USB 3.1 Gen 1 connectivity for faster transmission speed
  • Reverse roller technology delivers outstanding feeding reliability
  • Hard and embossed card scanning up to 1.25 mm in thickness in landscape  feeding
  • Press and scan to cloud servers via the bundled software Button Manager
  • Earth-friendly LED technology
  • Long page scanning up to 6000 mm (236”)
  • Auto power off setting






▎Certification mark

Learn more

Specification

General Specification
Technology

Charged-Coupled Device ( CCD )

Light Source

LED

Document feeding mode

ADF

Optical Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Memory Size

1GB

Dimensions (WxDxH)

Maximum:460 x 784 x 362 mm, Minimum:460 x 446 x 362 mm

Weight

25 kg ( 55 lb. )

Interface

USB3.2 Gen1x1

Power Consumption

Operation < 115W;Ready < 24W;Sleep < 2.46W;Off < 0.27W

Acoustical Noise

Operation< 55dB;Ready< 25dB

Recommended Daily Volume

Up to 60,000 pages

OS Support

Win 7, Win 8, Win 10

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver

Features
Ultrasonic paper jam detection

Yes

Long Paper Mode

Up to 200 dpi Color Duplex 236 in. ( 6000 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )

Card Scan

Embossed card ( Thickness 1.25 mm )

Scan Size
ADF Minimum

50 x 65 mm ( Single-pages );50 x 85 mm ( Multi-pages )

ADF Maximum

310 x 432 mm ( 12.2 x 17 in. ) ( A3 )

ADF Capacity

500 sheets ( A4 : 80 g/m² or 20 lb. )

Paper Weight (Thickness )

Straight Path : 27 ~413 g/m² ( 7 – 110 lb. ), U-Turn Path : 27 ~ 105 g/m² ( 7 – 28 lb. )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 100 ppm;Duplex : 200 ipm

B/W @ 300dpi, A4

Simplex : 100 ppm;Duplex : 200 ipm

Color @ 200dpi, A4

Simplex : 100 ppm;Duplex : 200 ipm

Color @ 300dpi, A4

Simplex:80 ppm ; Duplex:160 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

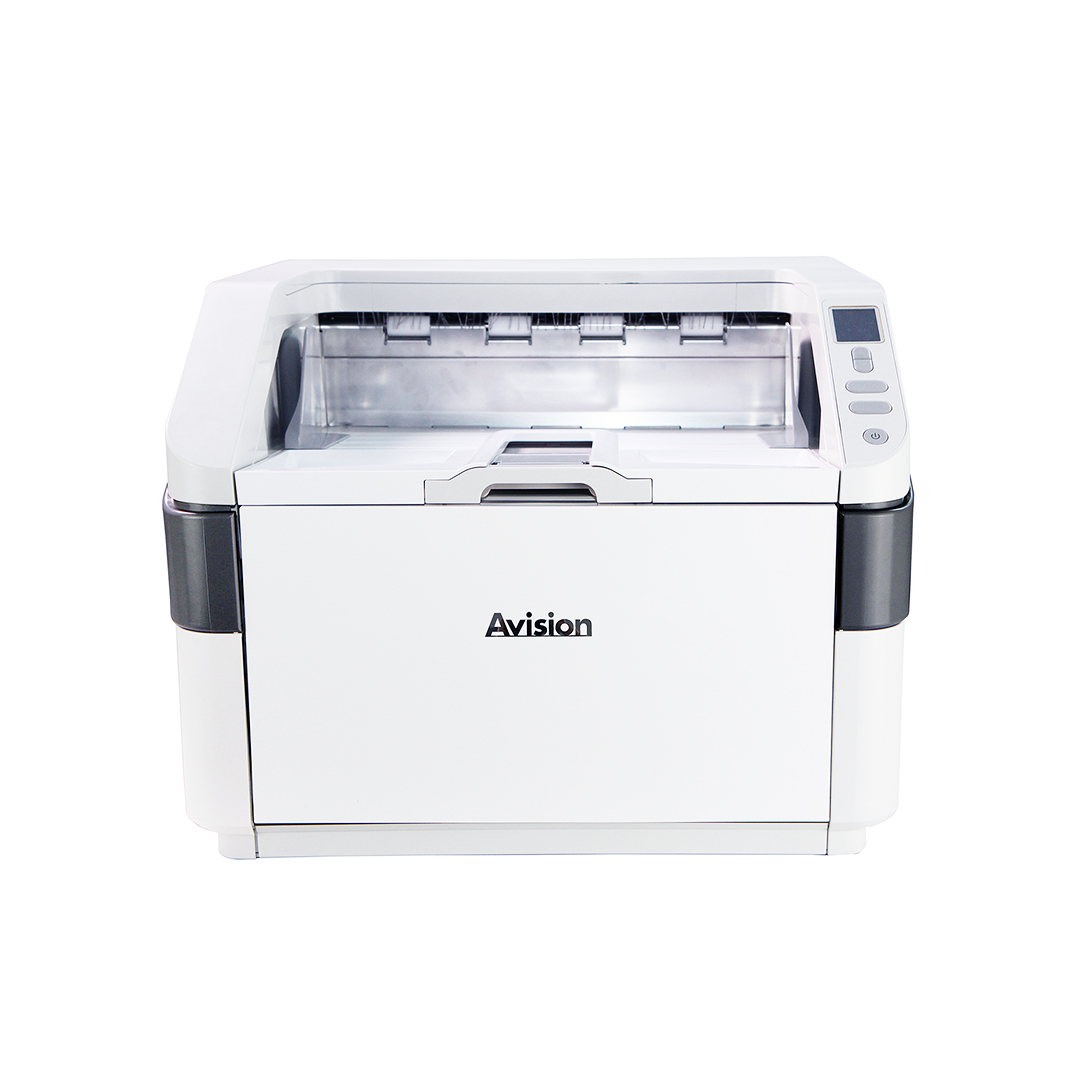

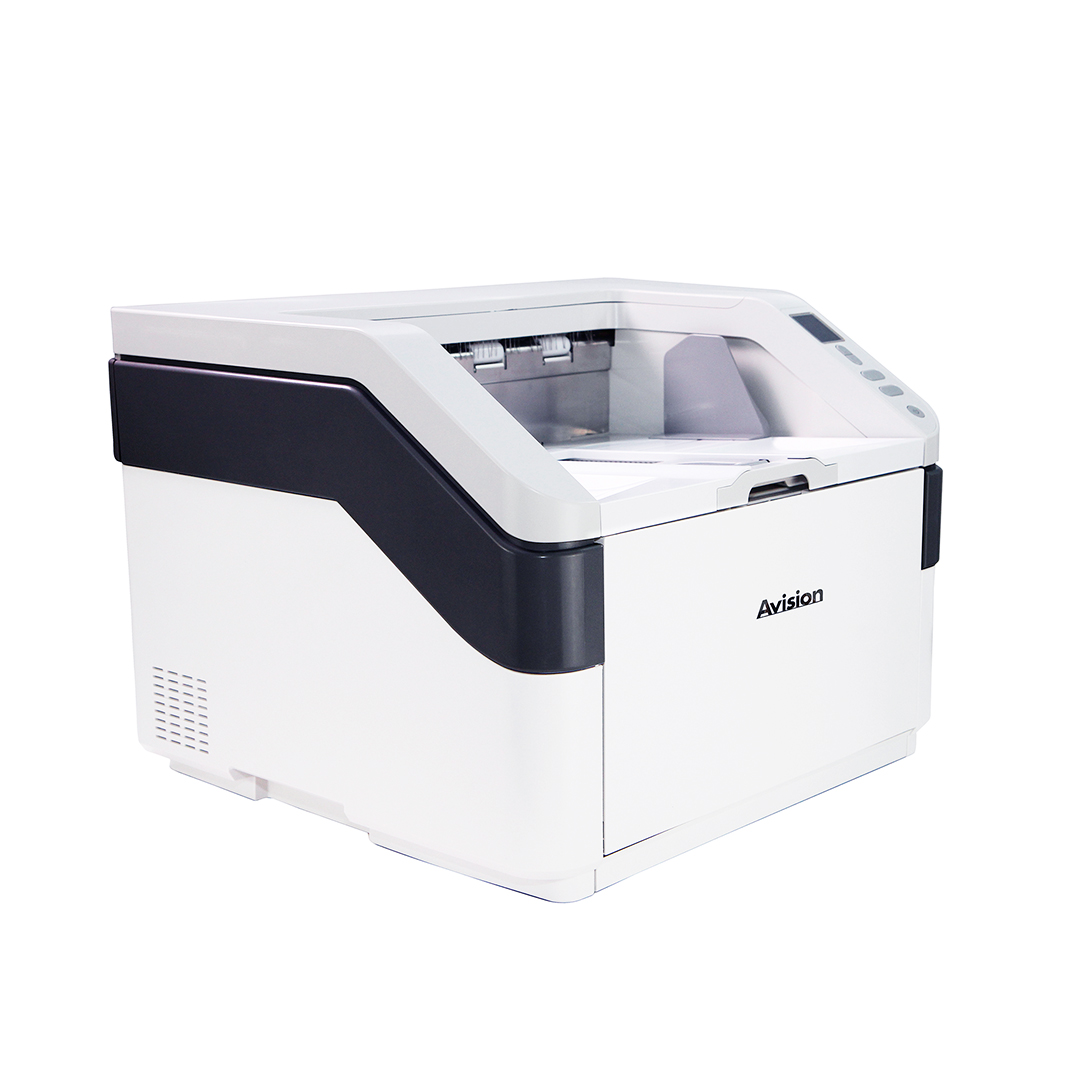

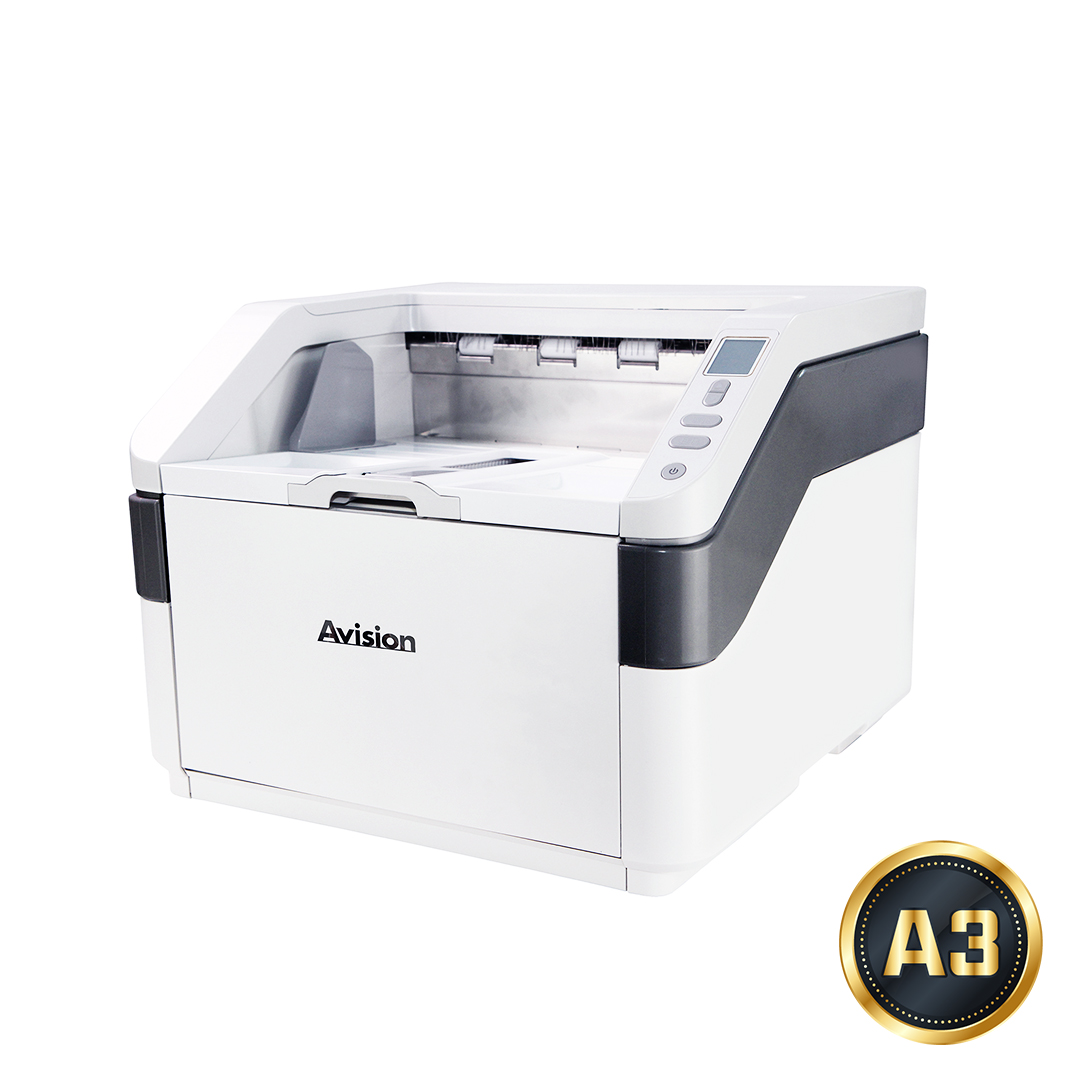

▎Product Photos

200
High resolution Medium resolution Low resolution
16.82 MB 794.05 KB 275.31 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AD8100English5.38 MBDownload

▎Brochure

NameVersionSizeLink
AD8100繁體中文604.70 KBDownload
AD8100English443.81 KBDownload
AD8100简体中文511.76 KBDownload

▎Quick Guide

NameVersionSizeLink
AD8100Multiple Languages1.76 MBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin 7 , Win 8 , Win 10Download
World Card TeamV3.0.0.0(WCT)235 MBWin 7 , Win 8 , Win 10Download
ButtonManager V2V3.0.0.0595 MBWin 7 , Win 8 , Win 10Download
AVScan XV1.2.0.0549.39 MBWin 7 , Win 8 , Win 10Download

▎Software

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • When I choose optical resolution to be 600 dpi, the "auto crop" and "deskew" functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform "auto crop" and "deskew" functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

  • ▎Instruction

  • More than one sheet of paper are fed into the scanner.

    1. Open the scanner front door.

    2. Remove the multi-fed sheets.

    3. Close the front door.

    4. Flatten the corners and edges. Loosen the paper before putting it into the paper guide again.

    5. Check the feeding roller condition. If necessary, follow the cleaning directions and perform the cleaning.

  • When the scanner is powered on, it makes noises and won’t stand ready.

    There are two possibilities:

    1.You might fail to push the scanner shipping lock to its “unlocked” position. If this is the case, pull the scanner status switch to its “unlocked” position first.

    2.The scanner is not placed on an even, flat desktop surface. This may cause the scanner to malfunction.

  • Paper becomes skewed in the scanner.

    1.Use the slide guide to keep the paper path straight.

    2.Check the condition of the feeding roller. If necessary, follow the cleaning directions in User Manual and perform the cleaning.

  • ▎Hardware Related

  • Paper becomes jammed during scanning.

    1. Open the front door.

    2. Pull out the jammed paper carefully.

    3. Close the front door.
