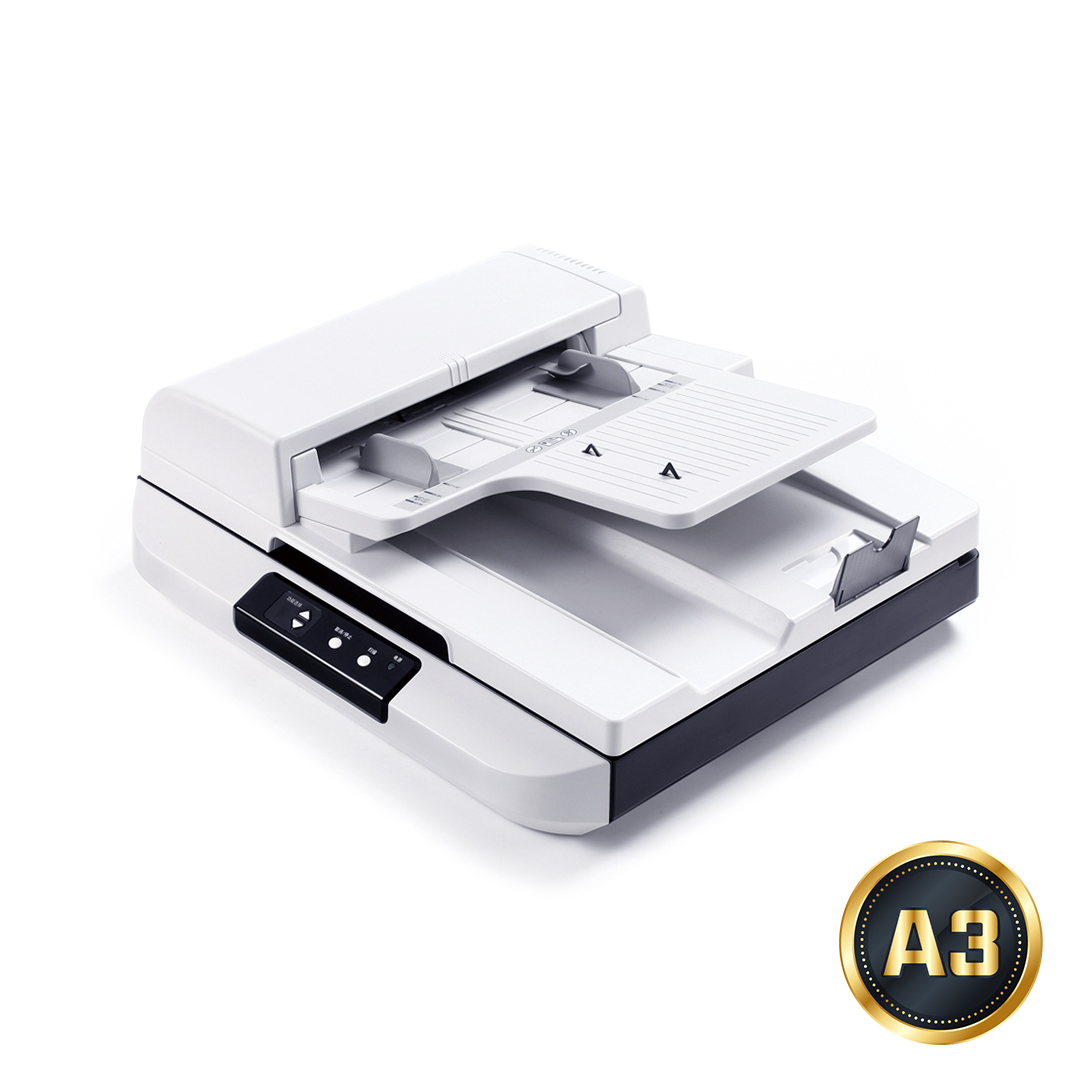

AV5200

A slim A3 duplex scanner

The AV5200 is Avision’s next generation of A3 document scanner. Based on CIS (Contact Image Sensor) technology, the scanner is much more slimmer compared to traditional scanner with CCD design.

Capable of scanning up to A3 size, the slim AV5200 is perfectly suited to scan complete book spreads, two letter-sized pages (simultaneously), large-format magazines, legal-sized documents, photographs and more, all in brilliant color.

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

The Avision AV5200 is a high-speed and high-performance scanner capable of processing A3 sized paper. It is capable of performing duplex scanning and has a USB 2.0 interface . If large amounts of paper need to be processed, the optional auto-document feeder allow you to accommodates a batch of 50-page document to be scanned continually at one time. At a scanning rate of 30 pages per minute in simplex mode and 60 images per minute in duplex mode, the Avision AV5200 is truly a scanning powerhouse to meet all your scanning needs for A3-sized documents.

Product Details






▍Features

  • Ultrasonic multifeed detection
  • Large 11.7″ x 16.5″ scanning area
  • Multiple images cropping
  • 118” ( 300 cm ) long document scanning
  • Easy-to-use button scanning
  • Auto crop, deskew and thresholding image-enhancing features
  • Bundled software applications include Avision Button Manager, Avision AvScan 5.0,ScanSoft PaperPort 11SE




Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

585 x 499 x 195 mm ( 23 x 19.6 x 7.7 in )

Weight

11.7Kg (25.8 lb)

Interface

USB 2.0

Power Consumption

Operation: < 30 W;standby: < 12 W;Power saving: < 5 W

Recommended Daily Volume

Up to 3,000 sheets

OS Support

WIN XP, Vista, Win 7, Win 8

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan

Features
Ultrasonic paper jam detection

Yes

Long Paper Mode

Up to 36 inch (200 dpi);Up to 118 inch (300 dpi @ color simplex)

Scan Size
ADF Minimum

148 x 210 mm ( 5.8 x 8.3 in )

ADF Maximum

297 x 420 mm ( 11.7 x 16.5 in )

ADF Capacity

50 sheets

Paper Weight (Thickness )

60 ~ 105 g/m² ( 16 to 28 lb )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 30 ppm;Duplex : 60 ipm

B/W @ 300dpi, A4

Simplex : 30 ppm;Duplex : 60 ipm

Color @ 200dpi, A4

Simplex : 30 ppm;Duplex : 60 ipm

Color @ 300dpi, A4

Simplex : 30 ppm;Duplex : 60 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Product Photos

200
High resolution Medium resolution Low resolution
2.01 MB 227.07 KB 52.58 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AV5200Português3.35 MBDownload
AV5200한국어3.75 MBDownload
AV5200日本語3.74 MBDownload
AV5200Italiano3.68 MBDownload
AV5200Français3.58 MBDownload
AV5200Español3.52 MBDownload
AV5200English4.58 MBDownload
AV5200繁體中文4.01 MBDownload
AV5200简体中文3.95 MBDownload

▎Brochure

NameVersionSizeLink
AV5200English232.25 KBDownload
AV5200繁體中文456.02 KBDownload
AV5200简体中文360.81 KBDownload

▎Quick Guide

NameVersionSizeLink
AV5200Chinese Simplified3.83 MBDownload
AV5200Chinese Traditional3.94 MBDownload
AV5200Spanish3.84 MBDownload
AV5200Portuguese3.69 MBDownload
AV5200Korean4.50 MBDownload
AV5100Italian3.81 MBDownload
AV5200French3.85 MBDownload
AV5200English3.81 MBDownload
AV5200Japanese4.03 MBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10Download
World Card TeamV3.0.0.0(WCT)235 MBWin XP / 7 / 8 / 10Download
ButtonManager V2V3.0.0.0595 MBWin XP / Vista / 7 / 8 / 10Download
AVScan XV1.2.0.0549.39 MBwin XP / Vista / 7 / 8 / 10Download

▎Drivers

NameVersionSizeOS SupportLink
AV5200VB.2026.38 MBWin XP, Win Vista, Win 7, Win Download

▎Software

  • The scanner works well except for the line art image. The lines in the image seem to be much thicker than the original one.

    Increase the Brightness or adjust the Threshold setting to improve line art image.

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • ▎Instruction

  • More than one sheet of paper are fed into the scanner.

    1. Open the scanner front door.

    2. Remove the multi-fed sheets.

    3. Close the front door.

    4. Flatten the corners and edges. Loosen the paper before putting it into the paper guide again.

    5. Check the feeding roller condition. If necessary, follow the cleaning directions and perform the cleaning.

  • ▎Hardware Related

  • While scanning, the scanner often makes noises, or it scans back and forth.

    Usually this means the memory of your computer is not enough or the speed of your CPU too slow. Please try to increase your memory to at least 32M or replace your CPU with Pentium or later.

  • When the scanner is powered on, it makes noises and won’t stand ready.

    There are two possibilities:

    1.You might fail to push the scanner shipping lock to its “unlocked” position. If this is the case, pull the scanner status switch to its “unlocked” position first.

    2.The scanner is not placed on an even, flat desktop surface. This may cause the scanner to malfunction.

  • Paper becomes jammed during scanning.

    1. Open the front door.

    2. Pull out the jammed paper carefully.

    3. Close the front door.
