AEG-AN335W

AEG-AN335W – Fast, and Affordable Scan Stations

The AEG-AN335W is 40ppm/80ipm Scan Stations those are fast, reliable, and affordable for workgroups in small to mid-sized businesses where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. With ethernet networking capability, the AEG-AN335W improve your business efficiency by offering PC-free scanning to a wide variety of destinations including e-mail, cloud applications (Google Drive™, Evernote®, Dropbox™, Microsoft® OneDrive®, Microsoft® SharePointOnline®), a shared folder (SNB), a FTP server, or even a USB flash drive.

What is best, with Avision’s advanced image processor , the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.



Product Details






▍Easy-to-operate 8” LCD Touch Screen

The large 8” LCD touch screen makes it easy for everyone to scan and share. By assigning your frequently used settings and scan to destinations as Shortcuts, the AEG-AN335W allow you to streamline your workflow and complete your scanning task in one step. Configuration and management of the scanner can also be performed via the LCD touch screen.

Mobile scanning via Wi-Fi connection

With a Wi-Fi dongle, the AEG-AN335W can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s App.

Convenient walk-up scanning

A USB direct interface is available for scanning files to your USB flash memory drive.

A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (70 x 52 mm/2.75” x 2”) to business document (216 x 356 mm/8.5 x 14 in.). The auto document feeder is also robust enough to feed paper from 50 to 433 g/m2 (12~115 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness.

Friction Roller Enhances Feeding Reliability

Designed with the innovative friction roller for advanced paper separation capability, the AEG-AN335W deliver outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

Powerful Bundled Software Applications

The AEG-AN335W come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort . With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

▍Features

  • Fast, 40ppm /80 ipm scanning in color, grayscale and monochrome
  • Scanning and sending images to e-mail, a shared folder (SMB), a FTP folder, cloud servers (Google Drive, Dropbox, Evernote), a USB flash drive, and the product’s memory
  • Support form paper up to 216 x 356 mm (8.5 x 14 in.)
  • Offer preview feature to view your image result before distributing
  • Daily duty cycle up to 4,000 sheets
  • Robust 50-page automatic document feeder (75 g/m2, 20 lb)
  • Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
  • Friction roller technology delivers outstanding feeding reliability
  • Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
  • Press and scan to cloud servers via the bundled software Button Manager
  • Earth-friendly LED technology
  • Long page scanning: <236” (200 dpi)/<218” (300 dpi)/<59” (600 dpi)
  • Auto power off setting




Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Resolution (dpi)

600 x 600 dpi

Output Resolution (dpi)

1200 x 1200 dpi

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Memory Size

2G SDRAM

Dimensions (WxDxH)

Maximum:282 x 457 x 334 mm (11 x 18 x 13.15 in), Minimum:282 x152 x 165 mm ( 11 x 5.98 x 6.49 in)

Weight

3.1Kg

Interface

USB3.2 Gen1x1

Network connection

RJ-45 Ethernet 10/100/1000 Mb, Wi-Fi

Wi-Fi standard

IEEE 802.1b/g/n

Power Consumption

Operation < 21W;Ready < 10 W;Sleep < 2.4 W;Off < 0.3 W

Acoustical Noise

Operation< 55dB;Ready< 25dB

Recommended Daily Volume

Up to 4,000 pages

OS Support

Win 7, Win 8, Win 10, Win11

Bundled Software

Button Manager, PaperPort, AVScan

Features
Ultrasonic paper jam detection

Yes

Long Paper Mode

Up to 200 dpi Color Duplex 236 in. ( 6000 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )

Card Scan

Embossed card ( Thickness 1.25 mm )

Scan Size
ADF Minimum

52 x 70 mm ( 2.0 x 2.75 in)

ADF Maximum

216 x 356 mm ( Legal )( 8.5 x 14 in. )

ADF Capacity

50 sheets

Paper Weight (Thickness )

50g ~ 433 g/m² ( 12 to 115 lb )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 40 ppm;Duplex : 80 ipm

B/W @ 300dpi, A4

Simplex : 35 ppm;Duplex : 70 ipm

Color @ 200dpi, A4

Simplex : 40 ppm;Duplex : 80 ipm

Color @ 300dpi, A4

Simplex : 35 ppm;Duplex : 70 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

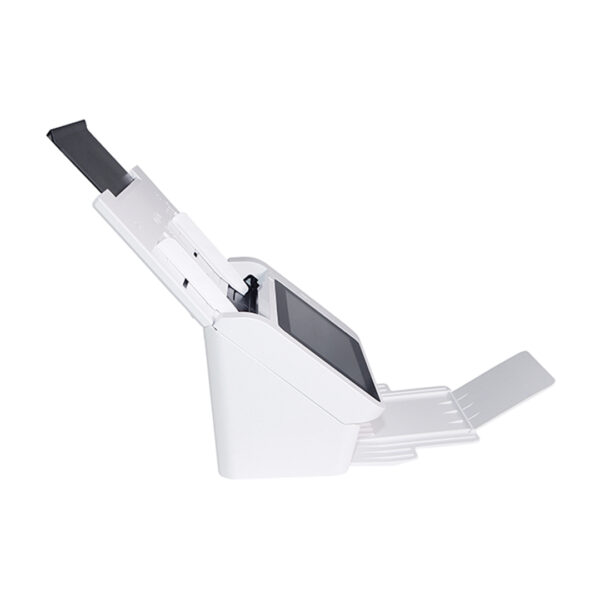

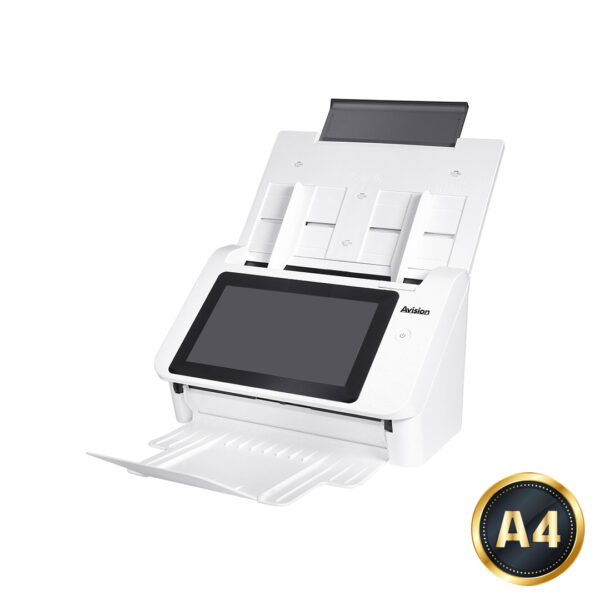

▎Product Photos

200
High resolution Medium resolution Low resolution
17.52 MB 206.47 KB 206.47 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AEG-AN335WDeutsch8.28 MBDownload
AEG-AN335WEnglish8.08 MBDownload

▎Brochure

NameVersionSizeLink
AEG-AN335WDeutsch608.09 KBDownload
AEG-AN335WEnglish397.91 KBDownload

▎Quick Guide

NameVersionSizeLink
AEG-AN335WMultiple Languages1.21 MBDownload
AEG-AN335WMultiple Languages949.79 KBDownload

▎Software

NameVersionSizeOS SupportLink
Virtual Scanner Link2023011758.12 MBWin 7 , Win 8 , Win 10 , Win 11Download
PaperPort14455.79 MBWin 7 , Win 8 , Win 10 , Win 11Download
World Card TeamV3.0.0.0(WCT)235 MBWin 7 , Win 8 , Win 10 , Win 11Download
AVScan X1.2.1.1549.70 MBWin 7 , Win 8 , Win 10 , Win 11Download
×
×
