AN230W

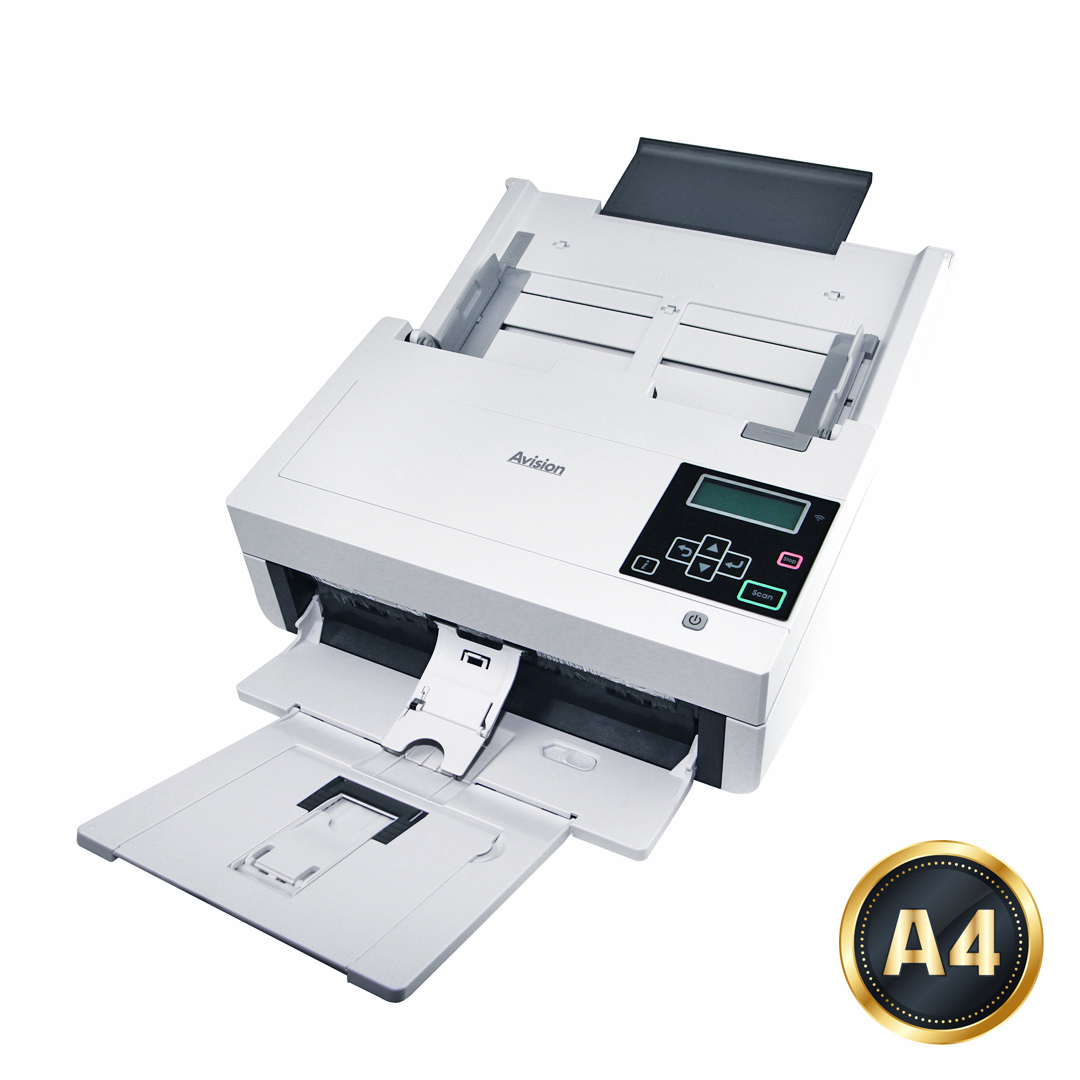

AN230W A Fast, and Affordable Network Scanner

The AN230W is a 40 page-per-minute, duplex scanner that is fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. With wired and wireless networking capabilities, the AN230W offers network scanning to e-mails, a shared folder (CIFS) and a FTP server, as well as mobile scanning through Avision’s App.



Product Details






Convenient mobile scanning

Built-in with a Wi-Fi dongle, the AN230W can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s App.

Support form document up to 242 x 356 mm ( 9.5 x 14 in. )

The AN230W boasts a unique and innovative design in comparison with its predecessors – the ability to accommodate form document up to 242 x 356 mm ( 9.5 x 14 in. ). The extended document width from standard 216 mm ( 8.5 in. ) to 242 mm ( 9.5 in. ) makes the AN230W more competitive to fit for a wider range of documents.

Convenient walk-up scanning

A USB direct interface is available for scanning files to your USB flash memory drive.

A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (74 x 50 mm/2.9” x 2”) to business document (216 x 356 mm/8.5 x 14 in.). The auto document feeder is also robust enough to feed paper from 27 to 413 g/m2 (7~110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness.

▍Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AN230W delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

▍Compact Design to Save Your Space

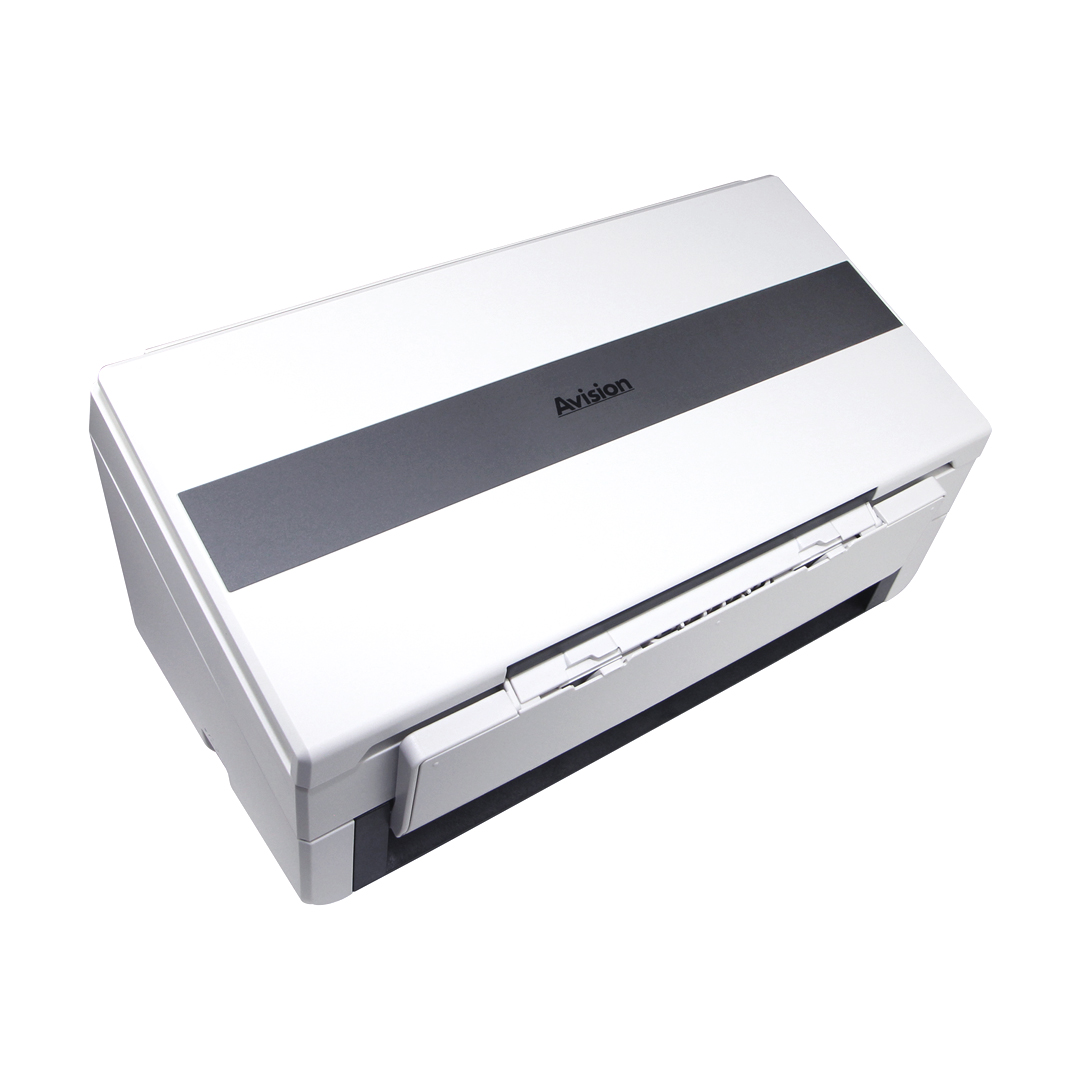

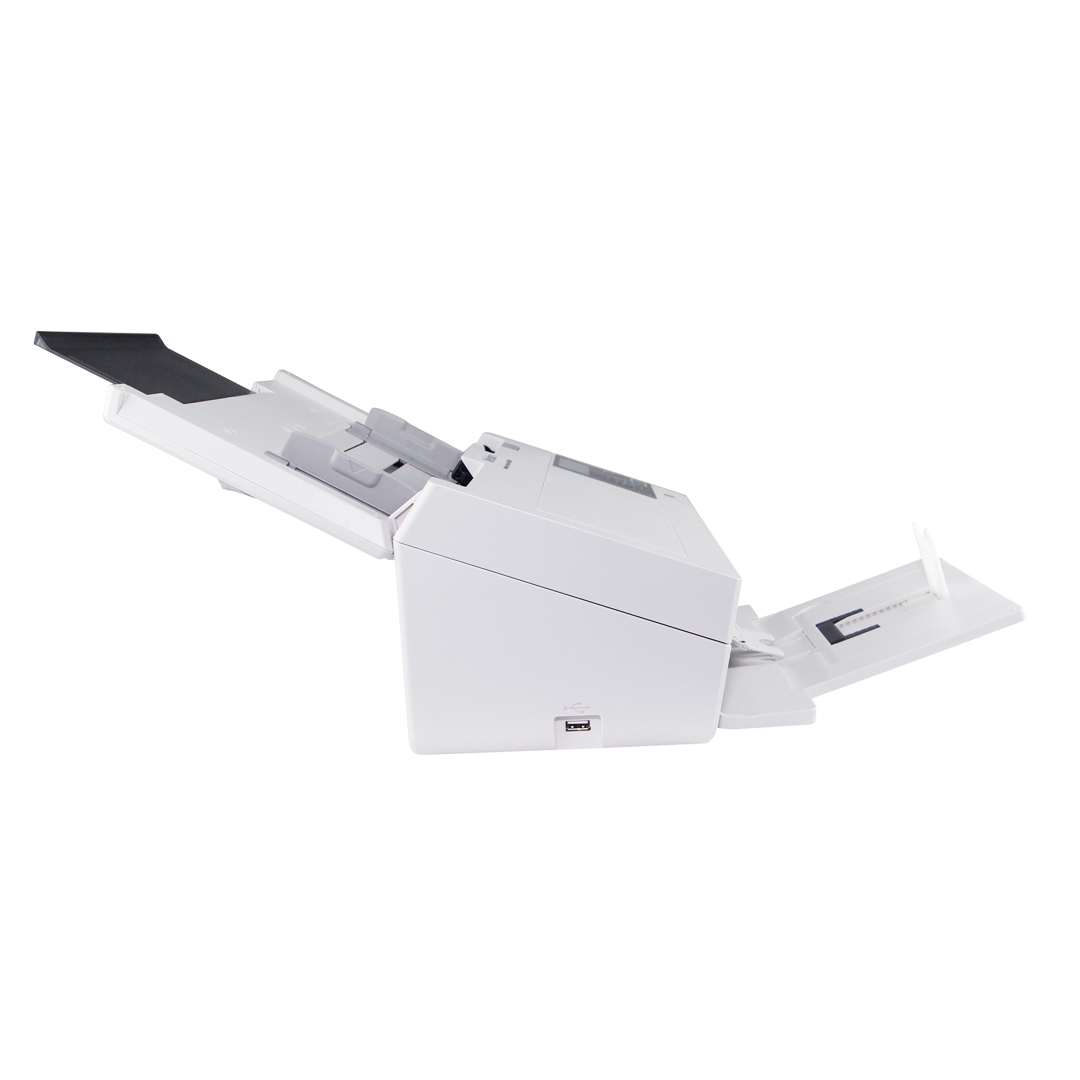

The AN230W features a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AN230W can be easily carried and fit on a desk without taking up a lot of space.

▍Intuitive Button Scanning

The AN230W is easy to use through the LCD display and buttons on the panel. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

Powerful Bundled Software Applications

The AN230W come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort . With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

▍Features

  • Fast, 40 ppm / 80 ipm scanning in color, grayscale and monochrome
  • Support form paper up to 242 x 356 mm ( 9.5 x 14 in. )
  • Daily duty cycle up to 6,000 sheets
  • Enhanced network scanning to network folders, FTP, and e-mails
  • Robust 100-page automatic document feeder ( A4 : 80 g/m2, 20 lb. )
  • Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
  • Reverse roller technology delivers outstanding feeding reliability
  • Hard and embossed card scanning up to 1.40 mm in thickness in portrait or landscape feeding
  • Press and scan to cloud servers via the bundled software Button Manager V2
  • Earth-friendly LED technology
  • Long page scanning: 5540 mm ( 218” ) ( < 300 dpi, duplex ) / 6000 mm ( 236” ) ( < 200 dpi, duplex )
  • Auto power off setting




Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Document feeding mode

ADF

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

Maximum:316 x 680 x 239 mm ( 12.4 x 26.8 x 9.4 in. ), Minimum:316 x 191 x 168 mm ( 12.4 x 7.5 x 6.6 in. )

Weight

4.1 kg ( 9.04 lb. )

Interface

USB 2.0, ( USB 3.0 compatible )

Power Consumption

Operation < 28 W;Ready < 14 W;Sleep < 0.3 W;Off < 0.3 W

Acoustical Noise

Operation < 50 dB;Ready < 45 dB

OS Support

Win 7, Win 8, Win 10

Bundled Software

TWAIN Driver, Button Manager, PaperPort, AVScan

Features
Long Paper Mode

Up to 200 dpi Color Duplex 236 in. ( 6000 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )

Card Scan

Embossed card ( Thickness 1.25 mm )

Scan Size
ADF Minimum

50 x 50 mm

ADF Maximum

216 x 356 mm ( Legal )( 8.5 x 14 in. )

ADF Capacity

100 sheets ( A4 : 80 g/m² or 20 lb. )

Paper Weight (Thickness )

27g ~ 413 g/m² ( 7 to 110 lb )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 40 ppm;Duplex : 80 ipm

B/W @ 300dpi, A4

Simplex : 30 ppm;Duplex : 60 ipm

Color @ 200dpi, A4

Simplex : 40 ppm;Duplex : 80 ipm

Color @ 300dpi, A4

Simplex : 30 ppm;Duplex : 60 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Product Photos

200
High resolution Medium resolution Low resolution
12.24 MB 362.01 KB 58.50 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AN230WРусский6.74 MBDownload
AN230WPortuguês6.30 MBDownload
AN230WPolski6.59 MBDownload
AN230W한국어6.51 MBDownload
AN230W日本語6.45 MBDownload
AN230WItaliano6.33 MBDownload
AN230Wעברית7.60 MBDownload
AN230WFrançais6.38 MBDownload
AN230WEspañol6.78 MBDownload
AN230WEnglish6.37 MBDownload
AN230WDeutsch6.15 MBDownload
AN230W繁體中文6.64 MBDownload
AN230W简体中文6.13 MBDownload

▎Brochure

NameVersionSizeLink
AN230WPortuguese1.46 MBDownload
AN230WChinese Traditional935.33 KBDownload
AN230WEspañol749.90 KBDownload
AN230WEnglish731.90 KBDownload
AN230WGerman866.66 KBDownload
AN230W简体中文789.27 KBDownload

▎Quick Guide

NameVersionSizeLink
AN230WNetwork Setting (English/Русский/Polski/日本語/한국어/繁體中文/עברית)1.28 MBDownload
AN230WNetwork Setting (English/Deutsch/Español/Français/Italiano/Português)1.10 MBDownload
AN230WMultiple Languages1.46 MBDownload

▎Software

NameVersionSizeOS SupportLink
Virtual Scanner Link2021110358.1 MBWin 7 , Win 8 , Win 10Download
PaperPort14455.79 MBWin 7 , Win 8 , Win 10Download
World Card TeamV3.0.0.0(WCT)235 MBWin 7 , Win 8 , Win 10Download
ButtonManager V2V3.0.0.0595 MBWin 7 , Win 8 , Win 10Download
AVScan XV1.2.0.0549.39 MBWin 7 , Win 8 , Win 10Download

▎Drivers

NameVersionSizeOS SupportLink
AN230WVB.2026.28 MBWinXP/Vista/Win7/Win8/Win10Download

▎Software

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • When I choose optical resolution to be 650 dpi, the "auto crop" and "deskew" functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform "auto crop" and "deskew" functions, please choose your optical resolution to be smaller than 600 dpi to prevent an error message.

  • ▎Instruction

  • Paper becomes skewed in the scanner.

    1. Align the document guides to fit the documents as closely as possibly and place the documents so that they feed in straight.

    2. Check the condition of the feeding roller. If necessary, follow the cleaning directions and perform the cleaning.

  • More than one sheet of paper are fed into the scanner.

    1. Open the scanner front door.

    2. Remove the multi-fed sheets.

    3. Close the front door.

    4. Flatten the corners and edges. Loosen the paper before putting it into the paper guide again.

    5. Check the feeding roller condition. If necessary, follow the cleaning directions and perform the cleaning.

  • ▎Hardware Related

  • Paper becomes jammed during scanning.

    1. Open the front door.

    2. Pull out the jammed paper carefully.

    3. Close the front door.
