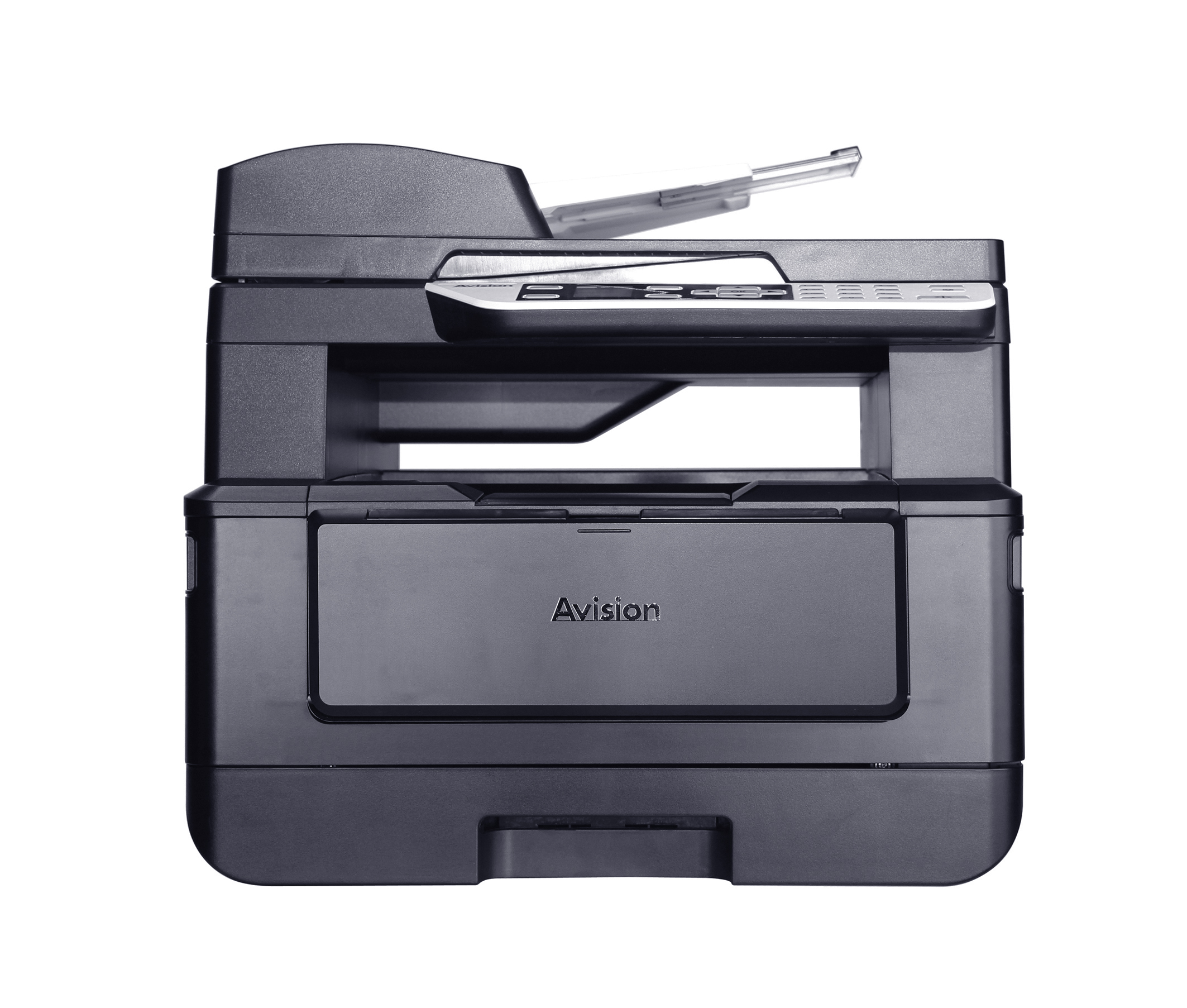

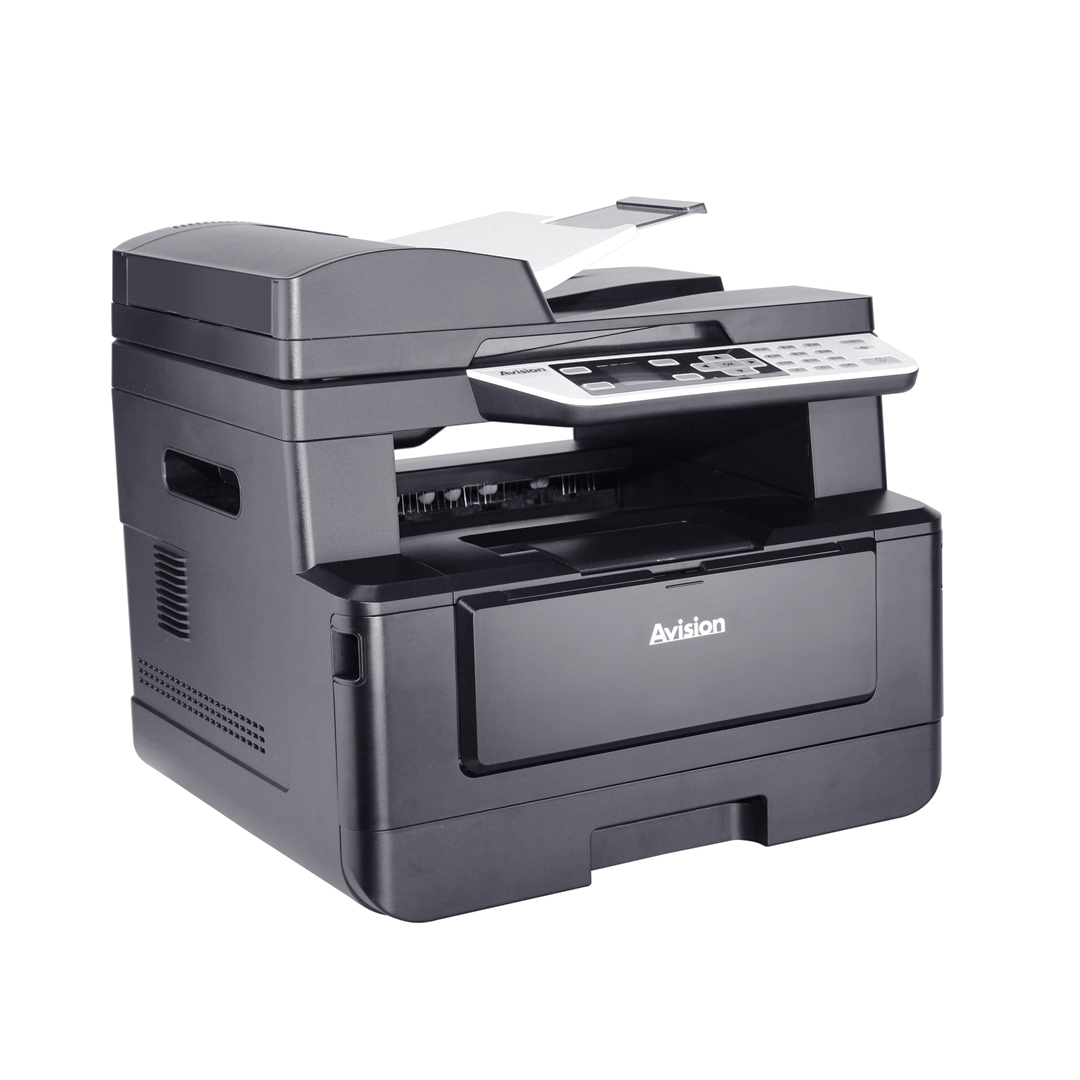

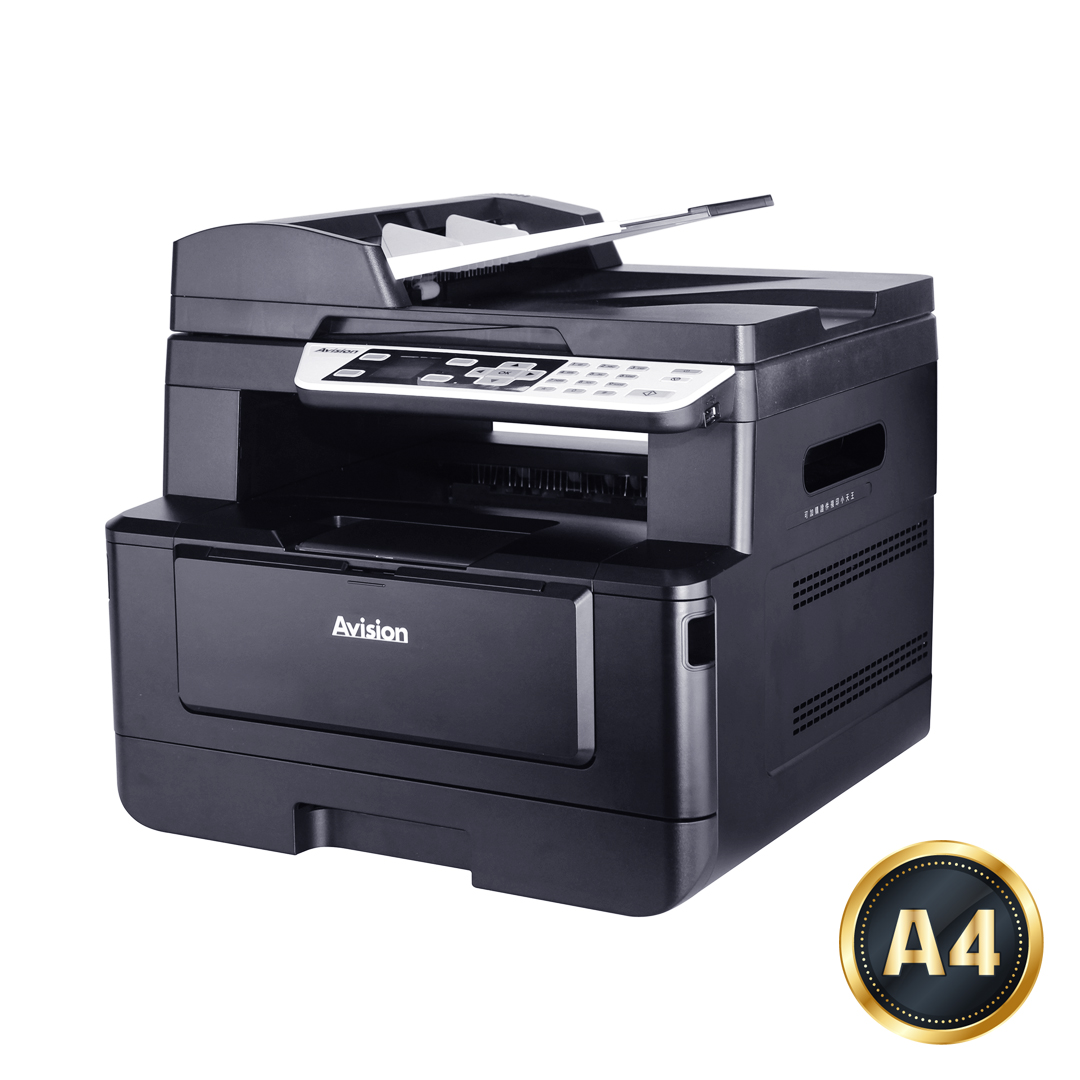

AM30A series

Print, Copy, E-mail, Fax, and Scan with the Avision AM30A series MFP

We’ve taken the office-critical features of our departmental MFPs and packed them into this ultra-productive LEGAL-size printer. It seamlessly integrates print, scan, e-mail, fax, and copy functionalities. Plus, the product can be connected to the computer through a wired or wireless network. All these features are operated through a clear and large LCD screen to simplify work for busy offices with high-volume of document distribution.



Product Details


▍Copy

The product is designed with various advanced copy features which includes ID card copy, auto rotate to match output paper, paper saver to copy multi-page document onto a single sheet and etc.

▍Print

When the product is connected to a computer through a USB or a network port, it is able to perform local printing or network printing.

▍Fax ( Optional )

With the built-in fax modem (33.6 Kbps Super G3) and an additional telephone line, the product is able to transmit your scanned document to a remote fax machine just like regular fax machine. In addition, a password can be required before incoming faxes can be printed or removed, and a junk fax barrier protects your privacy.

▍Scan-to-USB

Without complex setting, the product allows you to save your scanned image to a removable disk (Flash) through the USB port.

▍Scan-to-email

The scan-to-email feature lets you scan paper-based documents in full color and e-mail them as attachment in PDF, JPEG, or TIFF file format directly from the product.

▍Scan-to-filing

The scan-to-filing feature allows you to scan the documents and save them to a folder of a personal computer or any server in the network including FTP, or CIFS

▍Clear, & Easy-to-use LCD Screen

Easy to read and navigate, 1.7-inch, bright color LCD screen guides you through even the most complex operations. Simply make a few presses on the control panel, your document can be digitized and distribute within seconds.

35-sheet Automatic Document Feeder

Through the optional 35-sheet automatic document feeder, the product allows a stack of 35-page document(s) to be continuously scanned and transmitted at one time in reliable quality to increase your efficiency.

▍Remote Device Management through Embedded Web Page

The product provides a convenient way to view the supplies status of printer cartridge, scan count, and copy count to help you maintain the product well. By simply typing the machine's IP address in the URL field of your browser, the product’s embedded web page will be prompted.

▍Features

  • Duplex Versatility: Two sided printing, and copying
  • Print at up to 33 ppm in black and white
  • First print output time < 11 seconds
  • Scan in color up to 600 dpi optical resolution
  • Full A4 platen glass allows you to scan A4-size document with ease
  •  Scan to and print from USB for files on the go
  • 250-sheet standard or optional tray plus 10-sheet multipurpose tray
  • Fax transmission rate up to 33.6 Kbps
  • Remote device management through embedded web page
  • User-friendly 1.7” FLF LCD screen for easy operation





Specification

General Specification
Function

Copy, Print, Scan, Network

CPU

350 MHZ

RAM

512 MB

Display

1.7 in. TFT LCD

Paper input

Face down(Main tray),Face up(Manual tray)

Paper output capacity

150 Pages(70 g/m² , plain paper)

Duplex printing unit

Built – in

Paper Size

A4, Letter

Paper weight

60 to 120 g/m²

Connectivity

USB 2.0 10 / 100 Base-T Ethernet

Power source

100-127 VAC, 50/60 Hz, or 220-240 VAC, 50/60 Hz

Dimensions (WxDxH)

404 x 380 x 367 mm ( 15.9 x 14.9 x 14.4 in. )

Weight

Approximately 11 kg ( 24.2 lb. )

Acoustical Noise

Standby:40 dB, Operating:<53 dB

Software Driver Support

Win 10, Win 8, Win 7, Win 11

Features

Auto Document Feeder, USB Host, Web Utility

Recommanded Monthly Print Volumn

1,500 ~ 4,500 pages

Maximum Monthly print Duty cycle

60,000 pages

Main tray
Paper capacity

250 pages (70 g/m² plain paper )

Paper size

A4, A5, A6, B5, Letter, Legal, 76 x 135 mm

Paper weight

60 to 120 g/m²

Manual tray
Paper capacity

10 sheets (70 g/m² plain paper )

Paper size

A4, B5, A5, A6, letter, Legal, 76 x 127 mm to 216 x 356 mm

Paper weight

60 to 120 g/m²

Consumables (option)
Toner Cartridge

1500 pages, 3000 pages

Drum Unit

30,000 pages

Environmental Factors
Temperature

10 ~ 32℃

Humidity

15% ~ 80%

Scanner Function
Technology

Contact Image Sensor (CIS)

Light Source

LED

Scanning Mode

Color Scanning

Document feeding mode

Flatbed + Document Feeder

Optical resolution

600 x 600 dpi

Output Resolution (dpi)

600/300

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

File Formats

Color file : JPEG, M-PDF, PDF, TIFF;Gray file : JPEG, M-PDF, PDF, TIFF;B/W file : M-PDF, PDF, TIFF

ADF Minimum

76 x 127 mm

ADF Maximum

216 x 356 mm ( Legal )( 8.5 x 14 in. )

Flatbed Maximum

216 x 297 mm

Scanning Speed

25 ppm

ADF Capacity

50 sheets

Paper Weight (Thickness )

60 ~105 g/m2

Scanning features

Printer Function
Print speed

33 ppm(A4), 35 ppm(Letter)

Maximum media size

Legal

Minimum media size

76 x 127 mm

Resolution

1200 x 1200 dpi

PDLs/Emulations

GDI

First print output time

<7 seconds

N-up Print

2-in-1, 4-in-1

Scaling

25 ~ 400 %, Fit to Paper

Edge Erase

4.3 mm ( top, bottom, left, right )

Duplex print

Booklet, Calendar

Print features

Copy Function
Copy Size

Legal, Letter, A4, A5

Max media size

ADF:216 x 356 mm ; Flatbed:216 x 297 mm

Min media size

76 X 127 mm

Copy Resolution

600 x 600 dpi

Copy Speed

33 cpm ( 1 to N )

First copy output time (FCOT)

< 11 S

Copy Count

99

Copy Mode

Text / Photo / Mix

Zoom

25 % ~ 400 %

N-up Copy

2-in-1 / 4-in-1 / ID card

Copy features

Duplex ID Card Module (Optional)
Max document size

86 x 54 mm

ID card thickness

Up to 1.25 mm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Product Photos

200
High resolution Medium resolution Low resolution
13.37 MB 571.98 KB 152.27 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AM30A seriesPortuguês12.9 MBDownload
AM30A seriesItaliano12.31 MBDownload
AM30A seriesFrançais12.71 MBDownload
AM30A seriesEspañol12.8 MBDownload
AM30A seriesEnglish8.21 MBDownload
AM30A seriesDeutsch12.59 MBDownload
AM30A series繁體中文8.52 MBDownload
AM30A series简体中文8.6 MBDownload

▎Brochure

NameVersionSizeLink
AM30A series繁體中文427.08 KBDownload
AM30A seriesEnglish214.61 KBDownload
AM30A series简体中文256.00 KBDownload

▎Quick Guide

NameVersionSizeLink
AM30A seriesMultiple Languages (Network)1.16 MBDownload
AM30A seriesMultiple Languages1.16 MBDownload

▎Drivers

NameVersionSizeOS SupportLink
AM30 seriesV1.0225.1 MBWin7 / Win8 / Win10Download

Video

▎Instruction

  • Error Code 500002: DHCP no Respond.

    This error occurs when the printer requests information from the DHCP server and DHCP server does not respond.

    User Check

    1. Search the CMD and launch on your PC.

    2. key-in inconfig/all to check whether the DHCP server work in advance.


    3. Contact to IT person to check the DHCP server setting.

  • Error Code 500001: Net Cable Unplug.

    User Check

    1. Please plug the ethernet cable.
    2. If it still happen, test this cable on others devive to ensure this cable work, or not, try with another cable.

  • Error Code 500000: IP Conflict.

    User Check

    1. Please reset the fixed IP address, or contact to IT person to check the router setting.

  • ▎Hardware Related

  • Error Code 200032: Tone Near End of Life. Please Replace the Toner Cartridge

    User Check

    1. Need to prepare a new toner cartridge for replace when the current toner cartridge life end. <Video Link>

  • Error Code 200335: Paper Jam.

    User Check

    1. Take out the duplex unit and open the main tray to remove the jammed paper.
    2. Close the main tray then set the duplex unit to try again.

    <Video Link>

  • Error Code 200334: Paper Jam.

    User Check

    1. Take out the duplex unit and open the rear cover to remove the jammed paper.
    2. Close the rear cover then set the duplex unit to try again.

    <Video Link>

  • Error Code 200333: Paper Jam.

    User Check

    1. Open the rear cover to remove the jammed paper.
    2. Close the cover to try again.

    <Video Link>

  • Image Problem: Blank Page.

    User Check

    1. Replace drum unit. <Video Link>

  • Image Problem: White Vertical Line.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. Replace drum unit. <Video Link>

  • Error Code 200036: Toner Cartridge Error. Please Rplace Toner Cartridge from Original Manufacturer.

    User Check

    1. Please ensure you had replaced the toner cartridge from original manufacturer. <Video Link>

  • Error Code 200031: Toner End of Life. Please Replace Toner Cartridge.

    User Check

    1. Please replace the toner cartridge. <Video Link>

  • Image Problem: Dirty Background.
    This image has an empty alt attribute; its file name is image-15.png

    User Check

    1. The problem may disappear after printing a few pages.
    2. Check whether fixed distance of the dust on the paper and measure it, 33.1 mm is toner issue and 75.4 mm is drum issue, confirm and judge which one need to be replace.

    3. Replace drum unit. <Video Link>
    4. Replace toner unit. <Video Link>
    5. There is dirt on the printer internal. wipe off the dirt.

  • Image Problem: Black Spots.

    User Check

    1. There is dirt on the printer internal. wipe off the dirt on the paper path or roller.

    2. Check whether fixed distance of the dust on the paper and measure it, 33.1 mm is toner issue and 75.4 mm is drum issue, confirm and judge which one need to be replace.

    3. Replace drum unit. <Video Link>
    4. Replace toner unit. <Video Link>

  • Image Problem: Dirt on the Rear Side.

    User Check

    1. This problem may be solved after printing a few pages.
    2. There is dirt on the printer internal. wipe off the dirt on the paper path or roller.


  • Image Problem: Black Strape.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. This problem will disappear after printing for a few pages.
    3. Replace drum unit. <Video Link>
    4. Replace toner unit. <Video Link>
    5. There is dirt on the printer internal. wipe off the dirt on the paper path or roller.

  • Image Problem: White Spots.

    User Check

    1. There is dirt on the printer internal. wipe off the dirt on the paper path or roller.

    2. Check whether fixed distance of the dust on the paper and measure it, 33.1 mm is toner issue and 75.4 mm is drum issue, confirm and judge which one need to be replace.

    3. Replace drum unit. <Video Link>
    4. Replace toner unit. <Video Link>

  • Image Problem: Print Blur.

    User Check

    1. If the printer has been evenly positioned.
    2. Replace drum unit. <Video Link>

  • Image Problem: Print all Black.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. Replace drum unit. <Video Link>

  • Image Problem:Image Distortion (for LSU unit).

    User Check

    1. Check whether happen both on PC print and copy function.
    2. If it happen only on copy function, check your original document image.

  • Image Problem: Blur Image.

    User Check

    1. Check the environment. High or low temperature/humidity may cause the problem.
    2. Check if the paper is damp.
    3. Replace drum unit. <Video Link>
    4. Replace toner unit. <Video Link>

  • Image Problem: Vertical Lines.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. This problem will disappear after printing for a few pages.
    3. Replace drum unit. <Video Link>
    4. Replace toner unit. <Video Link>

  • Image Problem: Horizontal Line.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. This problem will disappear after printing for a few pages.
    3. Replace drum unit. <Video Link>

  • Image Problem: Ghost (Type 2).
    This image has an empty alt attribute; its file name is image-28.png

    User Check

    1. Check the environment. High or low temperature/humidity may cause the problem.
    2. Replace drum unit. <Video Link>
    3. Replace toner unit. <Video Link>

  • Image Problem: Ghost (Type 1).
    This image has an empty alt attribute; its file name is image-27.png

    User Check

    1. Check the environment. High or low temperature/humidity may cause the problem.
    2. Replace drum unit. <Video Link>
    3. Replace toner unit. <Video Link>

  • Image Problem: The Color Fades Down Gradually.

    User Check

    1. 4. Replace toner unit. <Video Link>

  • Image Problem: A White Horizontal Line.

    User Check

    1. The problem could be disappeared after printing a few pages.
    2. Replace drum unit. <Video Link>

  • Image Problem:Too Deep (Bottom Gray).

    User Check

    1. Check the environment. High or low temperature/humidity may cause the problem.
    2. Replace drum unit. <Video Link>
    3. Replace toner unit. <Video Link>

  • Image Problem:The Poor Image.

    User Check

    1. Check the operating environment. High temperature and high humidity or low temperature and low humidity conditions can cause this problem.
    2. Check if the paper is damp.

  • Image Problem: Gray.

    Trouble Shooting

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. Replace drum unit. <Video Link>
    3. Replace toner unit. <Video Link>

  • Image Problem: It's too shallow.

    User Check

    1. Check the operating environment. High temperature and high humidity or low temperature and low humidity conditions can cause this problem.
    2. Replace toner unit. <Video Link>

  • Image Problem: Too shallow (partial).

    User Check

    1. Check the operating environment. High temperature and high humidity or low temperature and low humidity conditions can cause this problem.
    2. Replace toner unit. <Video Link>

  • Image Problem: Black Vertical Lines on a Light Background.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. Replace drum unit. <Video Link>

  • Image Problem: Poor Positioning

    User Check

    1. Check if proper paper type has been selected in printer driver.

  • Image Problem: Black Horizontal Lines.

    User Check

    1. Clean the corona wire or the power grid of the drum unit.
    Slide the corona wire to the end and then back to the original place. Repeat this for at least 3 times

    2. This problem will disappear after printing for a few pages.
    3. Replace drum unit. <Video Link>

  • Error Code 200054: Rear Cover Opens

    User Check

    1. Check whether the rear cover actually close well when you print by duplex.

  • Error Code 200041: Not Install Drum Unit

    User Check

    1. check If there is drum unit installed in the printer or not.

    <Video Link>











    2. check wether the chip of drum had dust by clean cotton swab to wipe.

  • Error Code 200042: Drum Unit Lifetime End

    User Check

    1. Replace the drum unit.

    <Video Link>

  • Error Code 200043: Drum Unit Near End of Life

    User Check

    1. Need to prepare a new drum unit for replace when the current drum life end.

    <Video Link>

  • Error Code 200044: Invalid Drum Unit

    User Check

    1. Please ensure you had replaced the drum unit from the original manufacturer.

    <Video Link>

  • Error Code 200030: No Toner Cartridge.

    User Check

    1. Check If there is toner cartridge installed in the printer or not.










    2. Check wether the chip of toner cartridge had dust by clean cotton swab to wipe.

  • Error Code 200324: Paper Jam.

    User Check

    1. Open front cover and remove the drum unit to remove the jammed paper.
    2. Check if there is any foreign object on the paper path.
    3. Check if the light guide of the drum unit is contaminated by clean cotton swab to wipe with isopropyl alcohol (95%).

    <Video Link>

  • Error Code 200328: Paper Jam.

    User Check

    1. Open front cover and remove drum to remove the jammed paper.
    2. Check if there is any foreign object on the paper path.
    3. Check if the light guide of the drum unit is contaminated by clean cotton swab to wipe with isopropyl alcohol.

    <Video Link>

  • Error Code 200080: Printer Paper Empty (Manual Tray)

    User Check

    1. No paper on the manual tray, please load the paper to manual tray.

  • Error Code 200000: Multi-Feed Error

    User Check

    1. Check if paper in the tray exceeds capacity, try to reduce some paper.
    2. Check if paper loaded into the tray correctly.
    3. Turn the paper upside down or turn it 180° and then reload to the tray.
    4. Fan the paper and then reload into paper tray.












    5. Moisten a clean cotton swab with isopropyl alcohol (95%) to clean the rubber part of the pad of the tray pad.

  • Error Code 200081:Printer Paper Empty (Main Tray)

    User Check

    1. No paper on the main tray, please load the paper to main tray.

  • Error Code 200090:Fan Error

    User Check

    1. Confirm whther there are someting insert to the fan on vent position to make the fan rotation fail.

  • Error Code 200331: Paper Jam.

    User Check

    1. Open rear cover to pull down the paper path & green arm of the both side.
    2. Remove the jammed paper and ensure this position without any foreign obgects.
    3. Return the paper path & green arm of the both side then close the rear cover then try again.

    <Video Link>

  • Error Code 200327: Paper Jam.

    User Check

    1. Open front cover and take out the drum unit.
    2. Check if there are the jammed paper, rotate the green release wheel to take the paper back way.
    3. Then open the main tray to remove the jam paper.
    4. Check if there is any foreign object on the paper path.
    5. Close the main tray and return the drum unit then close the front cover to try again.

    <Video Link>

  • Error Code 200326: Paper Jam.

    User Check

    1. Open front cover and take out the drum unit.
    2. Check if there are the jammed paper, open the main tray to remove the jam paper.
    3. Check if there is any foreign object on the paper path.
    4. Close the main tray and return the drum unit then close the front cover to try again.

    <Video Link>

  • Error Code 200325: Paper Jam.

    User Check.

    1. Open front cover and take out the drum unit.
    2. Check if there are the jammed paper, open the main tray to remove the jam paper.
    3. Check if there is any foreign object on the paper path.
    4. Close the main tray and return the drum unit then close the front cover to try again.

    <Video Link>

  • Error Code 200330: Paper Jam.


    User Check

    1. Open rear cover to pull down the paper path & green arm of the both side.
    2. Remove the jammed paper and ensure this position without any foreign obgects.
    3. Return the paper path & green arm of the both side then close the rear cover then try again.

    <Video Link>
    .

  • Error Code 200329: Paper Jam.

    User Check

    1. Open front cover and take out the drum unit.
    2. check if there are the jammed paper, rotate the green release wheel to take the paper back way.
    3. then open the main tray to remove the jam paper.
    4. Check if there is any foreign object on the paper path.
    5. Close the main tray and return the drum unit then close the front cover to try again.

    <Video Link>

  • Error Code 200332: Paper Jam.

    User Check

    1. Removal the Jam from exit position to try again.
    2. Open the front cover to check whether there are others paper inside the printer paper path.

    <Video Link>

  • Error Code 201604: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201605: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201607: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201613: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201615: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201616: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201617: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201618: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201622: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201621: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201623: Fuser Error.

    User Check

    1. Please try to restart the printer.

  • Error Code 201600:Fuser Error.

    User Check

    1. Turn off printer to wait for a moment to keep the printer temperature down.
    2. Restart the printer to try again.

  • Error Code 200302: Paper Jam.


    User Check

    1. Open the main tray
    2. Removal the jam paper
    3. Reset the paper as well in tray
    4. Close the main tray to try again.
    <Video Link>

  • Error Code 200301: Paper Jam.

    User Check

    1. Pick up the jam paper on manual tray
    2. Confirm and sort the paper to put it on the tray again

    <Video Link>
