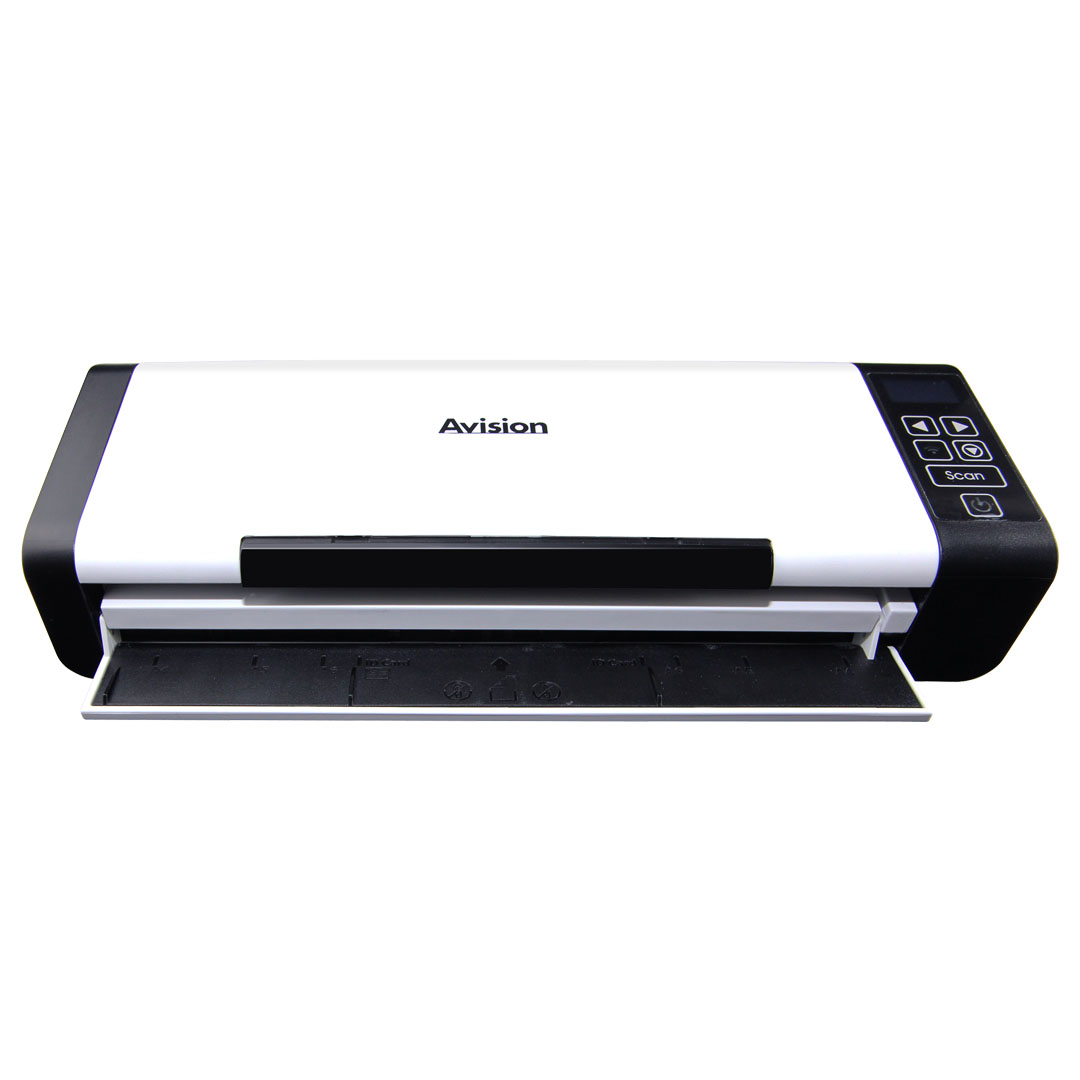

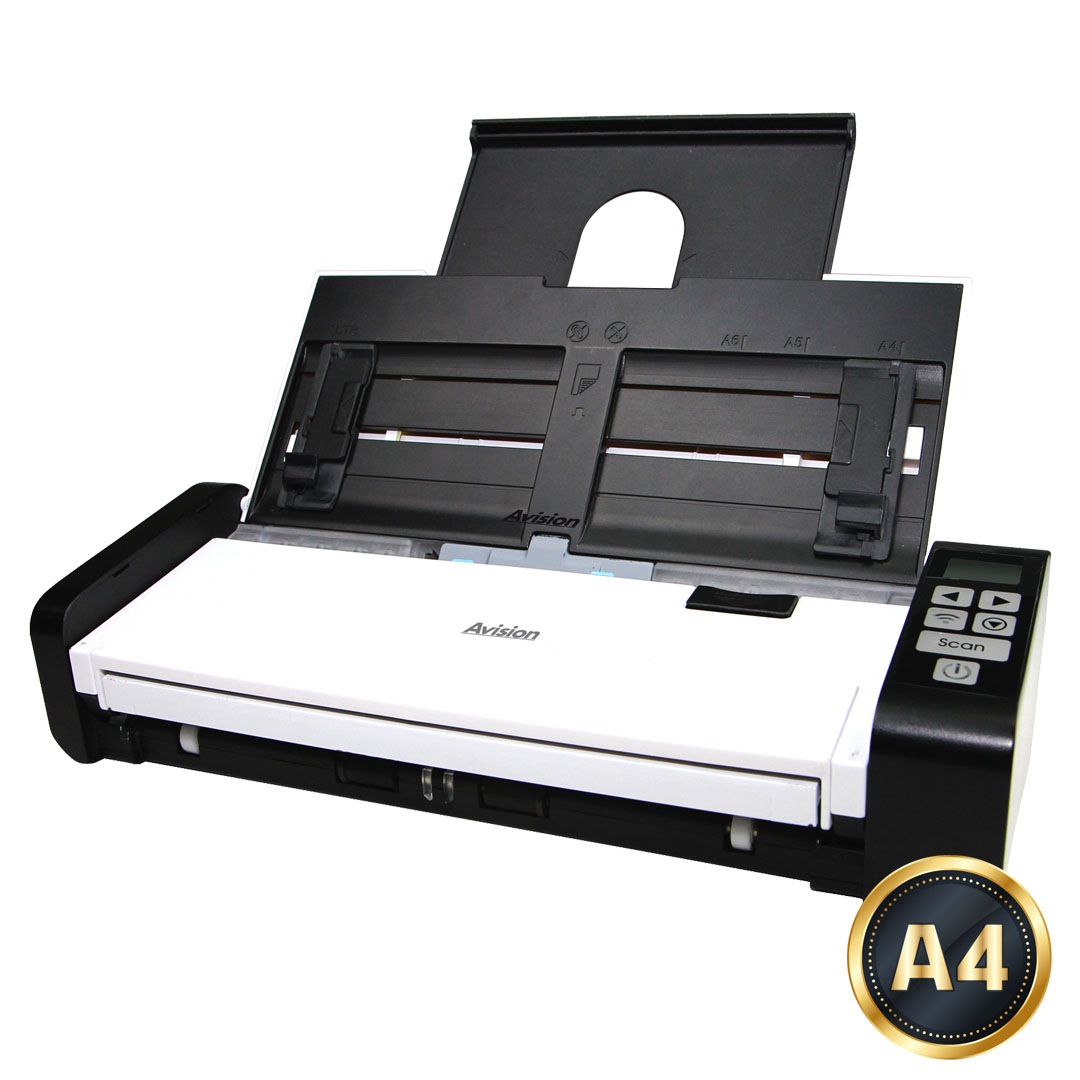

AD215L

Your portable solution for batches scanning

At 11.8 inches long and weighting only 1400 grams, the Avision AD215L incorporate a built-in automatic document feeder ( ADF ) and card scanner in a compact unit. With the innovative design of fordable ADF and front tray, the AD215L is easy to travel with and lets you bring productivity of batches scanning to any workplace.

Product Details






▍Productive and Flexible

The AD215L is productive at scan rate of up to 20 ppm and 40 ipm through the built-in 20-page auto document feeder and accommodate document up 14”. To capture high quality card image, the AD215L also include special front tray to handle plastic ID cards, driver licenses, and even embossed cards up to 1.25 mm or paper up to legal size (8.5 x 14 in.) and weight between 27 and 120 g/m2. To make flexible use of your working space, your single-page document or cards can be loaded either in the front tray and they can also be ejected either in the same or the opposite side of the feeder.

▍Easy to scan with a press of a button

With Avision’s newly developed software application – Button Manager V2, the AD215L scans both sides of a page directly to PDF, searchable PDF, JPEG, or to office applications like Word or Excel® with a press of a button. The AD215L automatically recognizes the size of each document, detects and straightens for skew, and shows images in their proper orientation. Plus, the scanned image can be sent directly to your specified destination including e-mail, printer, image editing software application, or even a cloud server such as Google Drive or Microsoft SharePoint.

▍What we have bundled

The Avision AD215L comes with TWAIN and ISIS drivers, and is bundled with a suite of powerful software applications that include Avision Button Manager V2, AVScan X, and Nuance PaperPort SE 14. With Button Manager V2, you can create searchable PDFs, scan and send images to e-mail, printer, or other destinations with a simple press of the Scan button. The AVScan X and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.



▍Features

  • Fast scan rate up to 20 pages per minute and 40 images per minute
  • 20-page Auto Document Feeder (27 and 120 g/m2)
  • Front and Rear Feeder to accept embossed card up to 1.25 mm and paper up to legal size and weight between 27 and 413 g/m2
  • Auto crop and straighten a skew document
  • Press and scan to cloud servers via the bundled software Button Manager V2
  • Press and paste your scanned image directly to your text editor via the bundled software Button Manager V2
  • Earth-friendly LED technology
  • Long page scanning: 118” ( <300 dpi,  color )
  • Auto power off setting




▎Сертификационный знак

Узнать больше

Где купить

Общая спецификация
Технология

Contact Image Sensor (CIS)

Источник света

LED

Режим подачи документов

ADF

Оптическое разрешение (т/д)

600

Output Resolution (dpi)

1200

Форматы файлов

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Полутоновые узоры

Dither and Error Diffusion

Режим оттенков серого

16-bit input 8-bit output

Цветовой режим

48-bit input 24-bit output

Размеры (ШхГхВ)

299 x 104 x 74 mm

Вес

1.4 kg (3 lb.)

Интерфейс

USB 2.0, ( USB 3.0 compatible )

Стандарт Wi-Fi

No

Потребляемая мощность

Operation < 9.12 W;Ready < 5.88 W;Sleep < 2.51 W;Off < 0.42 W

Акустический шум

Operation < 55 dB;Ready < 45 dB

Рекомендуемый дневной объём

Up to1,000 pages

Поддержка ОС

Win 7, Win 8, Win 10

Программное обеспечение в комплекте

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan

Features
Ультразвуковое обнаружение замятия бумаги

No

Long Paper Mode

Up to 300 dpi Color Duplex 118 inch ( 3000 mm )

Сканирование карт

Embossed card ( Thickness 1.25 mm )

Scan Size
Минимум АПД

70 x 70 mm

Максимум АПД

216 x 356 mm ( Legal )( 8.5 x 14 in. )

Ёмкость АПД

20 sheets

Плотность бумаги (толщина)

ADF:27 ~ 120 g/m²;Front :27 ~ 413 g/m² ( 7 to 110 lb. )

Размер сканирования
Ч/Б при 200 т.д., A4

Simplex : 20 ppm;Duplex : 40 ipm

Ч/Б при 300 т.д., A4

Simplex : 15 ppm;Duplex : 30 ipm

Цветной при 200 т.д., A4

Simplex : 20 ppm;Duplex : 40 ipm

Цветной при 300 т.д., A4

Simplex : 15 ppm;Duplex : 30 ipm, Simplex : 8 ppm ; Duplex : 16 ipm ( USB Bus Power )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
