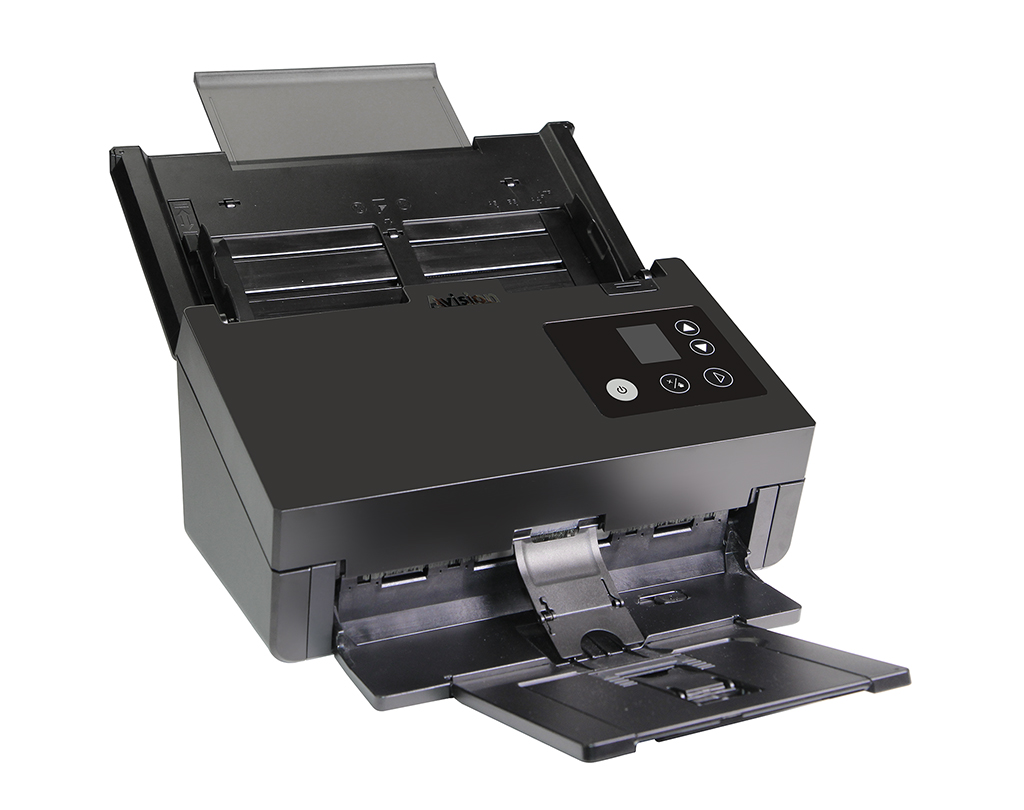

AD370 series

A Fast, and Affordable Sheet-Fed Scanner

The Avision AD370 series are 70 page-per-minute, duplex scanners that are fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. Embedded with Avision-developed image processor , the scanned images can be automatically cropped, straightened, and optimized with enhanced speed.


Product Details



▍Color, and Graphical LCD Display

The AD370series is easy to use through the LCD display and buttons on the panel. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

▍A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (2” x 2”) to business document (8.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness.

▍Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD370 delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

▍High-Volume Daily Duty Cycle

The scanner can be used to scan up to 15,000 pages per day through the 100-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

▍Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

▍Compact Design to Save Your Space

The AD370 series feature a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD370 can be easily carried and fit on a desk without taking up a lot of space.

▍Powerful Bundled Software Applications

The AD370 series come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan and PaperPort . With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

▍Convenient mobile scanning (for AD370WN)

Built-in with a Wi-Fi dongle, the AD370WN can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s MB App.

▍A network document scanner (for AD370N/AD370WN)

With a network port at the back side, the AD370N/AD370WN allows you to use it as a network scanner. This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer.


  • Fast, 70ppm/140ipm scanning in color, grayscale and monochrome (300 dpi, color)
  • Auto crop and deskew a document with the advanced Avision-developed image processing unit to enhance the scanning speed
  • Support form paper up to 8.5 x 14 in.
  • Daily duty cycle up to 15,000 sheets
  • Robust 100-page automatic document feeder (80 g/m2, 20 lb)
  • Reverse roller technology delivers outstanding feeding reliability
  • Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
  • Press and scan to cloud servers via the bundled software Button Manager
  • Earth-friendly LED technology
  • Long page scanning: 5540 mm (218”) (300 dpi, color) / 6096 mm (240”) (200dpi,color)
  • Auto power off setting



▎Сертификационный знак

Узнать больше

Где купить

Общая спецификация

Contact Image Sensor (CIS)

Источник света


Режим подачи документов


Оптическое разрешение (т/д)


Output Resolution (dpi)


Форматы файлов

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Полутоновые узоры

Dither and Error Diffusion

Режим оттенков серого

16-bit input 8-bit output

Цветовой режим

48-bit input 24-bit output

Размер памяти


Размеры (ШхГхВ)

Maximum:316 x 680 x 239 mm ( 12.4 x 26.8 x 9.4 in. ), Minimum:316 x 191 x 168 mm ( 12.4 x 7.5 x 6.6 in. )


4.7 kg


USB3.2 Gen1x1

Потребляемая мощность

Operation < 35 W;Ready < 9 W;Sleep < 2.15 W;Off < 0.2 W

Акустический шум

Operation < 52 dB;Ready < 25 dB

Рекомендуемый дневной объём

Up to 15,000 pages

Поддержка ОС

Win 7, Win 8, Win 10

Программное обеспечение в комплекте

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver

Ультразвуковое обнаружение замятия бумаги


Long Paper Mode

Up to 200 dpi Color Duplex 240 in. ( 6096 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )

Сканирование карт

Embossed card ( Thickness 1.25 mm )

Scan Size
Минимум АПД

50 x 50 mm

Максимум АПД

216 x 356 mm ( Legal )( 8.5 x 14 in. )

Ёмкость АПД

100 sheets ( A4 : 80 g/m² or 20 lb. )

Плотность бумаги (толщина)

27g ~ 413 g/m² ( 7 to 110 lb )

Толщина удостоверения личности

Embossed card ( Thickness 1.25 mm )

Размер сканирования
Ч/Б при 200 т.д., A4

Simplex : 70 ppm;Duplex : 140 ipm

Ч/Б при 300 т.д., A4

Simplex : 70 ppm;Duplex : 140 ipm

Цветной при 200 т.д., A4

Simplex : 70 ppm;Duplex : 140 ipm

Цветной при 300 т.д., A4

Simplex : 70 ppm;Duplex : 140 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
