AD225WN

Your portable solution for batches scanning

At 11.8 inches long and weighting only 1500 grams, the Avision AD225WN incorporates a built-in automatic document feeder (ADF) and card scanner in a compact unit. With the innovative design of a fordable automatic document feeder and a front/rear tray, the AD225WN is easy to travel with and lets you bring productivity of batches scanning to any workplace.

Product Details






▍Productive and Flexible

The AD225WN is productive at scan rate of up to 25 ppm and 50 ipm through the built-in 25-page auto document feeder and accommodate document up to 14”. To capture high quality card image, the AD225WN also includes special front and rear tray to handle plastic ID cards, driver licenses, and even embossed cards up to 1.25 mm or paper up to legal size (8.5 x 14 in.) and weight between 27 and 413 g/m2 (rear tray: 50~105 g/m2).

▍Effective network Scanning

With the network port at the back side, the AD225WN allows you to use it as a network scanner.  This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer.

▍Two Eject Paths

If your single-page document is loaded from the front or rear feeder, the scanner provides two eject paths. Document can be ejected to the opposite side or to the same side of the feeder. Switch between these paths on the TWAIN user interface and select an eject path according to your need.

*Plastic card only available for front tray feeding.

▍Easy to scan with a press of a button

With Avision’s newly developed software application- Button Manager , the AD225WN scans both sides of a page directly to PDF, searchable PDF, JPEG, or to office applications like Word or Excel® with a press of a button. The AD225WN  automatically recognizes the size of each document, detect and straighten for skew, and show images in their proper orientation. Plus, the scanned image can be sent directly to your specified destination including e-mail, printer, image editing software application, or even a cloud server such as Google Drive or Microsoft SharePoint.

▍What we have bundled

The Avision AD225WN comes with TWAIN and ISIS drivers, and is bundled with a suite of powerful software applications that include Avision Button Manager , AVScan , and PaperPort . With Button Manager , you can create searchable PDFs, scan and send images to e-mail, printer, or other destinations with a simple press of the Scan button. The AVScan X and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.



▍Features

  • Fast scan rate up to 25 pages per minute and 50 images per minute
  • 25-page Auto Document Feeder (80 g/m2)
  • Front Feeder accepts embossed card up to 1.25mm and paper up to legal size and weight between 27 and 413 g/m2
  • Rear Feeder accepts embossed card up to 1.25mm and paper up to legal size and weight between 50 and 105 g/m2
  • Auto crop and straighten a skew document
  • Press and scan to cloud servers via the bundled software Button Manager
  •  Press and paste your scanned image directly to your text editor via the bundled software Button Manager
  • Earth-friendly LED technology
  • Long page scanning: 118” ( <300 dpi,  color )
  • Auto power off setting




▎Certification mark

Learn more



Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Document feeding mode

ADF

Optical Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

299 x 104 x 74 mm

Interface

USB 2.0, ( USB 3.0 compatible )

Network connection

RJ-45 Ethernet 10/100/1000 Mb, Wi-Fi

Wi-Fi standard

IEEE 802.1b/g/n

Recommended Daily Volume

Up to 3,000 sheets

OS Support

Win 7, Win 8, Win 10

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan

Features
Ultrasonic paper jam detection

Yes

Long Paper Mode

Card Scan

Embossed card ( Thickness 1.25 mm )

Scan Size
ADF Minimum

50 x 50 mm

ADF Maximum

216 x 356 mm ( Legal )( 8.5 x 14 in. )

ADF Capacity

25 sheets

Paper Weight (Thickness )

ADF:27 ~ 120 g/m²;Front :27 ~ 413 g/m² ( 7 to 110 lb. )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 25 ppm;Duplex : 50 ipm

B/W @ 300dpi, A4

Simplex : 25 ppm ; Duplex : 50ipm

Color @ 200dpi, A4

Simplex : 25 ppm;Duplex : 50 ipm

Color @ 300dpi, A4

Simplex : 25 ppm ; Duplex : 50ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

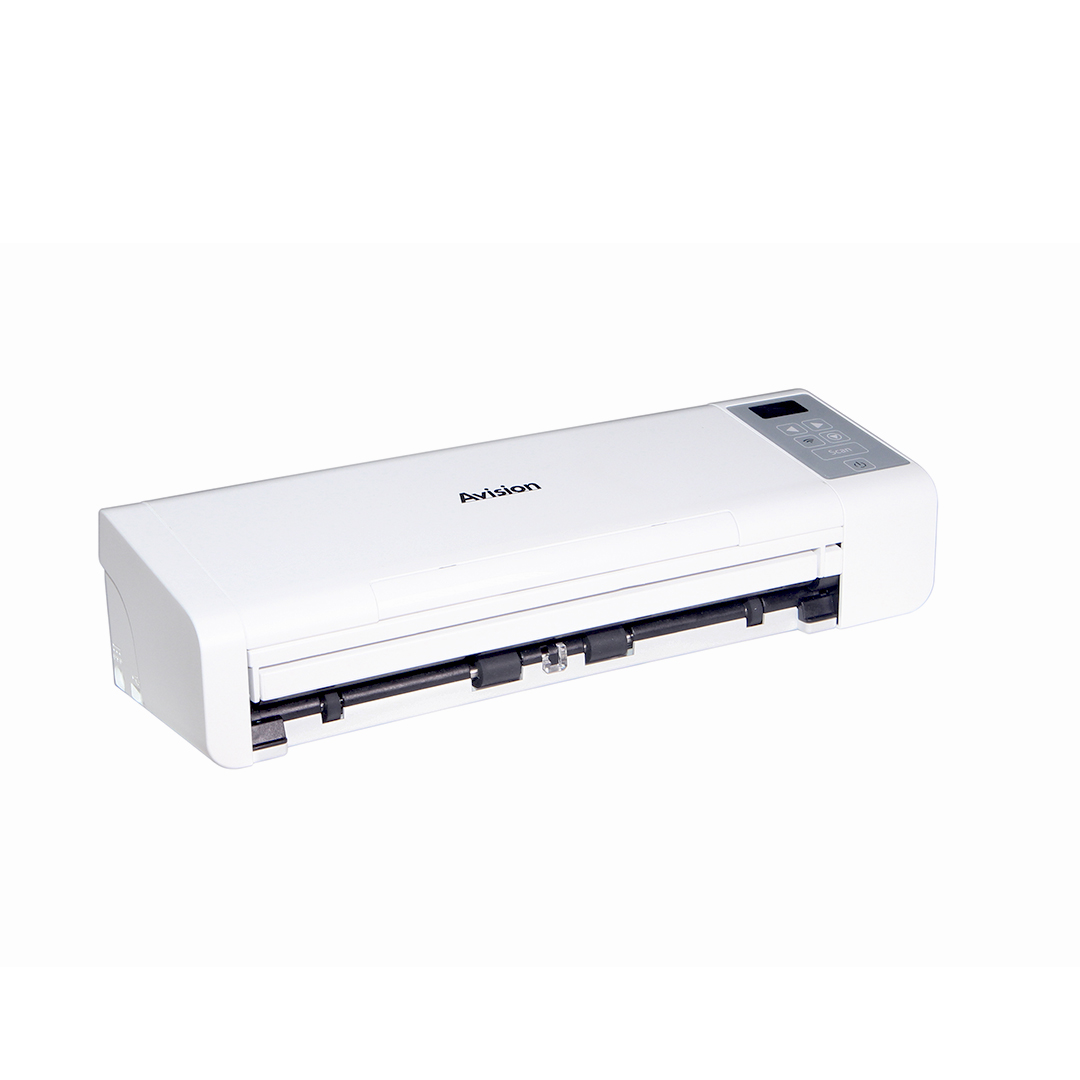

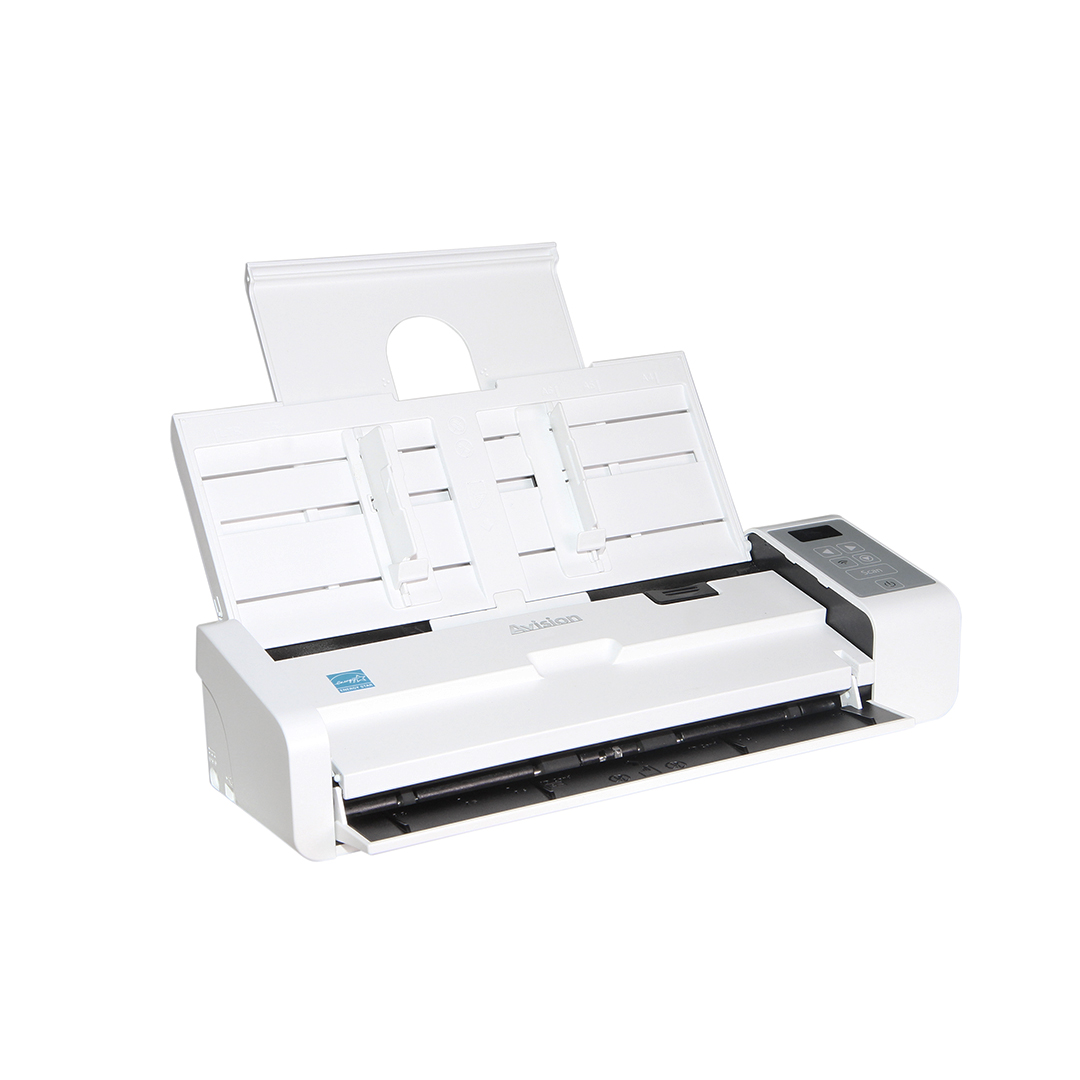

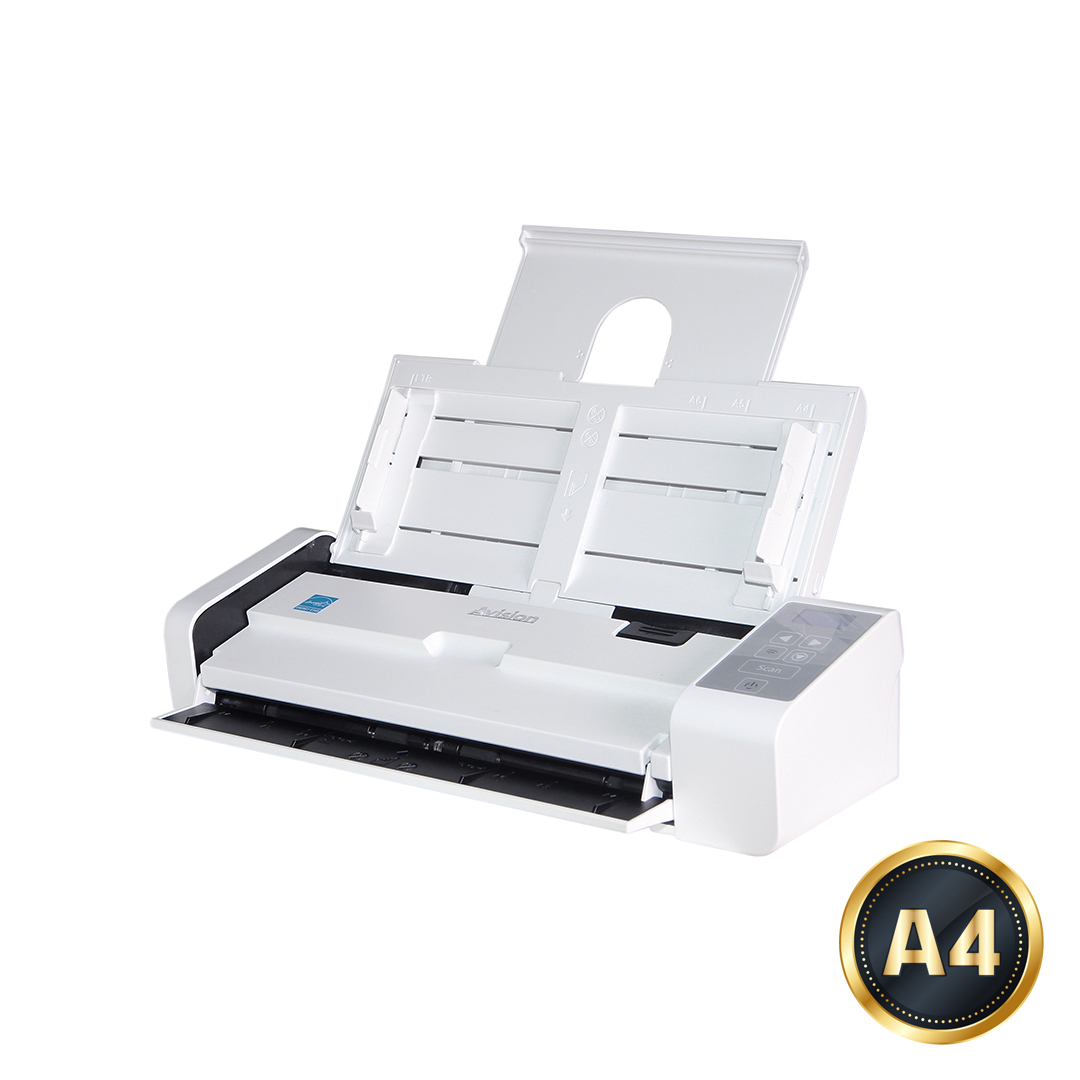

▎Product Photos

200
High resolution Medium resolution Low resolution
14.97 MB 980.05 KB 236.00 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AD225WNРусский6.13 MBDownload
AD225WNPortuguês6.50 MBDownload
AD225WNPolski6.08 MBDownload
AD225WN한국어6.47 MBDownload
AD225WN日本語6.40 MBDownload
AD225WNItaliano5.67 MBDownload
AD225WNעברית6.65 MBDownload
AD225WNFrançais5.49 MBDownload
AD225WNEspañol6.29 MBDownload
AD225WNEnglish6.22 MBDownload
AD225WNDeutsch5.35 MBDownload
AD225WN繁體中文6.13 MBDownload
AD225WN简体中文5.81 MBDownload

▎Brochure

NameVersionSizeLink
AD225WNEnglish362.28 KBDownload

▎Quick Guide

NameVersionSizeLink
AD225WNMultiple Languages(Ethernet)2.36 MBDownload
AD225WNMultiple Languages2.01 MBDownload
AD225WNMultiple Languages2.16 MBDownload

▎Software

NameVersionSizeOS SupportLink
Virtual Scanner Link2021110358.1 MBWin 7 / 8 / 10Download
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10Download
World Card TeamV1.8.3235 MBWin XP / 7 / 8 / 10Download
ButtonManager V2V3.0.0.0594 MBWin XP / Vista / 7 / 8 / 10Download
AVScan XV1.2.0.0549.39 MBwin XP / Vista / 7 / 8 / 10Download

▎Drivers

NameVersionSizeOS SupportLink
AD225WNVB.20142 MBWin 7 / 8 / 10Download
