Avision FB10 – A Slim Flatbed A4 Scanner

Avision is proud to introduce its slim scanner series. With scan size up to A4, the Avision FB10 is your ideal tool to digitize your business document. Based on the innovative CIS (Contact Image Sensor) technology, the FB10 is only 46 mm (1.8 in.) in height and weights a mere 1.4 kg.

Product Details

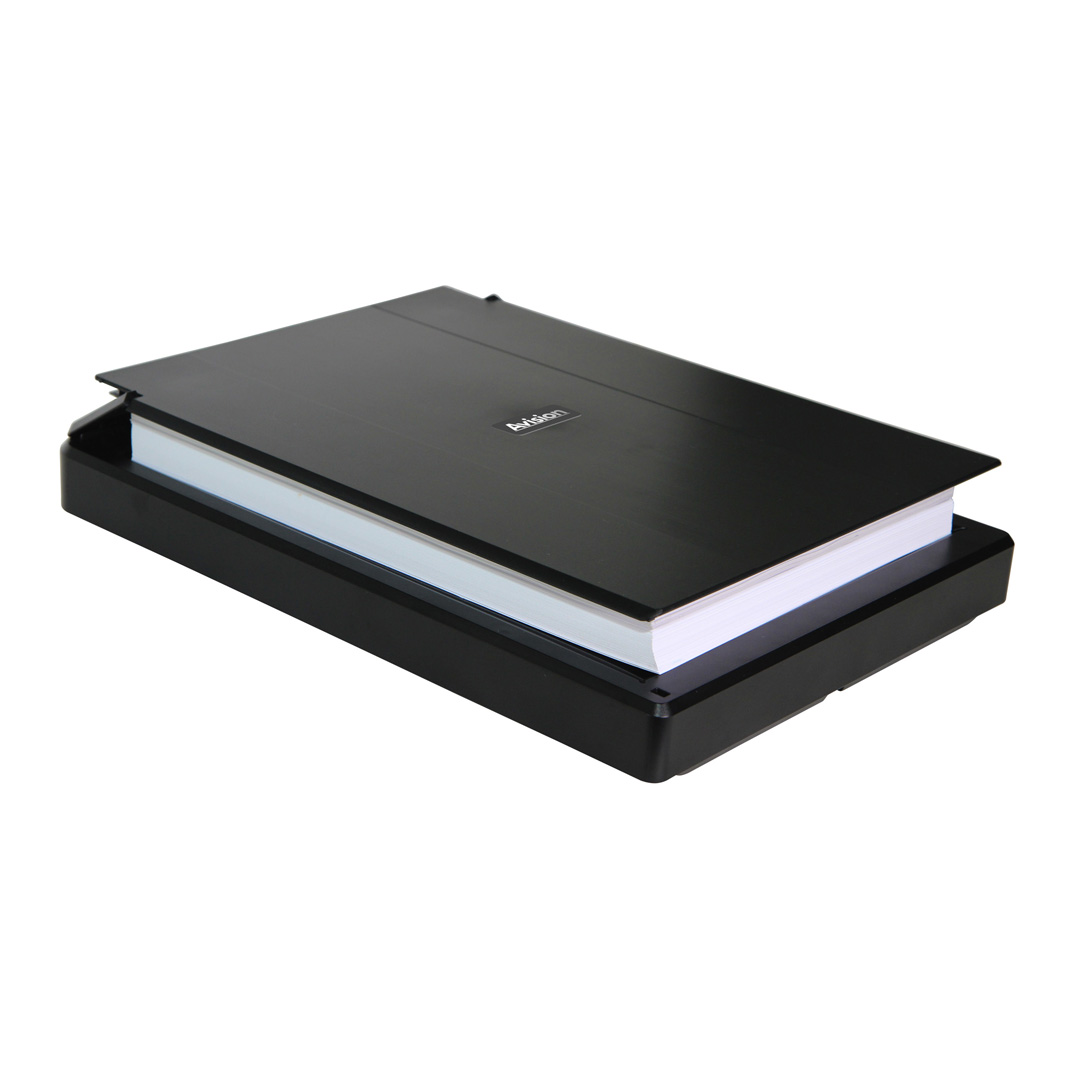

▎An Ideal Solution to Scan Thick Documents

When a thick document or any bulky object needs to scan, the innovative cover can be lifted up to help flattening your item. As a result, an optimized image quality can be easily obtained since the item is more evenly lit.

▎No Power-Cord Required

The FB10 is powered by the USB cable to the PC.  No external power adapter and cords are needed!

▎No Warm Up Needed and Fast Scan Speed

The LED illumination system not only saves power, it doesn’t require any warm up time.  The FB10 is ready to go as soon as you turn it on.  It’s fast too!  It only takes 9 seconds to scan an A4 size document.

▎Advanced settings via TWAIN driver

Avision’s TWAIN user interface provides various image enhancement tools to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!

▎Automatic Multiple Images Cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.



▎Features

  • Ultra slim – 46mm ( 1.8 in. ) in height and 1.4 kg ( 3.1 lb. ) in weight
  • Scan size up to A4 ( 210 x 297 mm )
  • Intelligent cover to scan thick documents or magazines
  • Resolution up to 4800 dpi
  • Scans an A4-size page needs only 9 seconds ( color, 300 dpi )
  • Easy-to-use TWAIN user interface provides various useful features such as auto color detection, color matching, and despeckling to enhance the image quality
  • Automatic multiple image cropping creates multiple images in one scan to save your time
  • High speed USB 2.0 port




▎Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Resolution (dpi)

4800

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Memory Size

16 MB SDRAM

Dimensions (WxDxH)

255 x 355 x 46 mm ( 11.04 x 13.98 x 1.81 in. )

Weight

1.4 kg (3 lb.)

Interface

USB 2.0

Power Consumption

Ready < 1.5 W

Acoustical Noise

Operation < 50 dB;Ready < 45 dB

OS Support

WIN XP, Vista, Win 7, Win 8, Win 10

Scanning Speed
B/W @ 200dpi, A4

9 sec ( Include Backhome 18 sec )

B/W @ 300dpi, A4

9 sec ( Include Backhome 18 sec )

Color @ 200dpi, A4

9 sec ( Include Backhome 18 sec )

Color @ 300dpi, A4

9 sec ( Include Backhome 18 sec )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

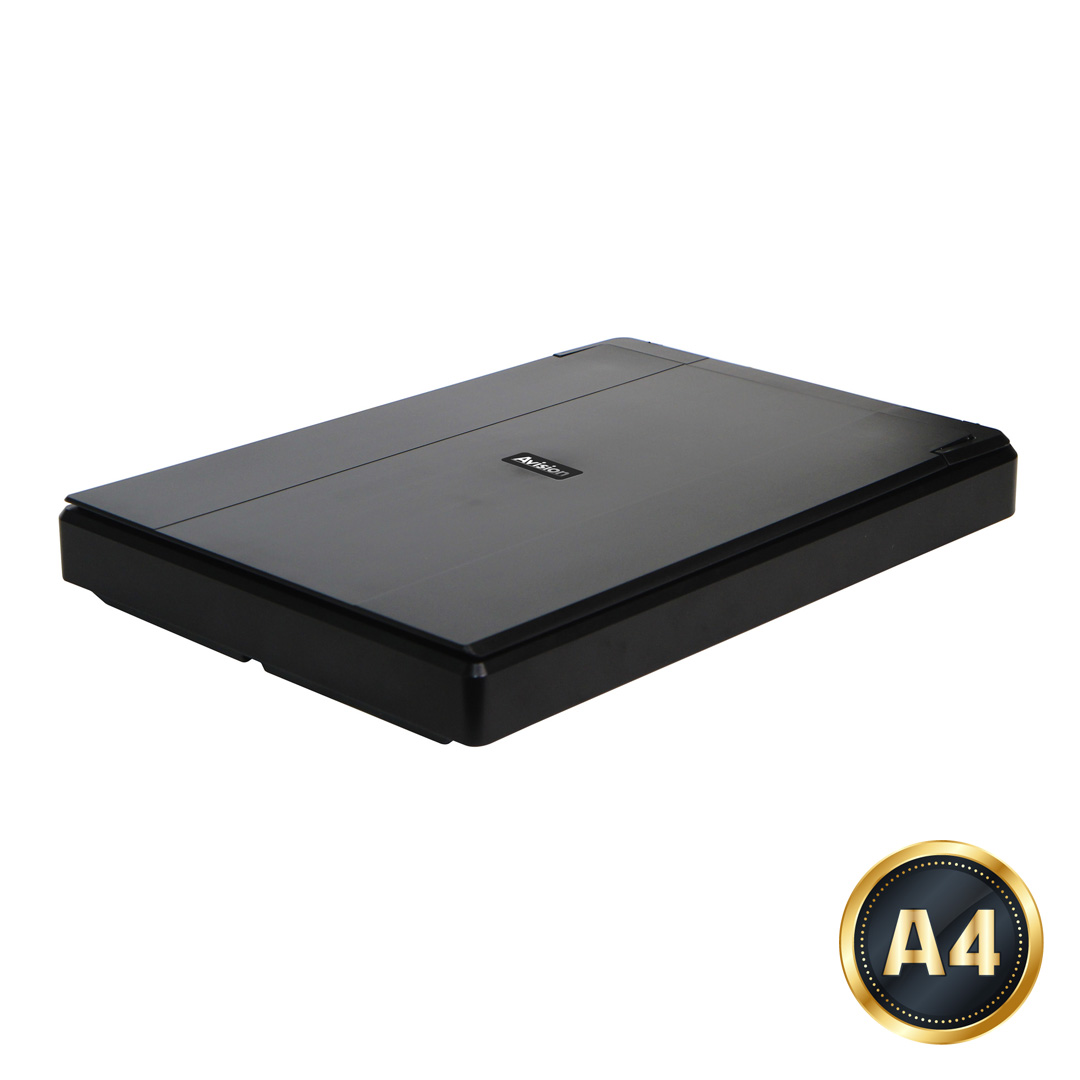

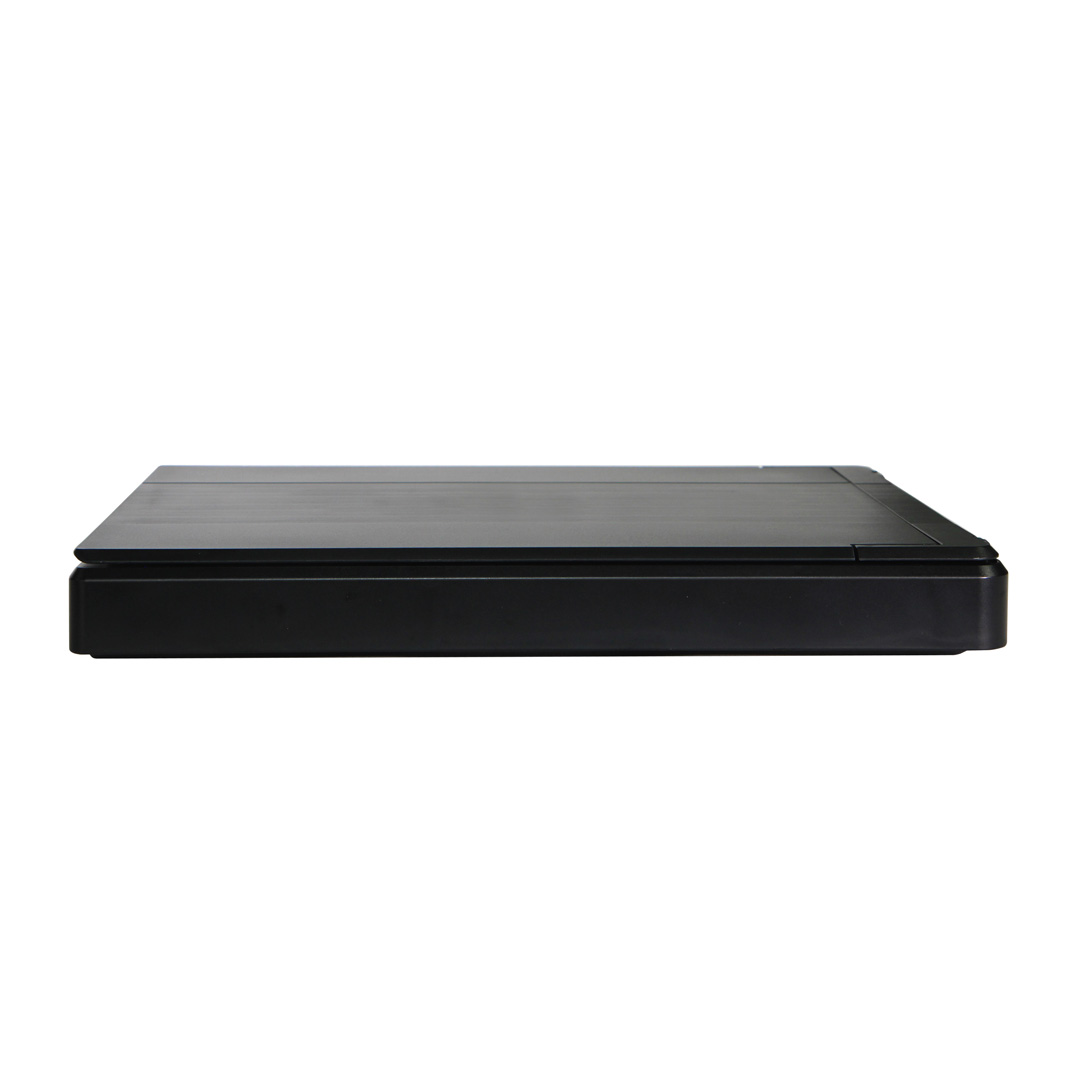

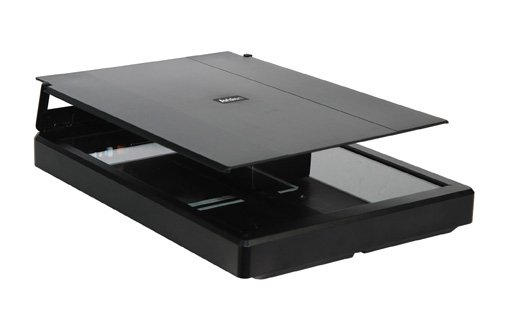

▎Product Photos

200
High resolution Medium resolution Low resolution
19.00 MB 51.37 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
FB10Русский3.64 MBDownload
FB10Português3.22 MBDownload
FB10Polski3.56 MBDownload
FB10한국어3.28 MBDownload
FB10日本語3.45 MBDownload
FB10Italiano3.27 MBDownload
FB10עברית4.24 MBDownload
FB10Français2.84 MBDownload
FB10Español3.40 MBDownload
FB10English3.23 MBDownload
FB10Deutsch2.92 MBDownload
FB10繁體中文3.46 MBDownload
FB10简体中文3.08 MBDownload

▎Brochure

NameVersionSizeLink
FB10Deutsch2,31 MBDownload
FB10English401.50 KBDownload
FB10简体中文642.31 KBDownload
FB10繁體中文678.25 KBDownload

▎Quick Guide

NameVersionSizeLink
FB10简体中文1.07 MBDownload
FB10Multiple Languages1.09 MBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10 / 11Download
AVScan XV1.2.0.0549.39 MBWin XP / Vista / 7 / 8 / 10 / 11Download

▎Drivers

NameVersionSizeOS SupportLink
FB10VB.2225.64 MBWinXP/Vista/Win7/Win8/Win10Download

▎Software

  • When I choose optical resolution to be 600 dpi, the “auto crop” and “deskew” functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform “auto crop” and “deskew” functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.
