FB15

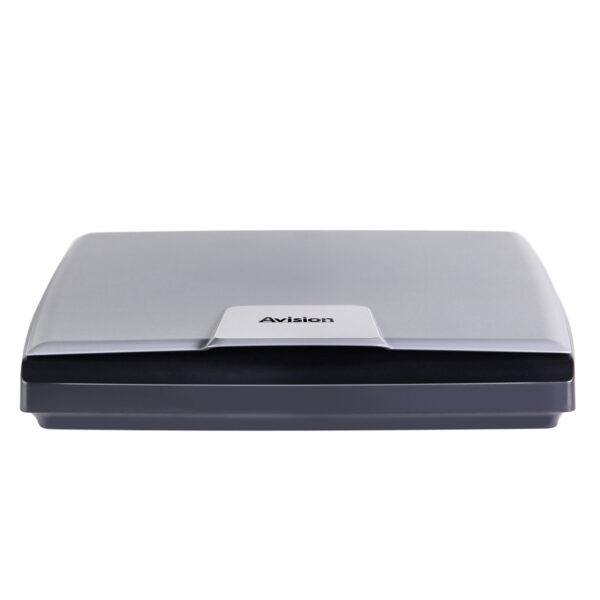

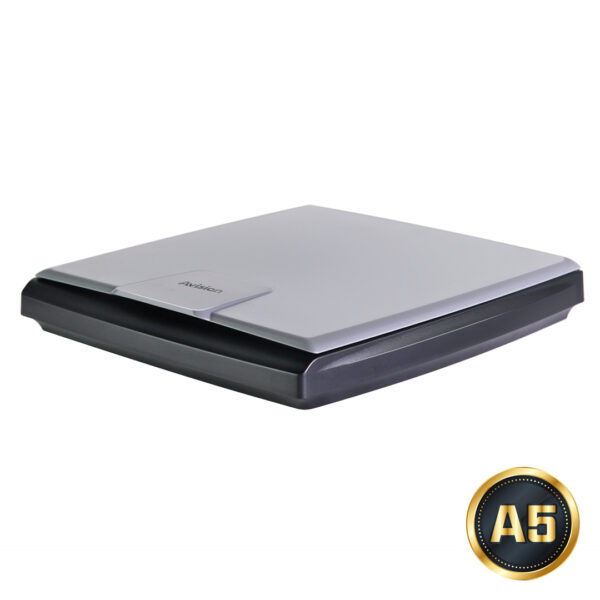

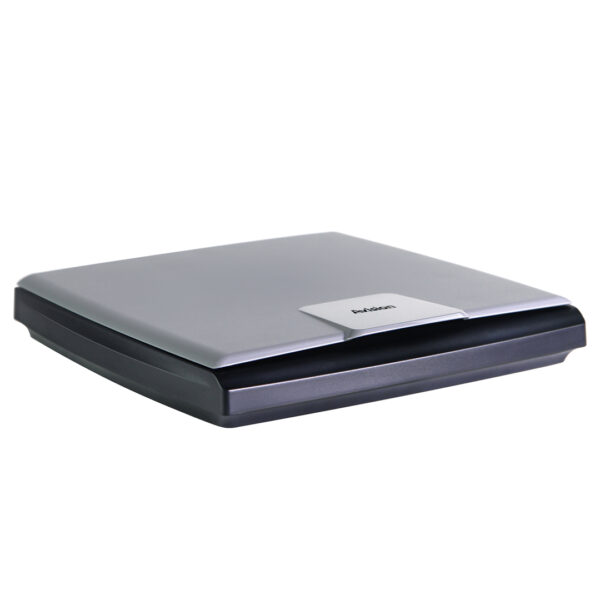

Avision FB15 – A slim, fast and effective flatbed A5 scanner

With scan size up to A5, the Avision FB15 is your ideal scanner for scanning passports, driver license, bank check, ID cards, and photos. Based on the innovative CIS (Contact Image Sensor) technology, the FB15 is only 45mm in height and weights a mere 1.1 kg.

Product Details






▎No Warm Up Needed and Fast Scan Speed

The LED illumination system not only saves power, it doesn’t require any warm up time. The FB15 is ready to go as soon as you turn it on. It’s fast too! It only takes 1 second to scan an A5 size document.

▎Advanced settings via TWAIN driver

Avision’s TWAIN user interface provides various image enhancement tools to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!

▎Automatic Multiple Images Cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.



▎Features

  • Ultra slim – 45 mm in height and 1.1 kg in weight
  • Scan size up to A5 ( 216 x 297 mm )
  • Resolution up to 1200 x 2400 dpi
  • Scans an A5-size page needs only 1 second ( color, 300 dpi )
  • Easy-to-use TWAIN user interface provides various useful features such as auto color detection, color matching, and despeckling to enhance the image quality
  • Automatic multiple image cropping creates multiple images in one scan to save your time
  • High speed USB 2.0 port




▎Certification mark

Learn more

Specification

Paper Size

A5

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Resolution (dpi)

72~1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Memory Size

16 MB SDRAM

Dimensions (WxDxH)

280 x 270 x 42 mm

Weight

1.1 kg.

Interface

USB 2.0

Power Consumption

Operation: 10W | Ready: 4W | Sleep: 2W | Off: <0,3W

Acoustical Noise

Operation < 50 dB;Ready < 45 dB

OS Support

WIN XP, Vista, Win 7, Win 8, Win 10, Win 11

Scanning Speed
B/W @ 200dpi, A4

1 sec. / 2.5 sec. ( including Backhome )

B/W @ 300dpi, A4

1 sec. / 2.5 sec. ( including Backhome )

Color @ 200dpi, A4

1 sec. / 2.5 sec. ( including Backhome )

Color @ 300dpi, A4

1 sec. / 2.5 sec. ( including Backhome )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Brochure

NameVersionSizeLink
FB15Deutsch2,21 MBDownload
FB15English373 KBDownload

▎Drivers

NameVersionSizeOS SupportLink
Mac Driver20240220135 MBMacOS10.12~10.15, MacOS11 Big Sur, MacOS12 Monterey,
MacOS13 Ventura, MacOS14 Sonoma
Download
Linux 32-bit20240221127 MBDebian , UbuntuDownload
Linux 64-bit20240221130 MBDebian , UbuntuDownload
Linux 32-bit20240221127 MBFedora , openSUSEDownload
Linux 64-bit20240221130 MBFedora , openSUSEDownload
