FB25

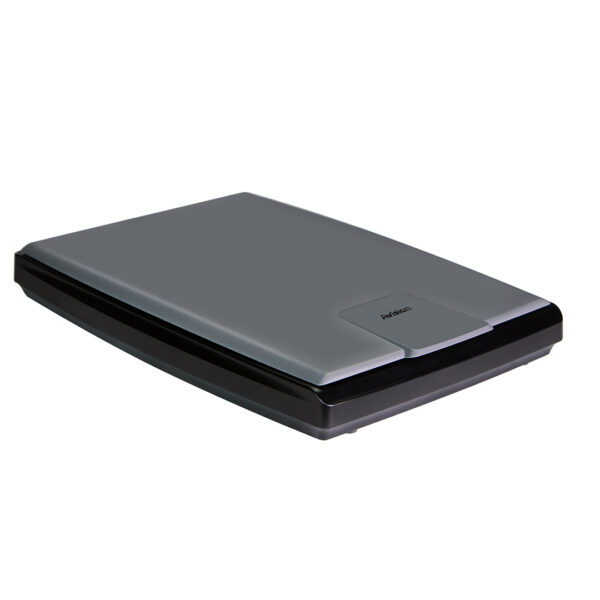

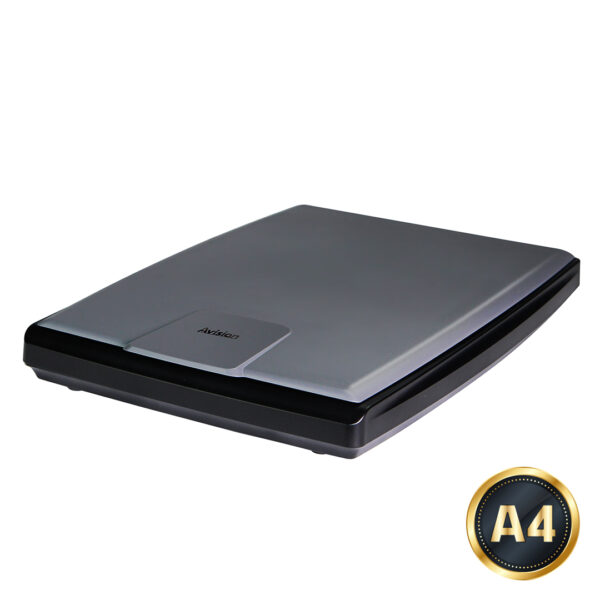

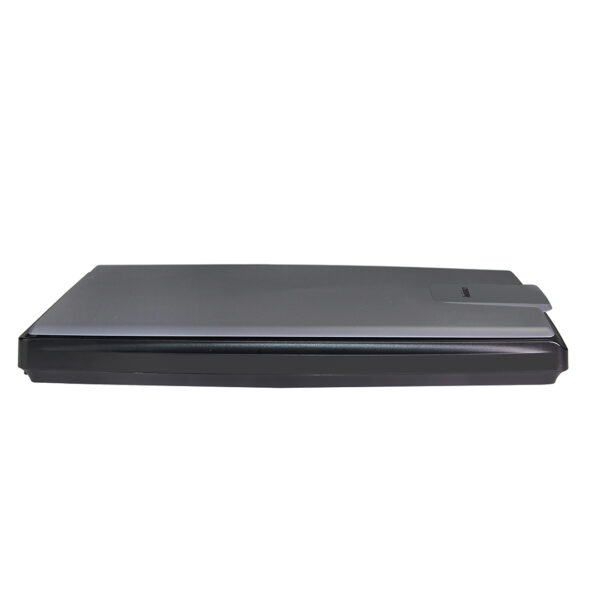

Avision FB25 – A slim, fast and effective flatbed A4 scanner

Avision is proud to introduce its slim scanner series. With scan size up to A4, the Avision FB25 is your ideal tool to digitize your business document. Based on the innovative CIS (Contact Image Sensor) technology, the FB25 is only 45mm in height and weights a mere 1.8 kg.

Product Details






▎No Warm Up Needed and Fast Scan Speed

The LED illumination system not only saves power, it doesn’t require any warm up time. The FB25 is ready to go as soon as you turn it on. It’s fast too! It only takes 7 seconds to scan an A4 size document.

▎Advanced settings via TWAIN driver

Avision’s TWAIN user interface provides various image enhancement tools to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!

▎Automatic Multiple Images Cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.



▎Features

  • Ultra slim – 45 mm in height and 1.8 kg in weight
  • Scan size up to A4 ( 210 x 297 mm )
  • Resolution up to 1200 dpi
  • Scans an A4-size page needs only 1,5 seconds ( color, 300 dpi )
  • Easy-to-use TWAIN user interface provides various useful features such as auto color detection, color matching, and despeckling to enhance the image quality
  • Automatic multiple image cropping creates multiple images in one scan to save your time
  • High speed USB 2.0 port




▎Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Resolution (dpi)

72~1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Memory Size

16 MB SDRAM

Dimensions (WxDxH)

284 x 401 x 45 mm

Weight

1.8 Kg ( 4 lb)

Interface

USB 2.0

Power Consumption

Ready < 1.5 W

Acoustical Noise

Operation < 50 dB;Ready < 45 dB

OS Support

WIN XP, Vista, Win 7, Win 8, Win 10

Scanning Speed
B/W @ 200dpi, A4

1.5 sec ( Include Backhome 3,5 sec )

B/W @ 300dpi, A4

1.5 sec ( Include Backhome 3,5 sec )

Color @ 200dpi, A4

1.5 sec ( Include Backhome 3,5 sec )

Color @ 300dpi, A4

1.5 sec ( Include Backhome 3,5 sec )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Brochure

NameVersionSizeLink
FB25English2.04 MBDownload
FB25Deutsch1,75 MBDownload

▎Software

NameVersionSizeOS SupportLink
AVScan XV1.2.0.0549.39 MBWin XP / Vista / 7 / 8 / 10 / 11Download

▎Drivers

NameVersionSizeOS SupportLink
Mac Driver20240220135 MBMacOS10.12~10.15, MacOS11 Big Sur, MacOS12 Monterey,
MacOS13 Ventura, MacOS14 Sonoma
Download
Linux 32-bit20240221127 MBDebian , UbuntuDownload
Linux 64-bit20240221130 MBDebian , UbuntuDownload
Linux 32-bit20240221127 MBFedora , openSUSEDownload
Linux 64-bit20240221130 MBFedora , openSUSEDownload
