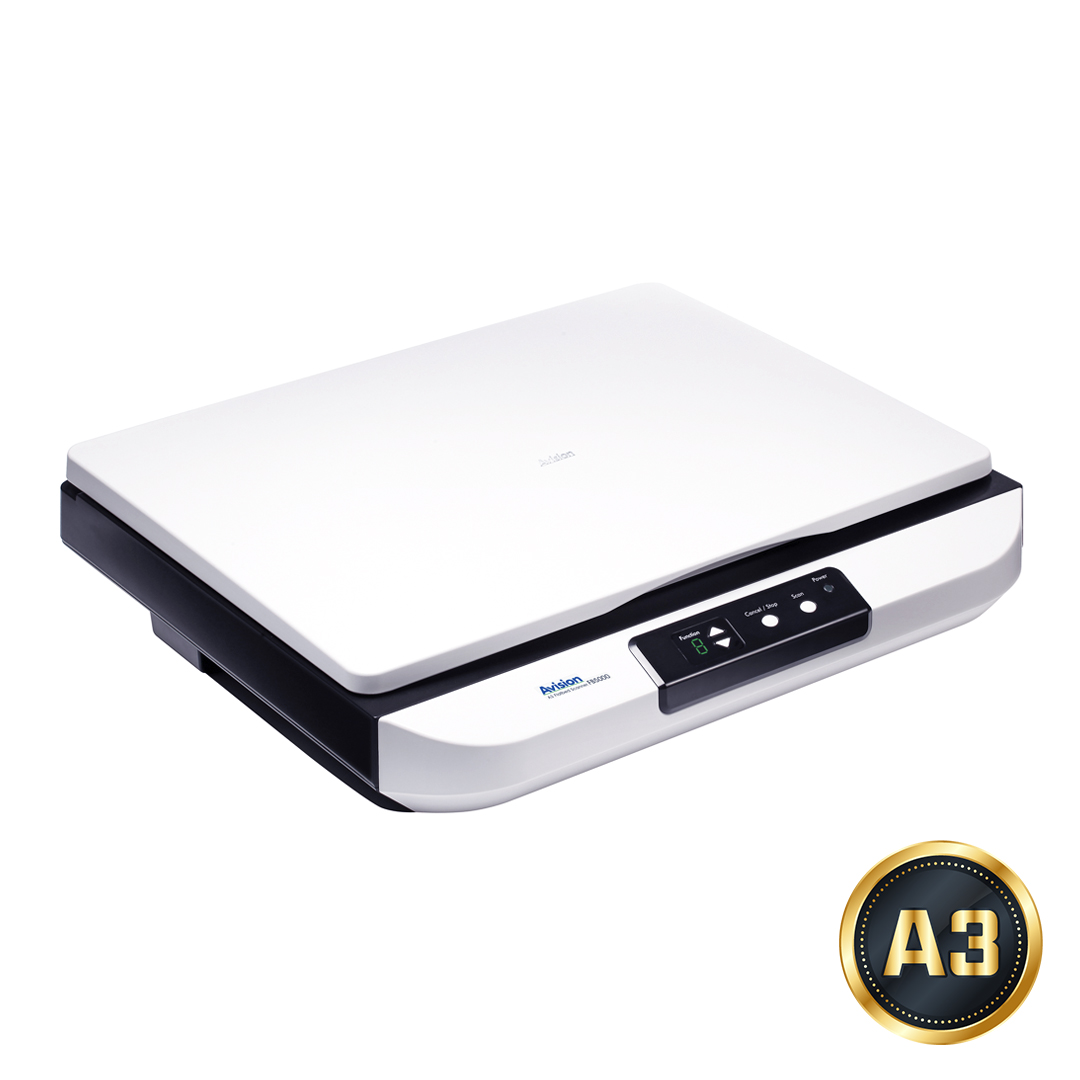

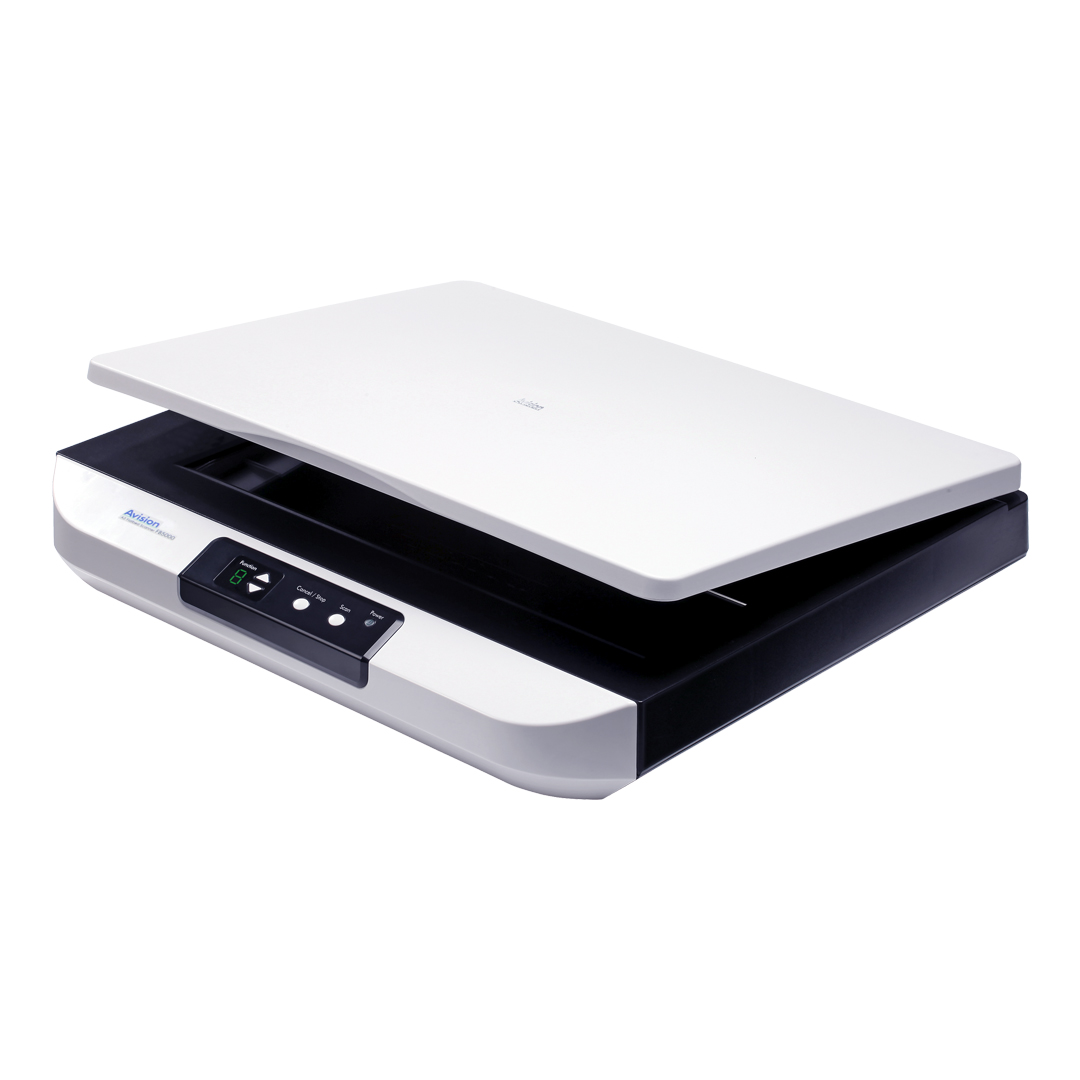

FB5000X

Lightweight, Easy-to-use

The FB5000X is Avision’s next generation of A3 flatbed scanner. Based on CIS ( Contact Image Sensor ) technology, the scanner is much more slimmer compared to traditional scanner with CCD design.

Capable of scanning up to A3 size, the slim FB5000X is perfectly suited to scan complete book spreads, two letter-sized pages ( simultaneously ), large-format magazines, legal-sized documents, photographs and more, all in brilliant color.

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

To increase ease of use, a convenient, programmable button feature permits users topre-set nine customized functions for different scanning needs. For example, you can send your image to nine preset destinations such as printer, e-mail, folder, or photo editing software application in PDF, TIFF, JPEG, GIF, or BMP file format by simply pressing a button.



Product Details






▎Large scanning area ( 304.8 mm x 457.2 mm )

Capable of scanning up to A3 size, the slim FB5000X is perfectly suited to scan complete book spreads, two letter-sized pages ( simultaneously ), large-format magazines, legal-sized documents, photographs and more, all in brilliant color.

▎Automatic multiple images cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

▎Easy-to-use button scanning

To increase ease of use, a convenient, programmable button feature permits users to pre-set nine customized functions for different scanning needs. For example, you can send your image to nine preset destinations such as printer, e-mail, folder, or photo editing software application in PDF, TIFF, JPEG, GIF, BMP, or searchable PDF file format by simply pressing a button.

▎Auto crop, deskew and thresholding image-enhancing features

FB5000X incorporates the latest TWAIN driver with new features and enhancement such as the ability to adjust sensitivity of dynamic threshold, document/photo color matching, custom color dropout, automatic multiple cropping, and reduce despeckle. We are committed to improving the TWAIN driver continuously to enrich your scanning experience as never before.




▎Certification mark

Learn more

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Optical Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

585 x 485 x 96 mm ( 23 x 19.1 x 3.8 in. )

Weight

7 kg ( 15.4 lb. )

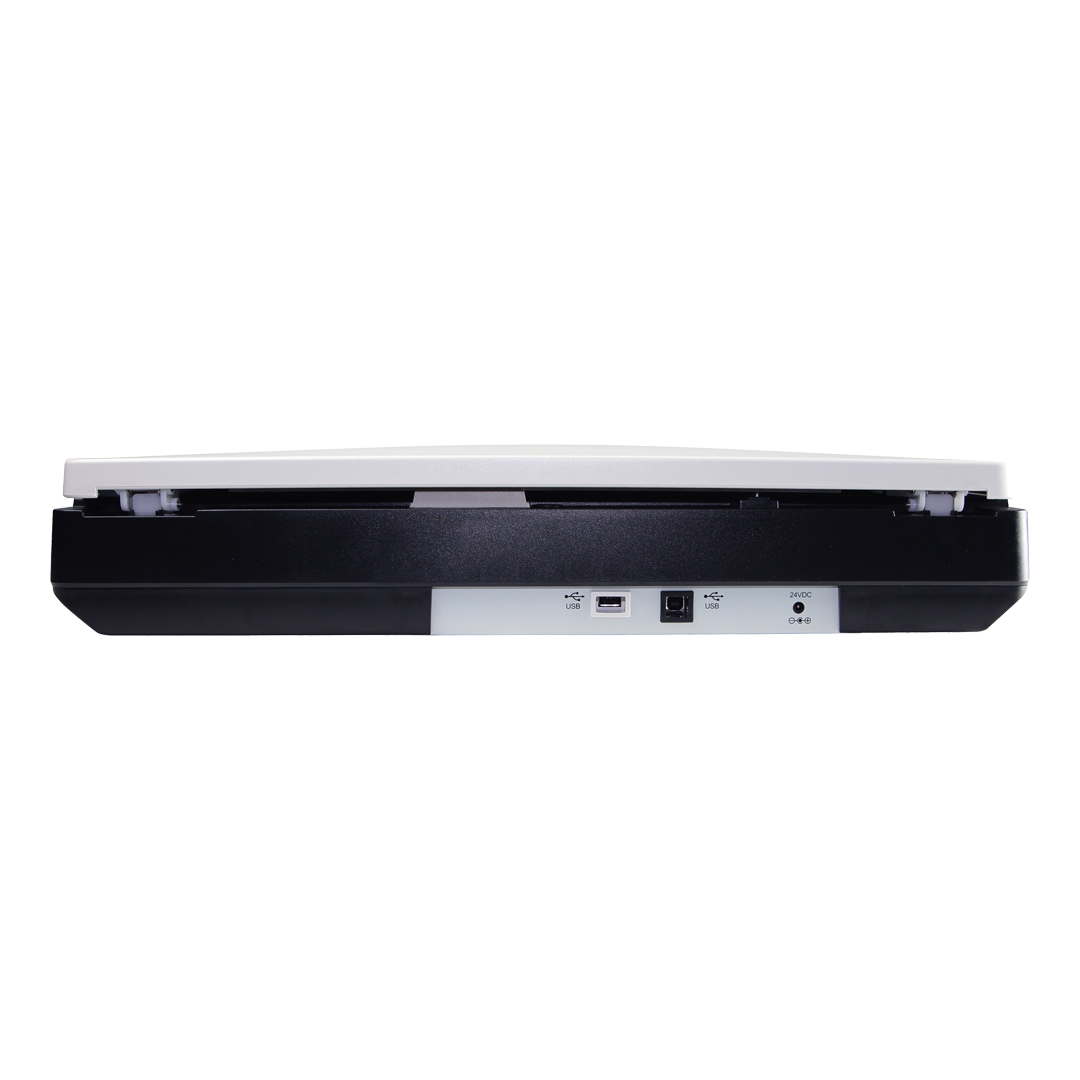

Interface

USB 2.0

Power Consumption

Operation : < 22 W;Stanby : < 15 W;Power saving : < 5 W

Recommended Daily Volume

Up to 2,500 pages

OS Support

WIN XP, Vista, Win 7, Win 8, Win 10, Win2K, Win 8.1

Bundled Software

TWAIN Driver, Button Manager, PaperPort, AVScan, WIA Driver

Scan Size
Flatbed Maximum

304.8 x 457.2 mm

Scanning Speed
B/W @ 200dpi, A3

6 sec. / 10 sec. ( Include Backhome )

B/W @ 300dpi, A3

6 sec. / 10 sec. ( Include Backhome )

Color @ 200dpi, A3

6 sec. / 10 sec. ( Include Backhome )

Color @ 300dpi, A3

6 sec. / 10 sec. ( Include Backhome )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10 / 11Download
World Card TeamV1.8.3235 MBWin XP / 7 / 8 / 10 / 11Download
ButtonManager V2V3.0.0.0594 MBWin XP / Vista / 7 / 8 / 10 / 11Download
AVScan XV1.2.0.0549.39 MBWin XP / Vista / 7 / 8 / 10 / 11Download

▎Instruction

  • How do I clean my Scanner?

    ▸Cleaning the Glass

    The Cleaning Procedures

    1. Moisture a piece of soft cloth with some isopropyl alcohol. (95%)

     2. Open the document cover as shown below.

    3. Gently wipe the document glass.

     4. Close the document cover. Your scanner is now ready for use.

▎Software

  • When I choose optical resolution to be 600 dpi, the “auto crop” and “deskew” functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform “auto crop” and “deskew” functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.
