Trouble Shooting
Steps | Cause | Solution | Parts |
1 | There is dirt in the paper path | Wipe off the dirt. Please refer to <The spacing of the various rollers in the image> table below. | |
2 | Dirt on the transfer roller. | Wipe off the dirt. Please refer to <The spacing of the various rollers in the image> table below. | |
3 | Dirt on the pressure roller in the fuser. | Replace the fuser. | Fuser AM4XA (002-B209-0-SP) AM4XA plus (002-C123-0-SP) |
The spacing of various rollers in the image

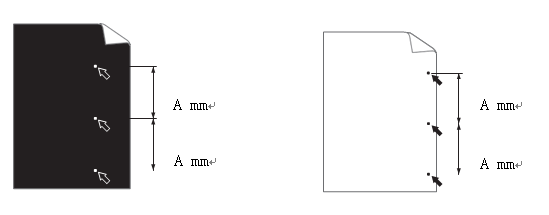

Periodic image defects can be caused by defects in various rollers. Refer to the table below to determine the cause of the defect based on the diameter of the various rollers or the spacing in the image.

The name of the part | The spacing in the image |
Development roller. | 33.1 mm |
Drum Unit (OPC). | 75.4 mm |
Heating roller in the fuser. | 63.58 mm |
