AD6090

A Fast & High-Volume Production Scanner

Avision is pleased to announce its release of the high-volume production scanner with a robust 150-page auto document feeder and a blazing scanning speed of up to 90 ppm/180ipm in Color, Grayscale, and Monochrome. Combining paper protection technology and ultrasonic double-feed detection capability, the AD6090 delivers exceptional feeding reliability to maximize your scanning productivity in a small unit.

Product Details






▍High-Volume Daily Duty Cycle

The scanner can be used to scan up to 24,000 pages per day through the 150-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

▍Dual-lamp Design to Handle Wrinkled Documents

Designed to handle even extreme applications, the AD6090 scanner is built-in with two long-lasting lamps. These mercury-free lamps give you maximum illumination to help eliminate shadows from wrinkled documents.

▍Paper Protection Mechanism

The innovative hardware design to implement various jam sensors on the paper path greatly improves the sensitivity to detect paper jams, which reduces the risk of damaging the document by stopping your scan job.

Plus, the multi-feed detection technology helps detecting overlapping documents that go through the auto document feeder by either detecting extra paper length or paper thickness through triple ultrasonic sensors.

▍Plastic card or ID card uses the straight paper path

To provide scanner users with the most versatile scanning environments, the user has the choice to utilize a “U-Turn or Straight Paper Path”.  By opening the rear cover, users can use the straight path to transport paper direct to the rear of the unit. To utilize the straight paper path ensures high reliability with plastic card, ID card, thick, long paper, or more fragile documents.

▍Paper Protection Technology

The advanced Paper protection technology protects valuable paper from being wrinkled or torn by halting the scan process once a skewed page is detected.

▍A Large LCD Display

The AD6090 is easy to use through the clear 1.8” LCD display. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

▍Scan to Cloud with Button Manager V2

The AD6090 come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort . With Button Manager , you can complete a scan and send the image directly to cloud servers such as Google Drive, Dropbox, Evernote, FaceBook, or Microsoft SharePoint with a press of a button. You can also save the image to searchable PDF, JPEG, BMP, or GIF file format, and scan to e-mail, or image editing application. In addition, the bundled software applications also include AVScan  and PaperPort which are are highly effective document management software to streamline your task more efficiently.



▍Features

  •  Fast, 90 ppm / 180 ipm scanning in color, grayscale and monochrome  ( 300 dpi )
  •  Support form document up to 297 x 432 mm (A3)
  • Robust 150-page (80 g/m²) automatic document feeder
  • Daily duty cycle of up to 24,000 sheets
  • Ultrasonic sensor to enable or disable detection in different areas of document
  • Curved or Straight Paper Path
  • Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
  • Latest USB3.2 Gen1x1 connectivity for faster transmission speed
  • Reverse roller technology delivers outstanding feeding reliability
  • Hard and embossed card scanning up to 1.25 mm in thickness in landscape  feeding
  • Press and scan to cloud servers via the bundled software Button Manager Earth-friendly LED technology
  • Long page scanning up to 6000 mm (236”)
  • Auto power off setting




▎Certification mark

Learn more
PG ONE

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Document feeding mode

ADF

Optical Resolution (dpi)

600 x 600 dpi

Output Resolution (dpi)

1200 x 1200 dpi

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Memory Size

1GB

Dimensions (WxDxH)

Maximum:460 x 680 x 198 mm, Minimum:460 x 310 x 198 mm

Weight

12 kg ( 26.4 lb. )

Interface

USB3.2 Gen1x1

Acoustical Noise

Operation < 58 dB;Standby < 25 dB

Recommended Daily Volume

Up to 24,000 pages

OS Support

Win 7, Win 8, Win 10, Win11

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver

Features
Ultrasonic paper jam detection

Yes

Long Paper Mode

Up to 200 dpi Color Duplex 236 in. ( 6000 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )

Card Scan

Embossed card ( Thickness 1.25 mm )

Scan Size
ADF Minimum

50 x 65 mm ( Single-pages );50 x 85 mm ( Multi-pages )

ADF Maximum

308 x 432 mm (A3) (12.15 x 17 in)

ADF Capacity

150 sheets ( A4 : 80 g/m² or 20 lb. )

Paper Weight (Thickness )

Straight Path : 27 ~413 g/m² ( 7 – 110 lb. ), U-Turn Path : 27 ~ 105 g/m² ( 7 – 28 lb. )

Scanning Speed
B/W @ 200dpi, A4

Simplex : 90 ppm;Duplex : 180 ipm

B/W @ 300dpi, A4

Simplex : 90 ppm;Duplex : 180 ipm

Color @ 200dpi, A4

Simplex : 90 ppm;Duplex : 180 ipm

Color @ 300dpi, A4

Simplex : 90 ppm;Duplex : 180 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Product Photos

200
High resolution Medium resolution Low resolution
18.71 MB 759.58 KB 200.85 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
AD6090Русский6.46 MBDownload
AD6090Português17.85 MBDownload
AD6090Polski8.11 MBDownload
AD6090한국어16.39 MBDownload
AD6090日本語8.32 MBDownload
AD6090Italiano6.37 MBDownload
AD6090עברית8.65 MBDownload
AD6090Français7.26 MBDownload
AD6090Español6.36 MBDownload
AD6090English11.78 MBDownload
AD6090Deutsch7.63 MBDownload
AD6090繁體中文8.01 MBDownload
AD6090简体中文7.91 MBDownload

▎Brochure

NameVersionSizeLink
AD6090繁體中文648 KBDownload
AD6090Português1.59 MBDownload
AD6090English496 KBDownload
AD6090Deutsch650.17 KBDownload
AD6090简体中文636 KBDownload

▎Quick Guide

NameVersionSizeLink
AD6090简体中文1.66 MBDownload
AD6090Multiple Languages2.71 MBDownload

▎Software

NameVersionSizeOS SupportLink
ButtonManager V23.1.0.0344 MBWin 7 , Win 8 , Win 10 , Win 11Download
PaperPort14455.79 MBWin 7 , Win 8 , Win 10 , Win 11Download
World Card TeamV3.0.0.0(WCT)235 MBWin 7 , Win 8 , Win 10 , Win 11Download
AVScan X1.2.1.1549.70 MBWin 7 , Win 8 , Win 10 , Win 11Download

▎Drivers

NameVersionSizeOS SupportLink
Linux 64-bit20240221130 MBFedora , openSUSEDownload
Linux 32-bit20240221127 MBFedora , openSUSEDownload
Linux 64-bit20240221130 MBDebian , UbuntuDownload
Linux 32-bit20240221127 MBDebian , UbuntuDownload
Mac Driver20240221138 MBmacOS10.12~10.15 ,macOS11 Big Sur ,
macOS12 Monterey ,macOS13 Ventura ,macOS14 Sonoma
Download
AD6090VB.23143.16 MBWin 7 , Win 8 , Win 10Download

Accessories

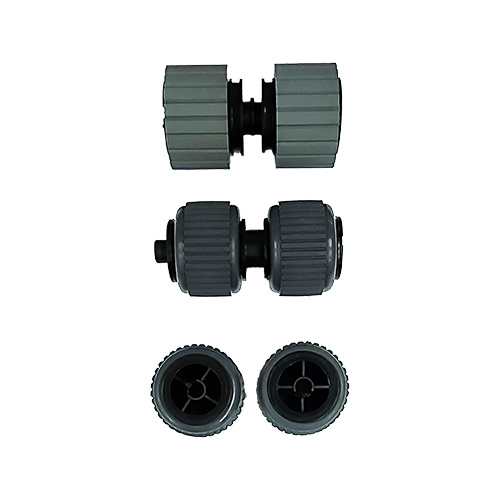

003-8403-0

▍Consumable kit

Lifetime: Every 500,000 sheets.

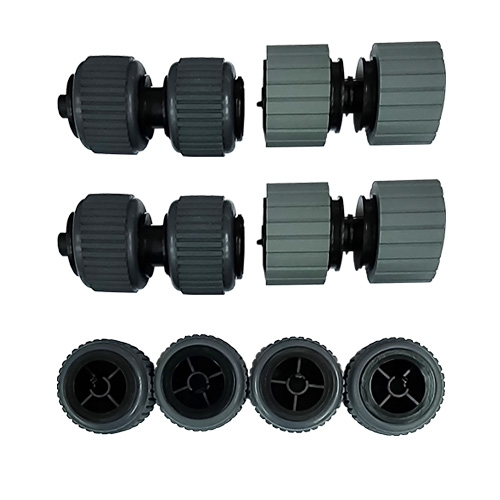

003-8404-0-SP

▍Consumable kit

Lifetime: Every 1,000,000 sheets.

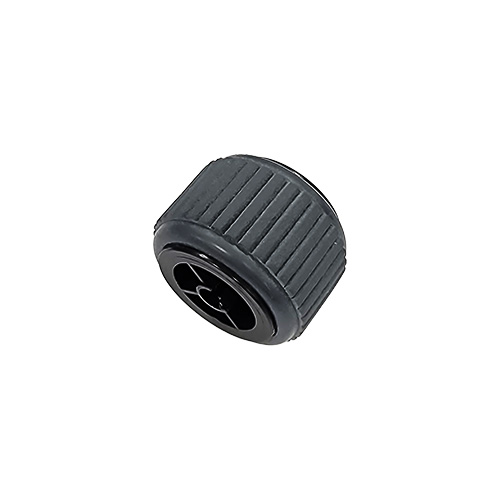

002-C041-0

▍Pick-up roller

Lifetime: Every 500,000 sheets.

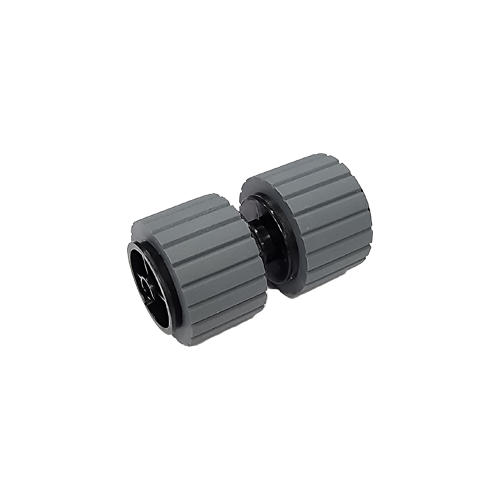

002-C042-0

▍ADF roller

Lifetime: Every 500,000 sheets.

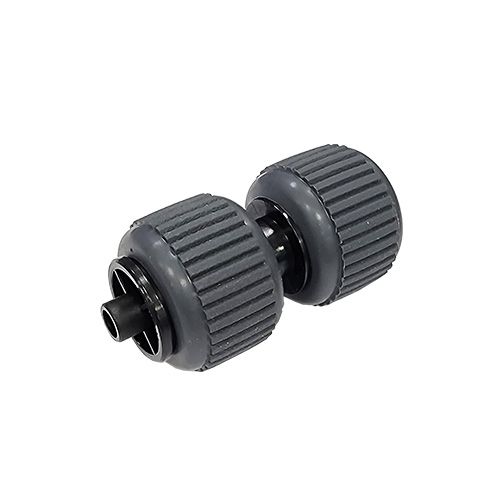

002-B975-0

▍Reverse roller

Lifetime: Every 500,000 sheets.

▎Instruction

  • Others: Recognize Fail.

    Icon / LED

    User Check

    1. Check if the scanner has been connected to a computer via a USB cable.

    AD200/300 series scanner

    AD6000/8000 series scanner

    2. Check if the scanner driver has been installed.
    3. Or you may check if the right driver has been successfully installed by choosing Device Manager>Image Device from the Control Panel.

    4. Or else try to replace another USB cable.

  • Image Problem: Moire Pattern.

    User Check

    1. Open TWAIN user interface. In the Image tab, select 600 dpi from the Resolution option and try again.

  • Others: No Power.

    User Check

    1. Check if the scanner has been connected properly to a power source.

    AD200/300 series scanner

    AD6000/8000 series scanner

  • When the scanner is powered on, it makes noises and won’t stand ready.

    There are two possibilities:

    1.You might fail to push the scanner shipping lock to its “unlocked” position. If this is the case, pull the scanner status switch to its “unlocked” position first.

    2.The scanner is not placed on an even, flat desktop surface. This may cause the scanner to malfunction.

  • Paper becomes skewed in the scanner.

    1.Use the slide guide to keep the paper path straight.

    2.Check the condition of the feeding roller. If necessary, follow the cleaning directions in User Manual and perform the cleaning.

▎Software

  • Image Problem: Color Variation.

    User Check

    1. Open TWAIN user interface. In the Image tab, we suggest to select Document from the Color Matching option and try again if your scan the documet of offical type.

  • Others: Button didn't Work.

    User Check

    1. Please verify if you mean you can not perform a scan by pressing the Scan button on the scanner. If so, make sure that Button Manager V2 has been installed on your computer. Then launch Button Manager V2, the Button Manager icon will be displayed on the system tray.

    2. Or check if the Windows Image Acquisition (WIA) service has been started by selecting Control Panel>All Control Panel Items>Administrative Tools>Service.

    3.Finally, make sure you have installed .Net framework 4.5.1 & C++ 2010/2015 on your computer. You can find the program in the path C:\Program Files (x86)\Avision\Button Manager\Prerequisite and install them all.

  • Image Problem: Gray Background.

    User Check

    1. Open TWAIN user interface. In the Image tab, select your choice to fit your original from the Color Matching option and try again. Or you may enhance the level of contrast.

  • When I choose optical resolution to be 600 dpi, the "auto crop" and "deskew" functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform "auto crop" and "deskew" functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

▎Hardware Related

  • Error Code 2024: NVRAM R/W Test Error.

    Icon

    User Check

    1. Turn your scanner off and on.

    2. If the problem still happen, please kindly check the serial number on your scanner label first, then click the following "Ask to help" option to full the form then feedback to us, thanks.

  • Paper becomes jammed during scanning.

    1. Open the front door.

    2. Pull out the jammed paper carefully.

    3. Close the front door.

×
×
