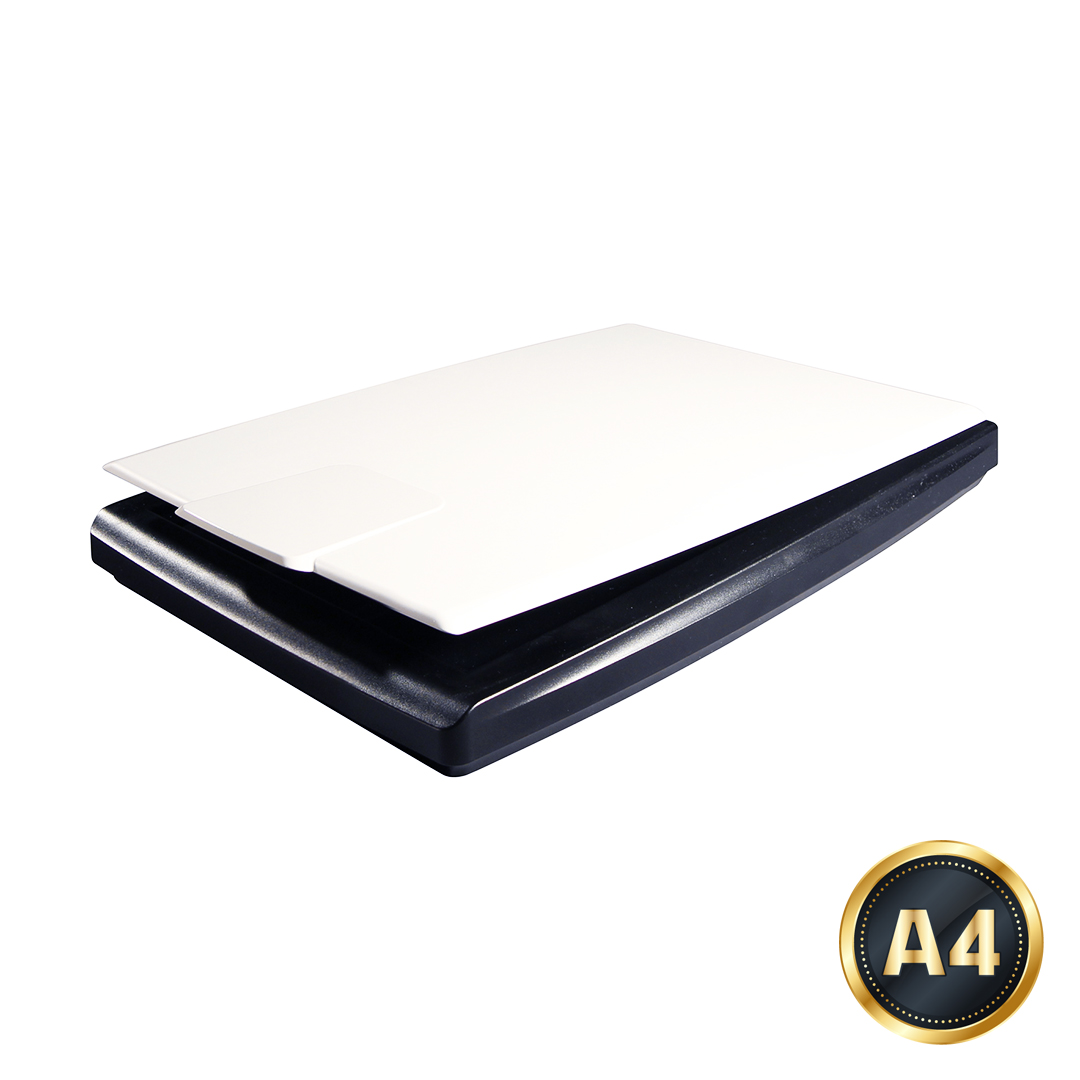

FB1000N

A Slim Flatbed A4 Scanner

Avision is proud to introduce its slim scanner series. With scan size up to A4, the Avision FB1000N is your ideal tool to digitize your business document. Based on the innovative CIS (Contact Image Sensor) technology, the FB1000N is only 1.7” in height and weights a mere 1.8 kg.

Product Details






▎No Power-Cord Required

The FB1000N is powered by the USB cable to the PC. No external power adapter and cords are needed!

▎High Optical Resolution of 1200 dpi

Despite its small footprint, the FB1000N is big on resolution. With a true optical resolution of 1200 dpi, the FB1000 is able to reproduce image in fine detail and subtle shade.

▎No Warm Up Needed and Fast Scan Speed

The LED illumination system not only saves power, it doesn’t require any warm up time. The FB1000N is ready to go as soon as you turn it on. It’s fast too! It only takes 7 seconds to scan an A4 size document.

▎Advanced settings via TWAIN driver

Avision’s TWAIN user interface provides various useful features to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!

▎Automatic Multiple Images Cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.



▎Features

  • Ultra slim – 1.7 inches in height and 1.8 kg (4 lbs) in weight
  • Scan size up to A4 (8.5” x 11.7”)
  • Optical resolution up to 1200 dpi
  • Scans an A4-size page needs only 7 seconds (color, 300 dpi)
  • Easy-to-use TWAIN user interface provides various useful features such as auto color detection,color matching, and despeckling to enhance the image quality
  • Automatic multiple image cropping creates multiple images in one scan to save your time
  • High speed USB 2.0 port




▎Certification mark

Learn more



Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Document feeding mode

Flatbed

Optical Resolution (dpi)

1200

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

284 x 401 x 45 mm (11.18 x 15.79 x 1.77 in.)

Weight

1.8 Kg ( 4 lb)

Interface

USB 2.0

Power Consumption

Standby <1.5W

Acoustical Noise

Operation < 50 dB;Ready < 45 dB

OS Support

WIN XP, Vista, Win 7, Win 8, Win 10, Win 8.1

Scanning Speed
B/W @ 200dpi, A4

7 sec ( Include Backhome 13 sec )

B/W @ 300dpi, A4

7 sec ( Include Backhome 13 sec )

Color @ 200dpi, A4

7 sec ( Include Backhome 13 sec )

Color @ 300dpi, A4

7 sec ( Include Backhome 13 sec )

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

▎Product Photos

200
High resolution Medium resolution Low resolution
15.19 MB 396.19 KB 64.18 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
FB1000NРусский947.07 KBDownload
FB1000NPortuguês805.44 KBDownload
FB1000NFrançais799.18 KBDownload
FB1000N한국어912.15 KBDownload
FB1000N日本語911.07 KBDownload
FB1000NItaliano806.04 KBDownload
FB1000NEspañol758.57 KBDownload
FB1000NEnglish795.95 KBDownload
FB1000NDeutsch804.00 KBDownload
FB1000N繁體中文874.43 KBDownload
FB1000N简体中文1.10 MBDownload
FB1000NPortuguês2.45 MBDownload
FB1000N한국어2.84 MBDownload
FB1000N日本語3.00 MBDownload
FB1000NItaliano2.81 MBDownload
FB1000Nעברית3.38 MBDownload
FB1000NFrançais2.74 MBDownload
FB1000NEspañol3.17 MBDownload
FB1000NEnglish3.03 MBDownload
FB1000NDeutsch2.57 MBDownload
FB1000N繁體中文3.37 MBDownload
FB1000N简体中文3.13 MBDownload

▎Brochure

NameVersionSizeLink
FB1000NEnglish392.80 KBDownload
FB1000NEspañol376.55 KBDownload
FB1000N简体中文451.85 KBDownload

▎Quick Guide

NameVersionSizeLink
FB1000NMultiple Languages1.12 MBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin 7 , Win 8 , Win 10Download
AVScan XV1.2.0.0549.39 MBWin 7 , Win 8 , Win 10Download

▎Drivers

NameVersionSizeOS SupportLink
FB1000NVB.1126.99 MBWinXP/Vista/Win7/Win8/Win10Download

▎Software

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • When I choose optical resolution to be 600 dpi, the “auto crop” and “deskew” functions will be disabled.

    Since to perform auto crop and deskew consumes great deal of system memory, it is suggested if you wish to perform “auto crop” and “deskew” functions, please choose your optical resolution to be smaller than 600 dpi to prevent a error message.

  • ▎Instruction

  • How do I clean my Scanner?

    ▸Cleaning the Glass

    The Cleaning Procedures

    1. Moisture a piece of soft cloth with some isopropyl alcohol. (95%)

     2. Open the document cover as shown below.

    3. Gently wipe the document glass.

     4. Close the document cover. Your scanner is now ready for use.
