FB2280E

Leading Edge in Book Scanning

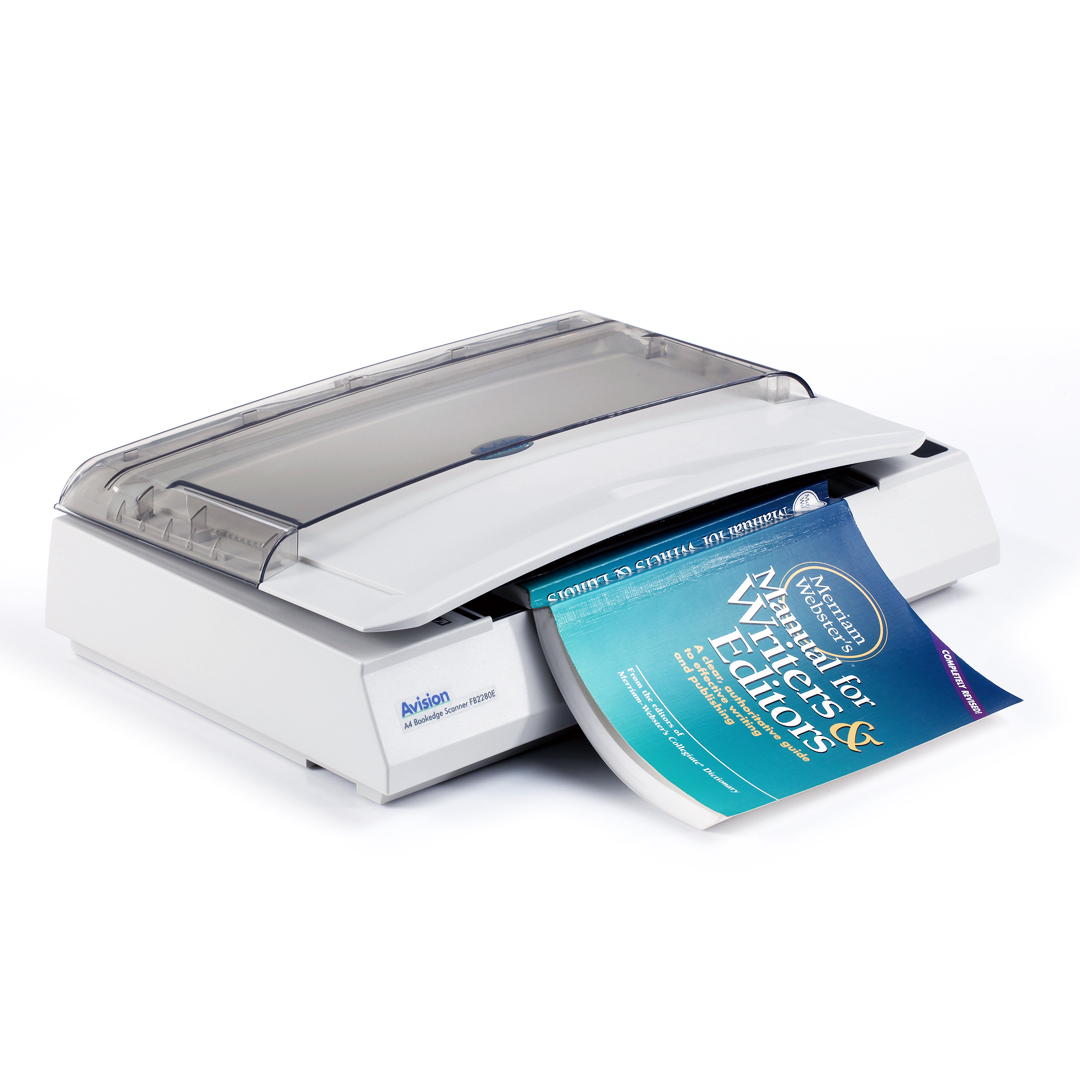

Avision’s book edge scanners feature a unique, innovative flatbed platform, with a slanted front edge engineered to accommodate books in a way that prevents the dark, shadowy area near the spine from appearing. Curved text often seen near the center is also eliminated, since this special design allows pages to spread flat on the scanner. Never again would you need to press the book against the scanner, which distorts the scanned image and potentially damages the book. Avision makes book scanning a breeze!

The Avision FB2280E is designed from the ground up to excel at scanning books. Packed with CCD sensors and a 600 dpi optical resolution, it can produce high quality A4 scans in 4 seconds at 200 dpi in black and white.

Another unique feature of the FB2280E is the document cover. With this cover, you can temporarily place your documents safely on the scanner, reducing the risk of misplacing them during scanning.

An optional ADF add-on is available for the FB2280E, with a 50 sheet capacity and a maximum document size of 21.6 x 36.5cm.

Product Details






▎The slant front platform makes book scan easy as a breeze

With the innovative and patented front platform, the Avision FB2280E allows you to easily scan books and deliver clear images within 2mm of the book spine. Shadow and text distortion commonly found on books scanned by traditional scanners are no longer existed.

▎High Qualities Scanning Solution

The FB2280E’s core image processing components are CCD based with a 600 dpi optical resolution, enabling it to output picture perfect quality while meeting the most stringent demands of business professionals anywhere.

▎Automatic multiple images cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

▎Easy-to-use button scanning

With the bundled software “Button Manager”, you can create searchable pdf file directly after pressing the button on the scanner. Pages are automatically cropped and rotated to the correct orientation and then saved to your choice of file formats including PDF, TIFF, JPEG, GIF, BMP, or searchable PDF. The program also lets you pre-set nine customized functions or destination application such as e-mail, printer, or other photo editing software application for a variety of scanning tasks.

▎Auto crop, deskew and thresholding image-enhancing features

FB2280E incorporates the latest TWAIN driver with new features and enhancement such as the ability to adjust sensitivity of dynamic threshold, document/photo color matching, custom color dropout, automatic multiple cropping, and reduce despeckle. We are committed to improving the TWAIN driver continuously to enrich your scanning experience as never before.




▎Certification mark

Learn more

Specification

General Specification
Technology

Charged-Coupled Device ( CCD )

Light Source

LED

Document feeding mode

Flatbed, ADF (optional)

Optical Resolution (dpi)

600

Output Resolution (dpi)

1200

File Formats

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Halftone Patterns

Dither and Error Diffusion

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

Dimensions (WxDxH)

253 x 160 x 55 mm ( 10 x 6.3 x 2.2 in )

Weight

6.5 kg ( 14.3 lb )

Interface

USB 2.0

Power Consumption

Operation: < 30 W;Stanby: < 10 W;Power saving: < 5 W

Recommended Daily Volume

Up to 2,500 pages

OS Support

WIN XP, Vista, Win 7

Bundled Software

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan

Scan Size
ADF Minimum

114 x 139 mm ( 4.5 x 5.5 in ) (Option ADF)

ADF Maximum

216 x 356 mm (Legal) ( 8.5 x 14 in ) (Option ADF)

ADF Capacity

50 sheets ( Optional ADF )

Paper Weight (Thickness )

49~ 120 g/m² ( 13 to 32 lb. ) ( Optional ADF )

Scanning Speed
B/W @ 200dpi, A4

4 sec. / 5.5 sec. (Include Backhome)

B/W @ 300dpi, A4

4 sec. / 5.5 sec. (Include Backhome)

Color @ 200dpi, A4

4 sec. / 5.5 sec. (Include Backhome)

Color @ 300dpi, A4

4 sec. / 5.5 sec. (Include Backhome)

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

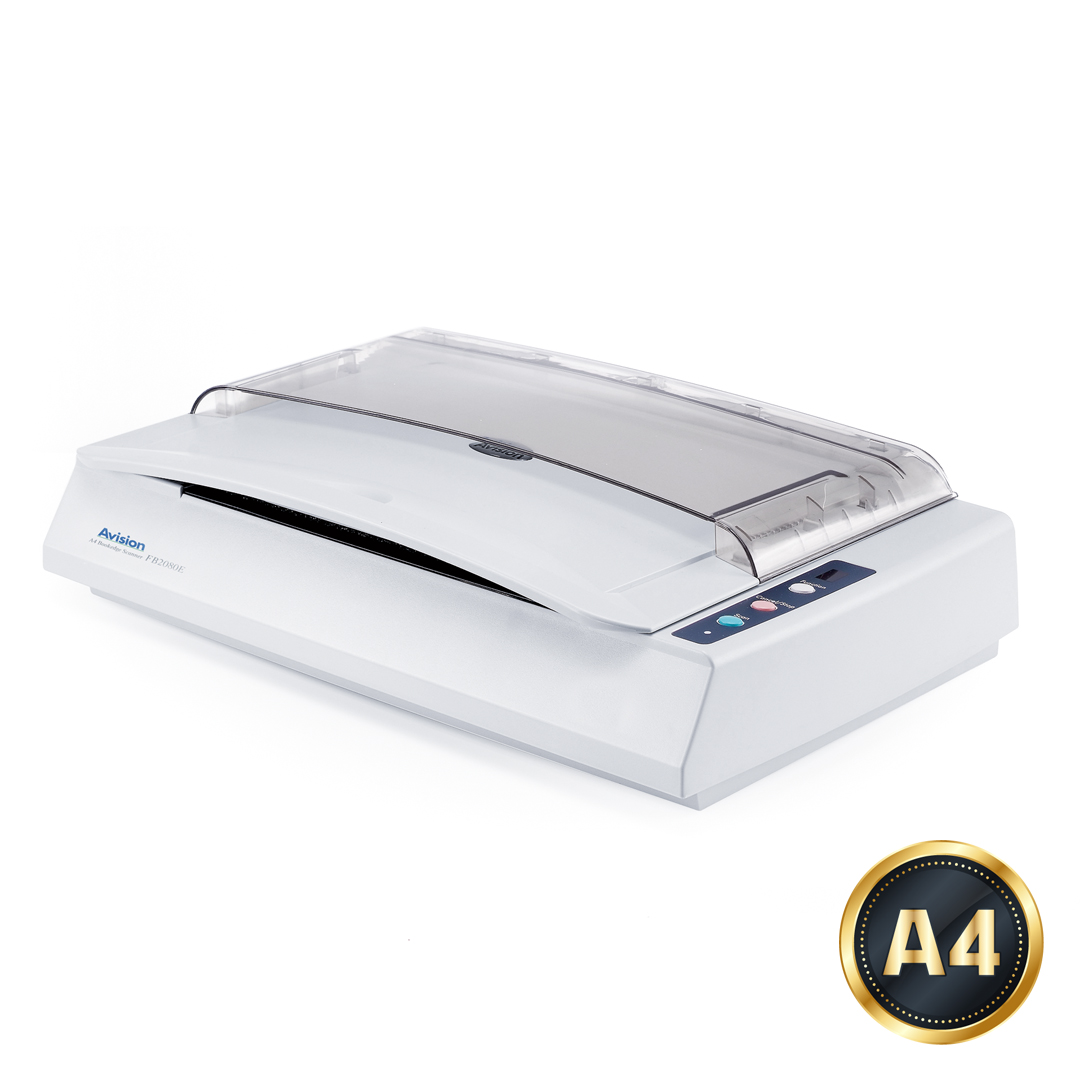

▎Product Photos

200
High resolution Medium resolution Low resolution
3.01 MB 277.36 KB 55.02 KB
DownloadDownloadDownload

▎User Manual

NameVersionSizeLink
FB2280EРусский3.88 MBDownload
FB2280EPortuguês4.42 MBDownload
FB2280EPolski4.06 MBDownload
FB2280E한국어4.63 MBDownload
FB2280E日本語4.48 MBDownload
FB2280EItaliano3.87 MBDownload
FB2280EFrançais3.69 MBDownload
FB2280EEspañol3.70 MBDownload
FB2280EEnglish3.71 MBDownload
FB2280EDeutsch3.88 MBDownload
FB2280E繁體中文4.11 MBDownload
FB2280E简体中文4.06 MBDownload

▎Brochure

NameVersionSizeLink
FB2280E繁體中文408.49 KBDownload
FB2280EBrazilian Portuguese97.35 KBDownload
FB2280E简体中文364.69 KBDownload
FB2280EEnglish221.00 KBDownload

▎Software

NameVersionSizeOS SupportLink
PaperPort14455.79 MBWin XP / Vista / 7 / 8 / 10Download
World Card TeamV3.0.0.0(WCT)235 MBWin XP / 7 / 8 / 10Download
ButtonManager V2V3.0.0.0594 MBWin XP / Vista / 7 / 8 / 10Download
AVScan XV1.2.0.0549.39 MBwin XP / Vista / 7 / 8 / 10Download

▎Drivers

NameVersionSizeOS SupportLink
FB2280EVB.2226.76 MBWin XP, Win Vista, Win 7, Win Download

▎Software

  • The scanner works well except for the line art image. The lines in the image seem to be much thicker than the original one.

    Increase the Brightness or adjust the Threshold setting to improve line art image.

  • Why does my scanned image always come out too dark?

    1. Please adjust the screen settings to sRGB.

    2.Please adjust the brightness settings on the screen from application software.

  • ▎Instruction

  • How do I clean my Scanner?

    ▸Cleaning the Glass

    The Cleaning Procedures

    1. Moisture a piece of soft cloth with some isopropyl alcohol. (95%)

     2. Open the document cover as shown below.

    3. Gently wipe the document glass.

     4. Close the document cover. Your scanner is now ready for use.

  • ▎Hardware Related

  • The scanner is powered on, but the lamp does not light up.

    The lamp is probably out of order. Contact your local dealer or distributor to replace the lamp. For your information, the average life time of the lamp is about 15,000 hours and the operating temperature for the scanner is between 10°C(50°F) and 40°C(104°F).

  • While scanning, the scanner often makes noises, or it scans back and forth.

    Usually this means the memory of your computer is not enough or the speed of your CPU too slow. Please try to increase your memory to at least 32M or replace your CPU with Pentium or later.
