ScanQ-SW

The Avision ScanQ SW –Duplex, Mobile Scanner

A mobile scanner perfect for the mobile professional

Product Details






▍A mobile scanner that scans anywhere, anytime

Powered by a rechargeable Li-Ion battery at just over 12″ long and weighing just over 1 lb., the Avision ScanQ SW is small and lightweight to be packed into your briefcase and lets you digitize your documents from just about anywhere, anytime.

No power cord required

The Avision ScanQ SW is powered by a rechargeable Li-Ion battery.  No external power adapter and cords are needed!



▍A duplex scanner suited for document and photos

Thanks to the advanced straight paper path and image processing technology, documents with varies sizes and weights can be scanned, appropriately cropped, and ready to use. You can scan your business cards, receipts, photos, invoices, newspaper clipping, or documents up to legal size (14”).





▍No Warm Up Needed and Fast Scan Speed

The LED illumination system not only saves power, it doesn’t require any warm up time.  The ScanQ SW is ready to go as soon as you turn it on and it’s fast too!  It only takes a few seconds to scan an A4 size document.

▍Convenient mobile scanning

With a built-in Wi-Fi module, the ScanQ SW is able to wirelessly connect to your mobile device and lets your mobile device directly instruct a scan and receive a scanned image. Simply download PaperAir app from Google Play or App Store and install it onto your mobile device.





▍Scan to Clouds via PaperAirX

Alternatively, the ScanQ SW is able to connect to your computer to access advanced image processing features. With PaperAirX, you can scan and send the images to E-mail, printer, and popular cloud servers including Google DriveTM, Evernote®, Dropbox®, and Microsoft SharePoint to share your documents fast and easily.  What is best, with the built-in OCR (Optical Character Recognition) engine, the PaperAirX allows you to create a full-text searchable file in just one button.



▍Features

  • Portable Power via Li-ion Battery – no wall outlet required
  • 1-Sided scanning up to legal size (5” x 14”)
  • High Optical Resolution: 600 dpi
  • Support long page scanning up to 32” (8 mm) for 300 dpi
  • LED light source requires no warm-up time
  • Scans documents (52~105 g/m2) and plastic cards (up to 76mm)
  • Auto power off after inaction for 5 minutes



PaperAir App

Simply download PaperAir app from Google Play or App Store and install it onto your mobile device. PaperAir app lets your mobile device instruct a scan and receive a scan image.

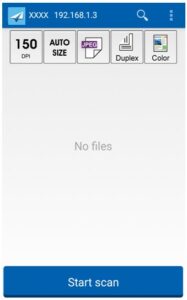

Enable [Wi-Fi] from [Settings] of your wireless computer, smartphone, or tablet and then choose Avision-xxxx to be your network name (SSID). Tap the PaperAir App on the screen to launch the Scan Application. The main window will be displayed.

Check if the default settings meet your requirements. If not, change the scan settings to fit your specific scanning task. Finally, tap the [Start scan] button to start a scan.

Specification

General Specification
Technology

Contact Image Sensor (CIS)

Light Source

LED

Optical Resolution (dpi)

600 x 600 dpi

Memory Size

4MB Flash;64MB SDRAM

Dimensions (WxDxH)

312 x 66 x 49 mm

Weight

< 480g

Interface

USB 2.0 (Type C), Wireless 802.11 b/g/n

Power Consumption

Operation:< 2.5W;Ready:< 0.8W

Acoustical Noise

Operation < 55 dB;Ready < 45 dB

Bundled Software

TWAIN Driver

Power source

battery (USB charge)

Battery Type and Capacity

Li-ion18650, 3.6V/2750mAh

Battery Life(h)

300page

Scan Size
ADF Minimum

A8

ADF Maximum

Legal

ADF capacity

1 page

Paper Weight (Thickness )

52 to 105 g/m2

Scanning Speed
Paper size

A4

B/W @ 300dpi, A4

4 sec/page

Color @ 300dpi, A4

4 sec/page

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
