AM30 series

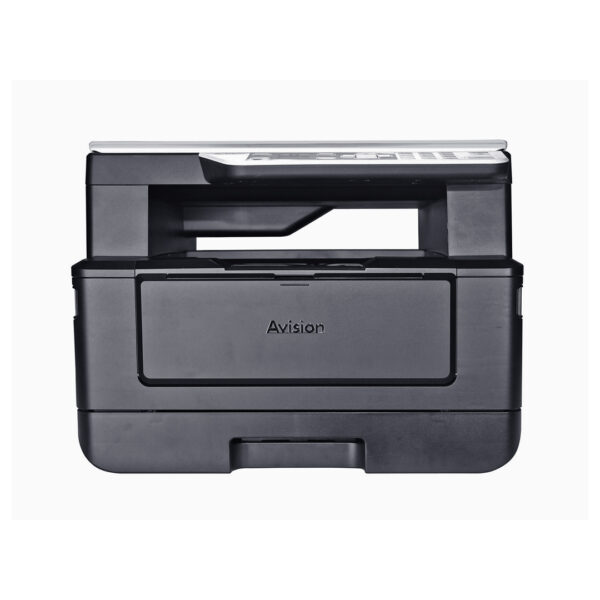

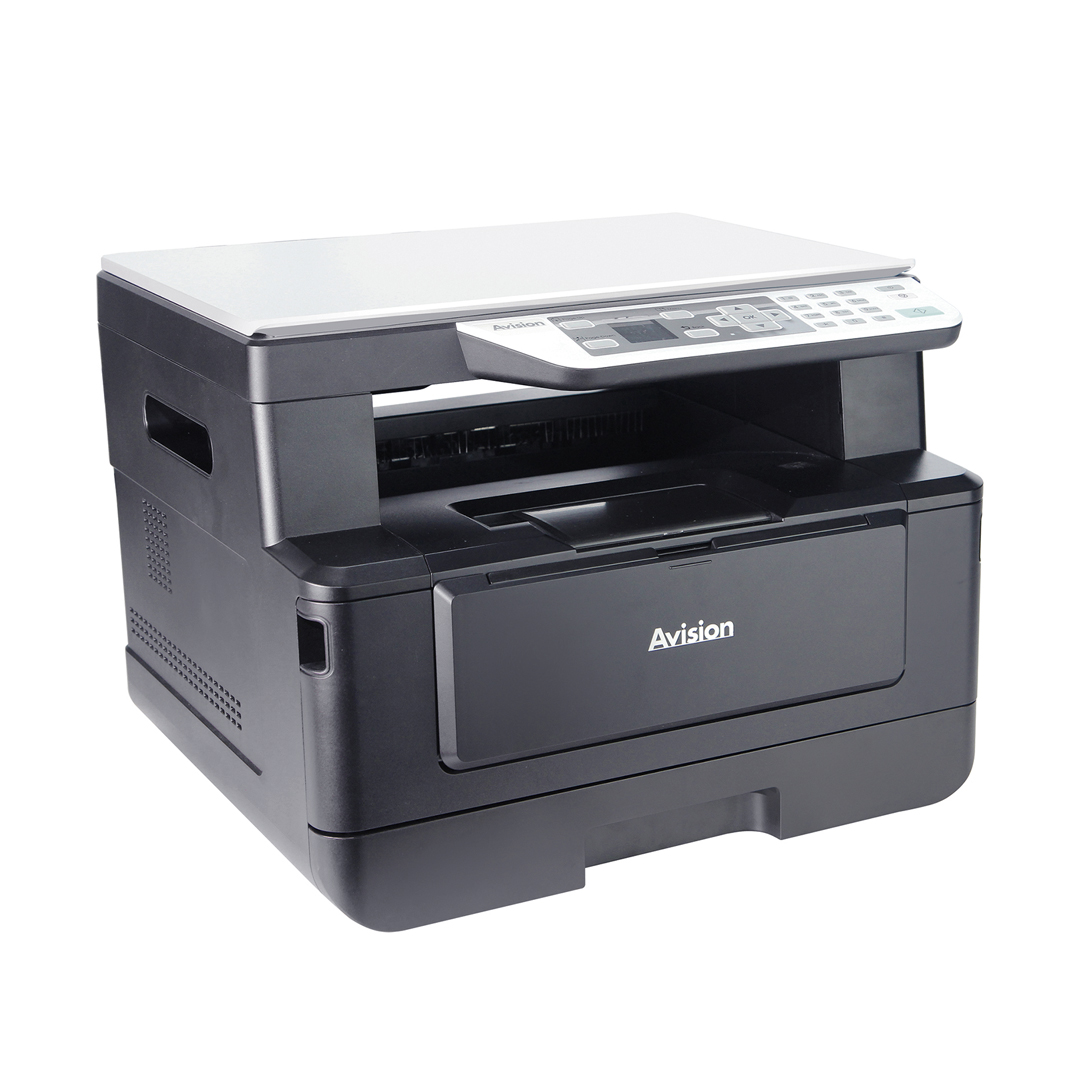

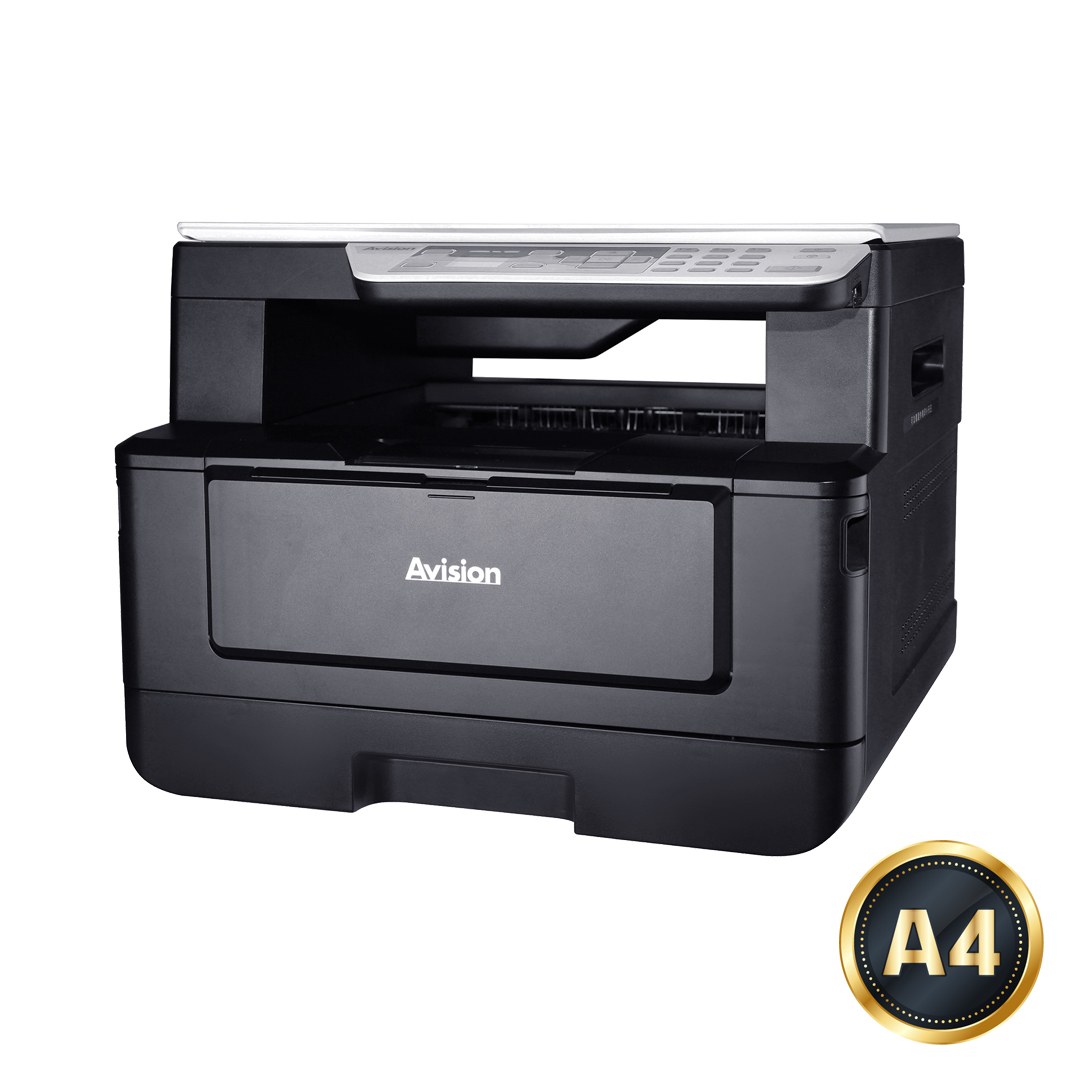

Print, Copy, E-mail, Fax, and Scan with the Avision AM30 series  MFP

We’ve taken the office-critical features of our departmental MFPs and packed them into this ultra-productive LEGAL-size printer. It seamlessly integrates print, scan, e-mail, fax, and copy functionalities. Plus, the product can be connected to the computer through a wired or wireless network. All these features are operated through a clear and large LCD screen to simplify work for busy offices with high-volume of document distribution.

Product Details






▍Copy

The product is designed with various advanced copy features which includes ID card copy, auto rotate to match output paper, paper saver to copy multi-page document onto a single sheet and etc.

▍Print

When the product is connected to a computer through a USB or a network port, it is able to perform local printing or network printing.

▍Fax

With the built-in fax modem (33.6 Kbps Super G3) and an additional telephone line, the product is able to transmit your scanned document to a remote fax machine just like regular fax machine. In addition, a password can be required before incoming faxes can be printed or removed, and a junk fax barrier protects your privacy.

▍Scan-to-USB

Without complex setting, the product allows you to save your scanned image to a removable disk (Flash) through the USB port.

▍Scan-to-email

The scan-to-email feature lets you scan paper-based documents in full color and e-mail them as attachment in PDF, JPEG, or TIFF file format directly from the product.

▍Scan-to-filing

The scan-to-filing feature allows you to scan the documents and save them to a folder of a personal computer or any server in the network including FTP, or CIFS.

▍Clear, & Easy-to-use LCD Screen

Easy to read and navigate, 1.7-inch, bright color LCD screen guides you through even the most complex operations. Simply make a few presses on the control panel, your document can be digitized and distribute within seconds.

▍Remote Device Management through Embedded Web Page

The product provides a convenient way to view the supplies status of printer cartridge, scan count, and copy count to help you maintain the product well. By simply typing the machine’s IP address in the URL field of your browser, the product’s embedded web page will be prompted.



▍Features

  • Duplex Versatility: Two sided printing, and copying
  • Print at up to 30 ppm in black and white
  • First print output time < 11 seconds
  • Scan in color up to 600 dpi optical resolution
  • Full A4 platen glass allows you to scan A4-size document with ease
  • Scan to and print from USB for files on the go
  • 250-sheet standard or optional tray plus 10-sheet multipurpose tray
  • Fax transmission rate up to 33.6 Kbps
  • Remote device management through embedded web page
  •  User-friendly 1.7” FLF LCD screen for easy operation






▎Certification mark

Learn more

Specification

General Specification
Functions

Copy – Print – Scan – Network

CPU

300 MHZ

RAM

128 MB

Storage Flash Memory

16 M

Display

1.7 in. TFT LCD

Paper output

Face Down (Main tray), Face up (Manual tray)

Paper output capacity

150 Pages

Duplex printing unit

Built – in

Duplex print

Paper size : A4;Paper weight : 60 to 105 g/m2

Connectivity

USB 2.0 10 / 100 Base-T Ethernet

Dimensions (WxDxH)

402x380x305mm

Weight

Approximately 10 Kg

Operating Environment

Temperature : 10℃ ~ 32℃; Humidity : 15% ~ 80%

Power Supply

100-120 VAC, 60 Hz or 220-240 VAC, 50/60 Hz

Acoustical Noise

Standby : 40dB;Operating : 58dB

Manual tray
Paper capacity

10 sheets (70 g/m² plain paper )

Paper size

A4, B5, A5, A6, letter, Legal, 76 x 127 mm to 216 x 356 mm

Paper weight

60 to 163 g/m2

Main tray
Paper capacity

250 pages (70 g/m² plain paper )

Paper size

A4, A5, A6, B5, Letter, Legal

Paper weight

60 to 105 g/m2

Features
USB Mass storage support

Yes

Web Utility

Yes

Scanner Function
Technology

Contact Image Sensor (CIS)

Light Source

LED

Scanning Mode

Color Scanning

Document feeding mode

Flatbed

Optical resolution

600 x 600 dpi

Scan resolution

600 / 300 dpi

Grayscale mode

16-bit input 8-bit output

Color mode

48-bit input 24-bit output

File Formats

Color file : JPEG, M-PDF, PDF, TIFF;Gray file : JPEG, M-PDF, PDF, TIFF;B/W file : M-PDF, PDF, TIFF

Scan to USB

Yes

Scan to FTP

Yes

Scan to E-mail

Yes

Scan to CIFS

Yes

Scan Size
Flatbed Maximum

216 x 297 mm

Copier Function
Max scanning size

216 x 297 mm

Min media size

76 X 127 mm

Copy Resolution

600 x 600 dpi

Copy Speed ( 1 to many )

30 cpm ( 1 to N ) 20 cpm ( N to N )

Copy Count

99

Zoom

25 % ~ 400 %

First copy output time (FCOT)

<14s

N-up Copy

2 in 1 / 4 in 1 / ID Card ( N-up Copy )

Copy Mode

Text / Photo / Mix

Collate

Yes

Toner Save mode

Yes

ID Card Copy

Yes

Duplex Copy

Yes

Printer Function
Printing Method

LPH

Printing Speed

30 / 32 ppm ( A4 / Letter )

Maximum media size

Legal

Minimum media size

76 x 127 mm

Resolution

600 x 600 dpi

PDLs/Emulations

GDI

First print output time

<11s

N-up Print

2-in-1, 4-in-1

Scaling

25 ~ 400 %, Fit to Paper

Edge Erase

4.3 mm ( top, bottom, left, right )

Collate

Yes

Duplex Print

Booklet , Calendar

Network Print

Yes

Software
Software Driver Support

Win 10, Win 8, Win 7, Linux (Support X86, X86_64, Ubuntu/Debian), Mac 10.14

Consumables (option)
Toner Cartridge

3000 pages

Drum Unit

12,000 pages

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
