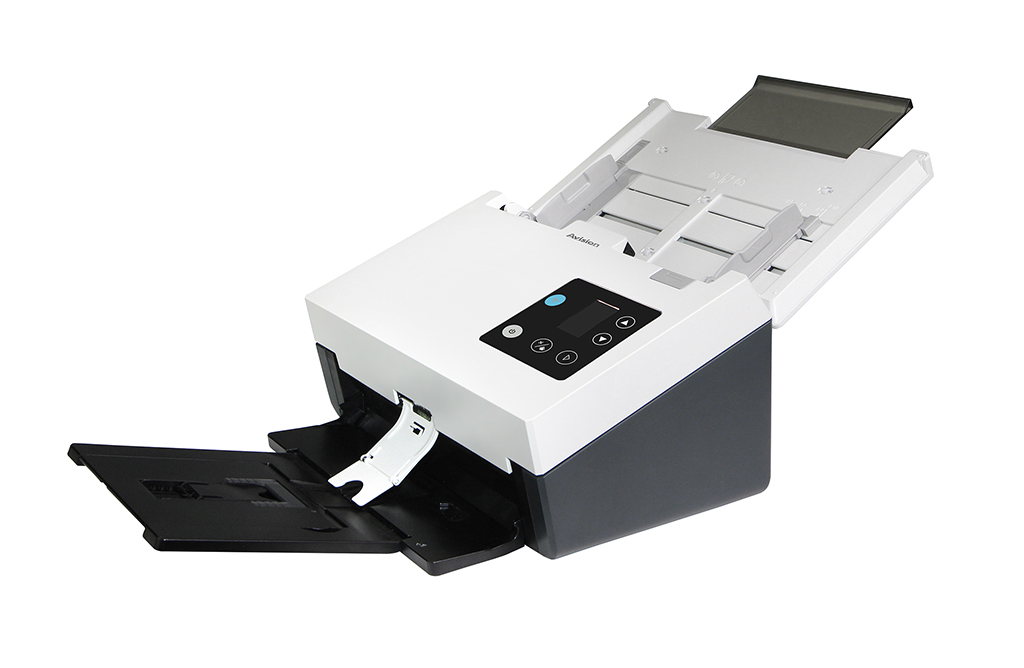

AD345WN

A Fast and Affordable Scanner

The AD345 series are 60 page-per-minute, duplex scanner that are fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock are necessary. Embedded with Avision-developed image processor , the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.

Product Details






▍Convenient mobile scanning

Built-in with a Wi-Fi dongle, the AD345WN can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s MB App.

▍A network document scanner

AD345N and AD345WN with the network port at the back side, Two product allows you to use it as a network scanner.  This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer.

▍Color, and Graphical LCD Display

The AD345 series are easy to use through the LCD display and buttons on the panel. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

▍A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (2” x 2”) to business document (8.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness.

▍Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD345 series delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

▍Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

▍Compact Design to Save Your Space

The AD345 series features a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD345 series can be easily carried and fit on a desk without taking up a lot of space.

▍Powerful Bundled Software Applications

The AD345 series come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort . With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.



▍Features

  • Fast, 60ppm/120ipm scanning in color, grayscale and monochrome (200 dpi)
  • Fast, 45ppm/90ipm scanning in color (300 dpi)
  • Auto crop and deskew a document with the advanced Avision-developed image processing unit to enhance the scanning speed
  • Support form paper up to 8.5 x 14 in.
  • Daily duty cycle up to 10,000 sheets
  • Robust 100-page automatic document feeder (80 g/m2, 20 lb)
  • Reverse roller technology delivers outstanding feeding reliability
  • Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
  • Press and scan to cloud servers via the bundled software Button Manager V2
  • Earth-friendly LED technology
  • Long page scanning:  5540 mm (218”) (300 dpi,color) / 6000 mm (236”) (200 dpi,color)
  • hardware JPEG Compression, Compression TIFF (JPEG(7), CCITT G4, LZW), Compression PDF
  • Auto power off setting




▎Сертификационный знак

Узнать больше

Где купить

Общая спецификация
Технология

Contact Image Sensor (CIS)

Источник света

LED

Режим подачи документов

ADF

Оптическое разрешение (т/д)

1200

Output Resolution (dpi)

1200

Форматы файлов

BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

Полутоновые узоры

Dither and Error Diffusion

Режим оттенков серого

16-bit input 8-bit output

Цветовой режим

48-bit input 24-bit output

Размер памяти

512MB SDRAM

Размеры (ШхГхВ)

Maximum:316 x 680 x 239 mm ( 12.4 x 26.8 x 9.4 in. ), Minimum:316 x 191 x 168 mm ( 12.4 x 7.5 x 6.6 in. )

Вес

4.3 kg ( 9.5 lb. )

Интерфейс

USB3.2 Gen1x1

Network connection

AD345N:RJ-45 Ethernet 10/100/1000 Mb;AD345WN:RJ-45 Ethernet 10/100/1000 Mb, Wi-Fi

Стандарт Wi-Fi

IEEE 802.1b/g/n

Потребляемая мощность

Operation < 38 W;Ready < 6 W;Sleep < 1.8 W;Off < 0.2 W

Акустический шум

Operation < 52 dB;Ready < 25 dB

Рекомендуемый дневной объём

Up to 10,000 sheets

Поддержка ОС

Win 7, Win 8, Win 10

Программное обеспечение в комплекте

TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver

Features
Ультразвуковое обнаружение замятия бумаги

Yes

Long Paper Mode

Up to 200 dpi Color Duplex 240 in. ( 6096 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )

Сканирование карт

Embossed card ( Thickness 1.25 mm )

Scan Size
Минимум АПД

50 x 50 mm

Максимум АПД

216 x 356 mm ( Legal )( 8.5 x 14 in. )

Ёмкость АПД

100 sheets ( A4 : 80 g/m² or 20 lb. )

Плотность бумаги (толщина)

Straight Path : 20 g/m² (single page) ,27 ~413 g/m² ( 7 – 110 lb. )

Размер сканирования
Ч/Б при 200 т.д., A4

Simplex : 60 ppm;Duplex :120 ipm

Ч/Б при 300 т.д., A4

Simplex : 60 ppm;Duplex : 120 ipm

Цветной при 200 т.д., A4

Simplex : 60 ppm;Duplex : 120 ipm

Цветной при 300 т.д., A4

Simplex : 60 ppm;Duplex : 120 ipm

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.

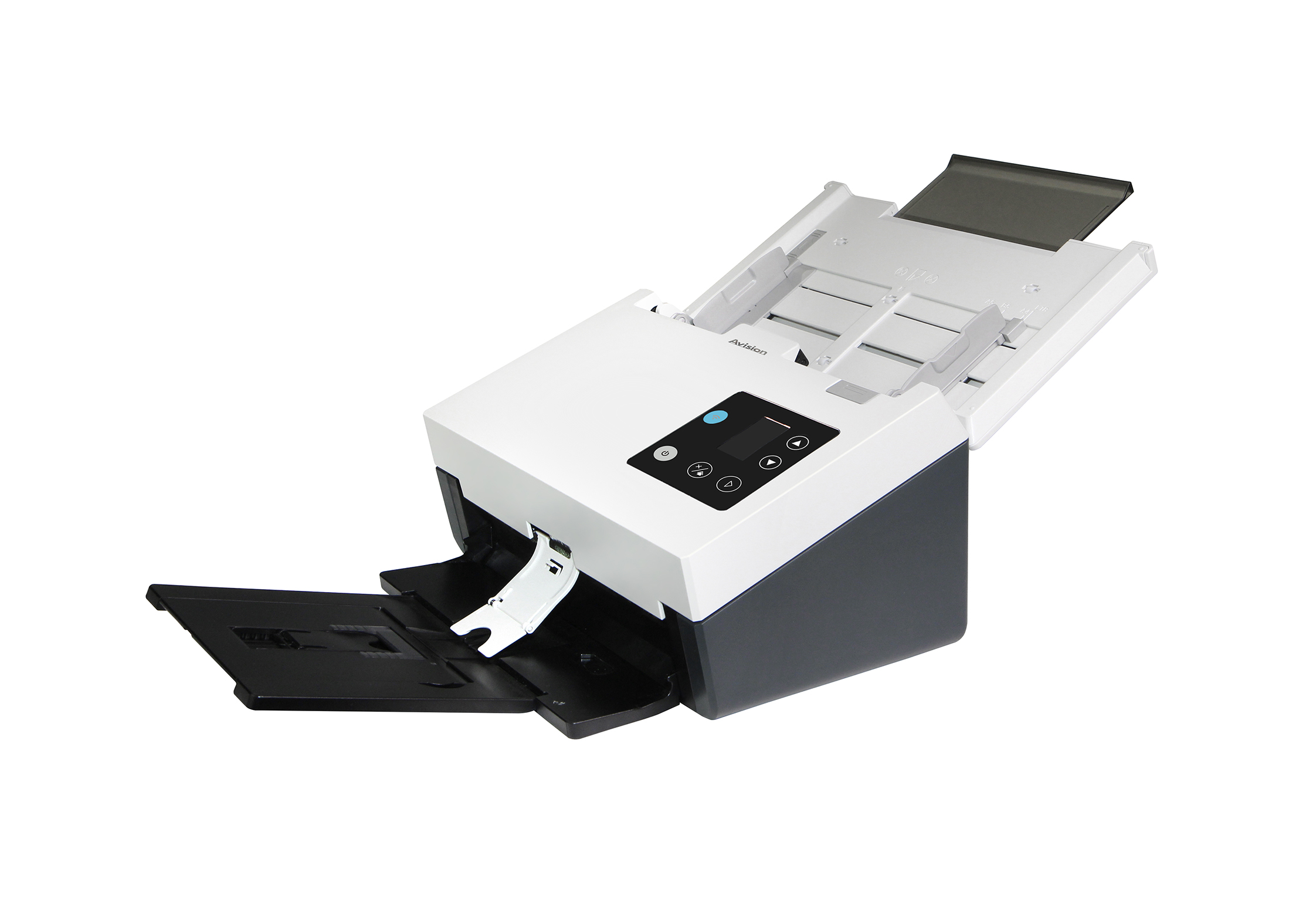

▎Фотографии продуктов
